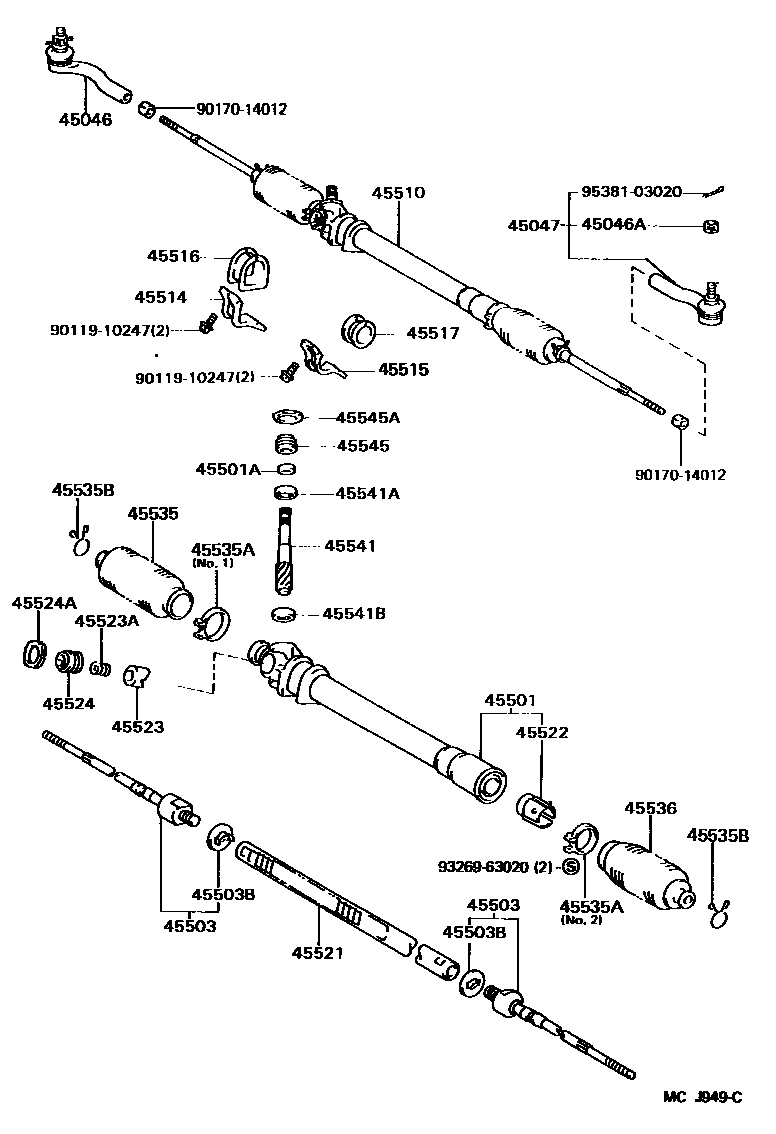

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1���-������� 0004 1���-�������

45046END SUB-ASSY, TIE ROD, RH

main45046-19195iSW20198912-199908

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iSW20198912

45047END SUB-ASSY, TIE ROD, LH

main45047-19075iSW20198912-199908

45501HOUSING SUB-ASSY, STEERING RACK

main45501-17030iSW20..G198912-199112

main45501-17050iSW20..G199112

45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)

main90311-15002iSW20..G198912

45503END SUB-ASSY, STEERING RACK

main45503-19145×2iSW20..GT198912-199908

main45503-19165×2iSW20..G198912-199908

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-12002×2iSW20..GT198912-199908

main90214-14009×2iSW20..G198912-199908

45510GEAR ASSY, STEERING

main45510-17060iSW20..G198912-199112

main45510-17090iSW20..G199112

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-17020iSW20198912

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-17020iSW20198912

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-17020iSW20..G198912-199112

main45516-17030iSW20..GT198912-199112

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-16040iSW20198912

45521RACK, STEERING

main45521-17060iSW20..G198912-199112

main45521-17090iSW20..G199112

45522BUSH, STEERING RACK

main45522-12040iSW20..G199112

main45522-17010iSW20..G198912-199112

sub45522-17020

45523GUIDE, RACK(FOR STEERING GEAR)

main45504-17010iSW20..G199112-199908

main45523-10030iSW20..GT199112-199908

main45523-10040iSW20198912-199112

sub45523-10041

main45523-12040iSW20..G198912-199112

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90501-23097iSW20..GT198912-199908

main90501-26038iSW20..G198912-199112

main90501-32032iSW20..G199112-199908

45524CAP, STEERING RACK GUIDE SPRING

main45524-10030iSW20198912-199112

main45524-16010iSW20..G198912-199112

main45524-17020iSW20199112-199908

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main90179-30002iSW20198912-199311

main90179-36001iSW20..G198912-199112

45535BOOT, STEERING RACK, NO.1

main45535-10050×2iSW20..GT198912-199601

main45535-10051×2iSW20..GT199601-199908

main45535-12011iSW20..G198912-199908

45535ACLAMP(FOR STEERING RACK BOOT)

main90460-48002iSW20..G198912-199908

main90460-49003×2iSW20..GT198912-199908

main90461-10273iSW20..G198912-199908

45535BCLIP(FOR STEERING RACK BOOT)

main90467-18003×2iSW20198912-199908

45536BOOT, STEERING RACK, NO.2

main45536-10070iSW20..G198912

45541PINION, STEERING

main45541-17040iSW20..G198912-199112

main45541-17070iSW20..G199112

45541ABEARING, RADIAL BALL(FOR STEERING PINION UPPER)

main90363-15003iSW20..G198912-199112

main90363-15015iSW20..G199112

45541BBEARING, RADIAL BALL(FOR STEERING PINION LOWER)

main90363-13001iSW20..G198912-199112

main90363-13004iSW20..G199112

45545SCREW, PINION BEARING ADJUSTING

main45545-10010iSW20..G198912

45545ANUT(FOR PINION BEARING ADJUSTING SCREW)

main90179-38001iSW20..G198912

9011910247

main90119-10247

9017014012

main90170-14012

9326963020

main93269-63020

9538103020

main95381-03020

31 parts on this diagram · 4 diagrams in section
