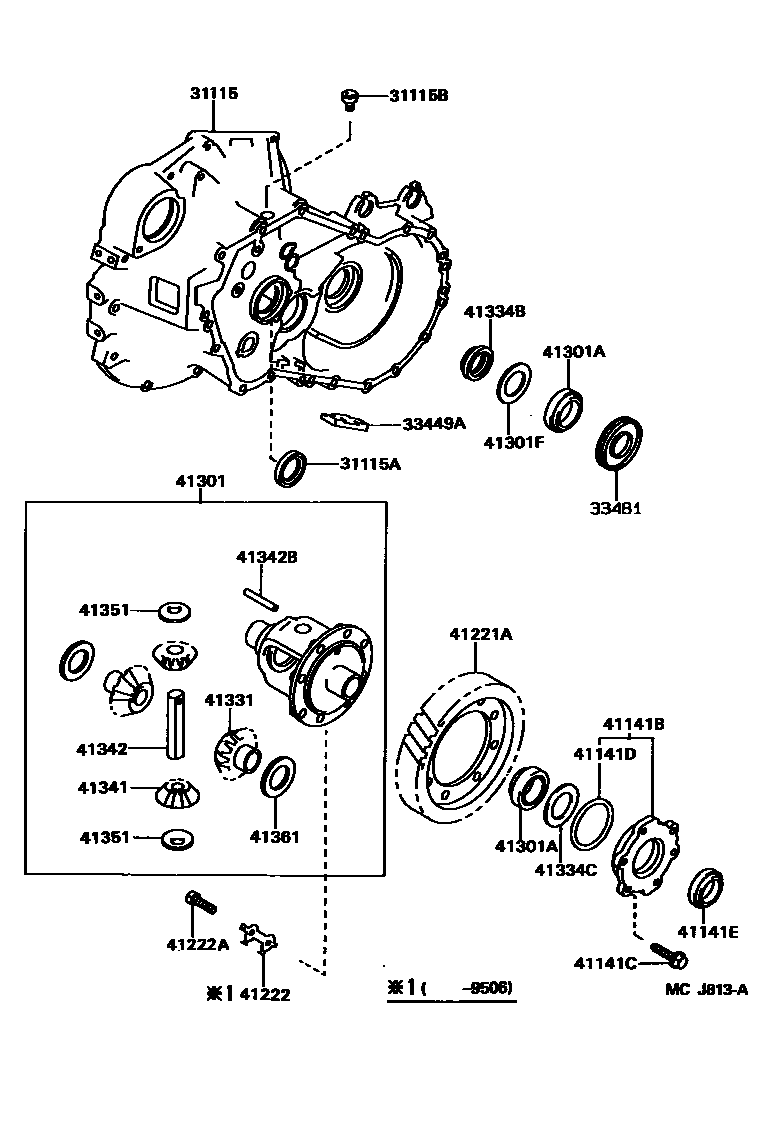

REAR AXLE HOUSING & DIFFERENTIAL

0001 1S54 0002 1S54(���� LSD) 0003 1E153 0004 1E153 0005 1A241E

31115CASE, TRANSAXLE

main31105-32020iSW20..5F..G198912-199004

sub31105-32061

sub33134-32020

sub33326-32020

sub90560-42001

sub90560-48002

main31105-32060iSW20..5F..G199004-199006

sub31105-32061

sub90560-42001

main31105-32061iSW20..5F..G199006-199108

sub31105-32062

sub11356-74030

sub90119-06670

main31105-32062iSW20..5F..G199108-199205

sub31105-33030

sub90389-14043

main31105-32080iSW20..5F..G199704

main31105-33030iSW20..5F..G199205-199704

sub31105-32080

main31115-20020iSW20..GT198912-199106

sub31115-33010

main31115-33010iSW20..GT199106-199309

sub31115-33011

sub31121-20010

main31115-33011iSW20..GT199309-199606

sub31115-33012

main31115-33012iSW20..GT199606

sub31115-33013

31115ASEAL, OIL(FOR TRANSAXLE CASE)

main90311-30002iSW20..5F..G198912-199005

sub90311-30006

main90311-30006iSW20..GT198912-199005

sub90311-30017

31115BPLUG, TIGHT(FOR REAR TRANSAXLE CASE)

main90341-10065iSW20..5F..G198912

33449AMAGNET, TRANSMISSION

main33449-20010iSW20..GT198912

main33449-32010iSW20..5F..G198912-199106

sub33449-32020

main33449-32020iSW20..5F..G199106

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-12100iSW20..GT199112

main33481-17010iSW20..GT198912-199102

main33481-17011iSW20..GT199102-199112

main33481-32010iSW20..5F..G198912-199003

main33481-32060iSW20..5F..G199003

41141BRETAINER, REAR DIFFERENTIAL SIDE BEARING

main41101-32010iSW20..5F..G198912

sub41101-32011

sub90311-35048

41141CBOLT(FOR REAR DIFFERENTIAL SIDE BEARING RETAINER)

main90105-08061iSW20..5F..G198912

sub91511-C0825

41141DRING, O(FOR REAR DIFFERENTIAL SIDE BEARING RETAINER)

main90301-63004iSW20..5F..G198912

41141ESEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)

main90311-35014iSW20..5F..G198912-199005

sub90311-35026

main90311-35019iSW20..5F..G199410-199507

main90311-35026iSW20..5F..G199005-199410

sub90311-35019

main90311-35033iSW20..5F..G199507

41221AGEAR, REAR DIFFERENTIAL RING

main41221-20210iSW20..4FC198912

main41221-20220iSW20..5F..G198912-199005

main41221-20240iSW20..GT198912

main41221-32100iSW20..5F..G199005

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-20030iSW20..4FC198912

main41222-32010iSW20..5F..G198912-199506

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11003iSW20..5F..G198912-199506

main90101-11353iSW20..4FC198912

main90105-11040iSW20..5F..G199506

main90105-12150iSW20..GT199112

main90105-12154iSW20..GT198912-199112

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-20110iSW20..4FC198912-199111

sub41301-20112

main41301-20112iSW20..4FC199111

main41301-32010iSW20..5F..G198912-199003

sub41301-32060

sub33481-32060

sub33481-32070

main41301-32060iSW20..5F..G199003-199902

sub41301-32061

main41301-32061iSW20..5F..G199902

main41302-17012iSW20..GT198912-199102

sub41302-17013

sub33481-17011

main41302-17013iSW20..GT199102-199112

sub41302-20040

main41302-17020iSW20..GT199112

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-40016iSW20..5F..G198912

main90366-40023iSW20..5F..G198912-199508

sub90366-40064

main90366-40064iSW20..5F..G199508

main90366-44001iSW20..4FC198912

main90366-50014iSW20..GT198912

main90366-57001iSW20..GT198912

main90368-40002iSW20..4FC198912

41301FSHIM(FOR REAR DIFFERENTIAL CASE)

main90564-45011iSW20..5F..G198912

main90564-45015iSW20..4FC198912

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-12100iSW20..GT199311

main41331-12100iSW20..GT199112-199311

main41331-17010iSW20..GT198912-199112

main41331-20100iSW20..GT199311

main41331-32010iSW20..G198912

41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90311-35014iSW20..5F..G198912-199005

sub90311-35026

main90311-35019iSW20..4FC198912-199908

main90311-35026iSW20..5F..G199005-199410

sub90311-35019

main90311-35033iSW20..5F..G199507-199908

41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90201-45004iSW20..4FC198912

main90201-45005iSW20..4FC198912

main90201-45006iSW20..4FC198912

main90201-45007iSW20..4FC198912

main90201-45008iSW20..4FC198912

main90201-45009iSW20..4FC198912

main90201-45010iSW20..4FC198912

main90201-45011iSW20..4FC198912

main90201-45012iSW20..4FC198912

main90201-45013iSW20..4FC198912

main90201-45014iSW20..4FC198912

main90201-45015iSW20..4FC198912

main90201-45016iSW20..4FC198912

main90201-45017iSW20..4FC198912

main90201-45018iSW20..4FC198912

main90201-45019iSW20..4FC198912

main90201-45020iSW20..4FC198912

main90201-45021iSW20..4FC198912

main90201-45022iSW20..4FC198912

main90564-45001iSW20..5F..G198912

main90564-45002iSW20..5F..G198912

main90564-45003iSW20..5F..G198912

main90564-45004iSW20..5F..G198912

main90564-45005iSW20..5F..G198912

main90564-45006iSW20..5F..G198912

main90564-45007iSW20..5F..G198912

main90564-45008iSW20..5F..G198912

main90564-45009iSW20..5F..G198912

main90564-45010iSW20..5F..G198912

main90564-45011iSW20..5F..G198912

main90564-45012iSW20..5F..G198912

main90564-45013iSW20..5F..G198912

main90564-45014iSW20..5F..G198912

main90564-45015iSW20..5F..G198912

main90564-45016iSW20..5F..G198912

main90564-45017iSW20..5F..G198912

main90564-45018iSW20..5F..G198912

main90564-45019iSW20..5F..G198912

41341PINION, REAR DIFFERENTIAL

main41341-12050iSW20..GT199112

main41341-20020iSW20..GT198912-199112

main41341-22030iSW20..5F..G199311-199506

sub41039-28010

main41341-30011iSW20..4FC198912-199506

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-12130iSW20..GT199112

main41342-20050iSW20..G198912-199106

sub41342-32020

main41342-32020iSW20..G199106

sub41342-52060

41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)

main90250-06058iSW20..G198912

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-12070iSW20..GT199112

main41351-20010iSW20..GT198912-199112

main41351-32010iSW20..G198912

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-17010iSW20..4FC198912

main41361-17020iSW20..4FC198912

main41361-17030iSW20..4FC198912

main41361-17040iSW20..4FC198912

main41361-17050iSW20..4FC198912

main41361-17060iSW20..4FC198912

main41361-22020iSW20..5F..G198912

main41361-22030iSW20..5F..G198912

main41361-22040iSW20..5F..G198912

main41361-22140iSW20..5F..G198912

main41361-22150iSW20..5F..G198912

main41361-22160iSW20..5F..G198912

main41362-12010iSW20..GT199112

main41362-12020iSW20..GT199112

main41362-12030iSW20..GT199112

main41362-12040iSW20..GT199112

main41362-12050iSW20..GT199112

main41362-12060iSW20..GT199112

main41362-12070iSW20..GT199112

main41362-12080iSW20..GT199112

main41362-12090iSW20..GT199112

main41362-12100iSW20..GT199112

main41362-12110iSW20..GT199112

main41362-17010iSW20..GT198912-199112

main41362-17020iSW20..GT198912-199112

main41362-17030iSW20..GT198912-199112

main41362-17040iSW20..GT198912-199112

main41362-17050iSW20..GT198912-199112

main41362-17060iSW20..GT198912-199112

main41362-17070iSW20..GT198912-199112

23 parts on this diagram · 5 diagrams in section
