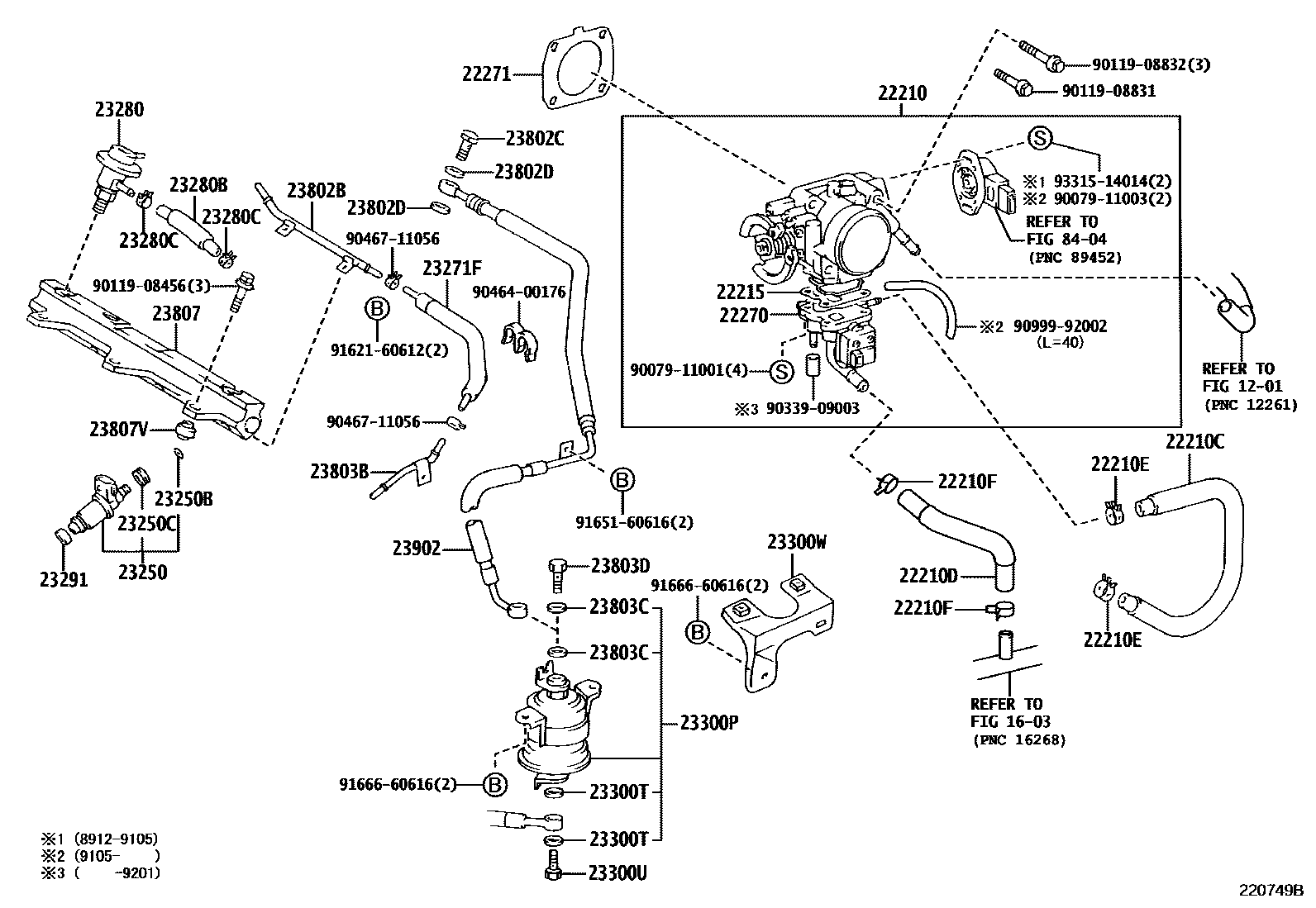

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1��(������ ����-�) 0007 1��(������ ����-�) 0008 1

1201

1603

22210BODY ASSY, THROTTLE

main22210-74380i3SGE..SW20..5F198912-199105

sub22210-74730

main22210-74390i3SGE..SW20..4FC198912-199105

sub22210-74680

main22210-74480i3SGTE..SW20198912-199112

main22210-74680i3SGE..SW20..4FC199105-199112

main22210-74730i3SGE..SW20..5F199105-199112

main22210-74740i3SGE..SW20..5F199112-199311

main22210-74760i3SGTE..SW20199112-199311

main22210-74840i3SGE..SW20..4FC199112-199311

main22210-7A060i3SGE..SW20199311-199712

main22210-7A080i3SGTE..SW20199311

main22210-7A680i3SGE..SW20199712

22210CHOSE, WATER BY-PASS, NO.1

main16264-88361i3SGE..SW20198912-199311

main16264-88560i3SGE..SW20199712

main16267-88460i3SGE..SW20199311-199712

22210DHOSE, WATER BY-PASS, NO.2

main16264-88460i3SGE..SW20199311-199712

main16267-88361i3SGE..SW20198912-199311

main16267-88560i3SGE..SW20199712

22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

main90467-13050i3SGE..SW20198912-199311

sub96135-51300

main90467-13128i3SGE..SW20199311

22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)

main90467-13050i3SGE..SW20198912-199311

sub96135-51300

main90467-13128i3SGE..SW20199311

22215GASKET, THROTTLE BODY COVER

main22215-74380i3SGTE..SW20198912-199712

main22215-7A680i3SGE..SW20199712

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-74060i3SGE..SW20..5F198912-199112

main22270-74070i3SGE..SW20..4FC198912-199311

main22270-74080i3SGTE..SW20198912-199311

main22270-74210i3SGE..SW20199311-199712

main22270-74230i3SGTE..SW20199311

main22270-74370i3SGE..SW20199712

22271GASKET, THROTTLE BODY

main22271-74050i3SGE..SW20198912-199311

main22271-88381i3SGTE..SW20198912-199311

main22271-88460i3SGE..SW20199311-199604

sub22271-88461

main22271-88461i3SGE..SW20199604-199712

main22271-88480i3SGTE..SW20199311

main22271-88560i3SGE..SW20199712

23250INJECTOR ASSY, FUEL

main23209-74080i3SGE..SW20198912-199311

main23209-74160i3SGE..SW20199311-199712

main23209-74190i3SGE..SW20199712

main23209-79015i3SGTE..SW20198912-199311

main23209-79065i3SGTE..SW20199311

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i3SGE..SW20198912-199812

main90301-07024i3SGE..SW20199812

main90301-14006i3SGTE..SW20198912

main90301-17007i3SGTE..SW20198912

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i3SGE..SW20198912-199712

23271FHOSE, FUEL

main23271-74260i3SGE..SW20198912-199311

23280REGULATOR ASSY, FUEL PRESSURE

main23280-74050i3SGE..SW20198912-199311

main23280-74070i3SGTE..SW20198912-199311

main23280-74110i3SGE..SW20199311

sub23280-74120

main23280-74130i3SGTE..SW20199311

23280BHOSE, FUEL PRESSURE REGULATOR RETURN

main23271-88380i3SGTE..SW20198912-199311

main23271-88461i3SGE..SW20199311-199712

main23271-88480i3SGTE..SW20199311

main23271-88561i3SGE..SW20199712

main90447-12051i3SGE..SW20198912-199311

23280CCLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE)

main90467-11009i3SGE..SW20198912-199311

sub96135-51100

main90467-11065i3SG#..SW20198912-199311

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i3SGE..SW20198912

main23291-75010i3SGTE..SW20198912-199311

main23291-75010i3SGTE..SW20199311

main23291-88480i3SGTE..SW20199311

23300PFILTER, FUEL(FOR EFI)

main23300-79265i3SG#..SW20198912

23300TGASKET(FOR FUEL FILTER)

main90430-12005i3SG#..SW20198912-199108

main90430-12026i3SG#..SW20199108

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i3SG#..SW20198912-199608

main96341-11200i3SG#..SW20199608

23300WBRACKET, FUEL FILTER

main23264-74040i3SG#..SW20198912-199112

main23264-74050i3SG#..SW20199112

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-74040i3SGE..SW20198912-199311

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-12097i3SG#..SW20198912-199606

main96341-11200i3SG#..SW20199606

23802DGASKET(FOR FUEL PIPE NO.2)

main23232-41081i3SGE..SW20199712

main90430-12005i3SG#..SW20198912-199108

main90430-12026i3SGTE..SW20199106-199712

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-74030i3SGE..SW20198912-199311

23803CGASKET(NOZZLE LEKAGE PIPE NO.3)

main90430-12005i3SG#..SW20198912-199108

main90430-12026i3SG#..SW20199108

23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

main90401-12097i3SG#..SW20198912-199608

main96341-11200i3SG#..SW20199608

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-74050i3SGE..SW20198912-199311

main23807-88480i3SGTE..SW20199311

main23814-88382i3SGTE..SW20198912-199311

main23814-88460i3SGE..SW20199311-199712

main23814-88560i3SGE..SW20199712

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08024i3SGE..SW20198912-199311

main90561-08032i3SGTE..SW20198912-199311

main90561-08050i3SGTE..SW20199311

main90561-08051i3SGE..SW20199311

23902TUBE SUB-ASSY, FUEL

main23902-88360i3SGE..SW20198912-199311

main23902-88380i3SGTE..SW20198912-199311

main23902-88461i3SGE..SW20199311-199712

main23902-88480i3SGTE..SW20199311

8404

9007911001

main90079-11001

9007911003

main90079-11003

9011908456

main90119-08456

9011908831

main90119-08831

9011908832

main90119-08832

9033909003

main90339-09003

9046400176

main90464-00176

9046711056

main90467-11056

9099992002

main90999-92002

9162160612

main91621-60612

9165160616

main91651-60616

9166660616

main91666-60616

9331514014

main93315-14014

45 parts on this diagram · 8 diagrams in section
