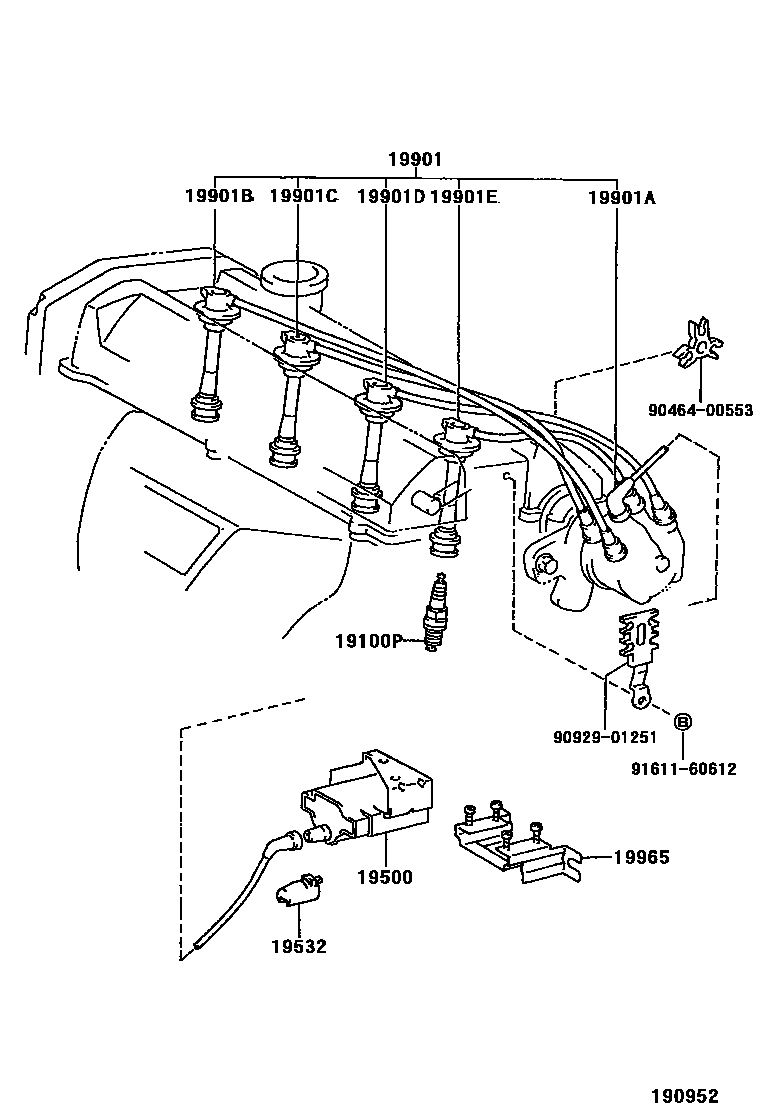

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

19100PPLUG, SPARK

main90919-01178i3SGE..SW20199712

sub90919-01210

main90919-01179i3SGE..SW20199712

main90919-01180i3SGTE..SW20198912-199712

sub90919-01231

main90919-01181i3SG#..SW20198912-199712

19500COIL ASSY, IGNITION

main90919-02185i3SG#..SW20198912-199112

main90919-02197i3SG#..SW20199112-199712

main90919-02227i3SGE..SW20199712

sub90919-02275

19532HOLDER, RESISTIVE CODE, NO.2

main19532-74010i3SG#..SW20198912-199112

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21484i3SGTE..SW20198912-199112

main90919-21494i3SGE..SW20198912-199112

main90919-21536i3SGTE..SW20199112-199311

main90919-21537i3SGE..SW20199112-199311

main90919-21580i3SGE..SW20199311-199712

main90919-21581i3SGTE..SW20199311

19901ACORD, COIL RESISTIVE

main19590-74060i3SGE..SW20198912-199112

sub19590-74070

main19590-74070i3SGTE..SW20198912-199112

main19590-74170i3SG#..SW20199112-199712

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15046i3SGE..SW20198912-199112

main90919-15120i3SGTE..SW20198912-199112

main90919-15262i3SGE..SW20199112-199311

main90919-15304i3SGTE..SW20199112-199311

main90919-15392i3SGTE..SW20199311

main90919-15396i3SGE..SW20199311-199712

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15047i3SGE..SW20198912-199112

main90919-15121i3SGTE..SW20198912-199112

main90919-15263i3SGE..SW20199112-199311

main90919-15305i3SGTE..SW20199112-199311

main90919-15393i3SGTE..SW20199311

main90919-15397i3SGE..SW20199311-199712

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15048i3SGE..SW20198912-199112

main90919-15122i3SGTE..SW20198912-199112

main90919-15264i3SGE..SW20199112-199311

main90919-15306i3SGTE..SW20199112-199311

main90919-15394i3SGTE..SW20199311

main90919-15398i3SGE..SW20199311-199712

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15049i3SGE..SW20198912-199112

main90919-15123i3SGTE..SW20198912-199112

main90919-15265i3SGE..SW20199112-199311

main90919-15307i3SGTE..SW20199112-199311

main90919-15395i3SGTE..SW20199311

main90919-15399i3SGE..SW20199311-199712

19965BAND, IGNITION COIL, NO.1

main90919-03112i3SG#..SW20198912-199311

9046400553

main90464-00553

9092901251

main90929-01251

9161160612

main91611-60612

13 parts on this diagram · 7 diagrams in section
