AIR CLEANER

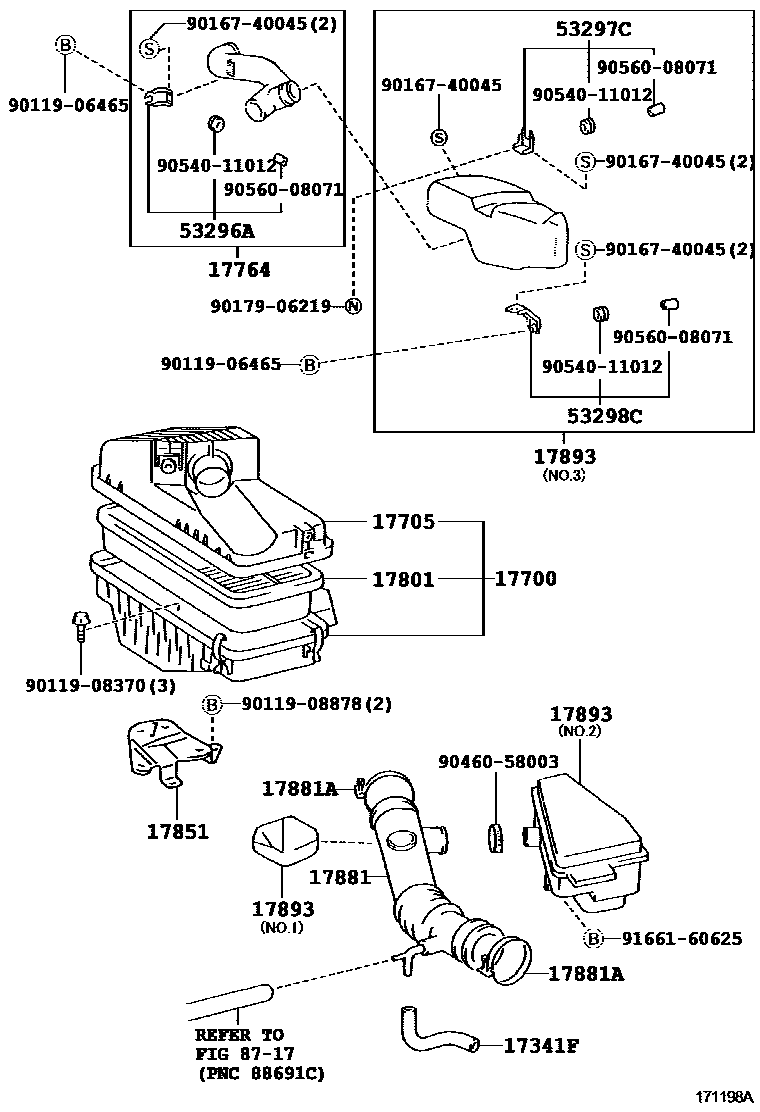

Parts diagram

17341FHOSE, AIR, NO.1

main17341-74170i198912-199712

main17341-74180i198912-199311

main17341-74600i199311

17700CLEANER ASSY, AIR

main17080-74010i199712

main17700-74300i198912-199311

main17700-74310i198912-199311

main17700-74520i199311-199712

main17700-74530i199311

17705CAP SUB-ASSY, AIR CLEANER

main17705-74100×2i198912-199112

main17705-74200i198912-199311

main17705-74360i199311-199712

main17705-74370i199311

main17705-74500i199712

17764DUCT, AIR CLEANER

main52811-17030i198912-199311

main52811-17040i199311

main52811-17050i199311-199712

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-74020i198912-199712

main17801-74060i199712

17851BRACKET, AIR CLEANER SUPPORT

main17851-74020i198912

17881HOSE, AIR CLEANER, NO.1

main17659-88381i199112-199311

main17881-74320i198912-199311

main17881-74330i199112-199201

main17881-74550i199311-199712

main17881-74560i199311-199405

main17881-74630i199405

main17881-7A020i199712

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-67004×2i199112

main96111-10750×2i198912-199311

main96111-10800×2i198912

main96111-10880×2i199712

17893RESONATOR, INTAKE AIR

main17805-74060i198912-199712

main17893-74110i198912-199712

main17893-74120i199311

53296ARETAINER, COOL AIR INTAKE DUCT

main53296-17040i198912

53297CRETAINER, COOL AIR INTAKE DUCT, NO.2

main53297-17020i198912

53298CRETAINER, COOL AIR INTAKE DUCT, NO.3

main53298-17020i198912

8717

9011906465

main90119-06465

9011908370

main90119-08370

9011908878

main90119-08878

9016740045

main90167-40045

9017906219

main90179-06219

9046058003

main90460-58003

9054011012

main90540-11012

9056008071

main90560-08071

9166160625

main91661-60625

22 parts on this diagram · 6 diagrams in section
