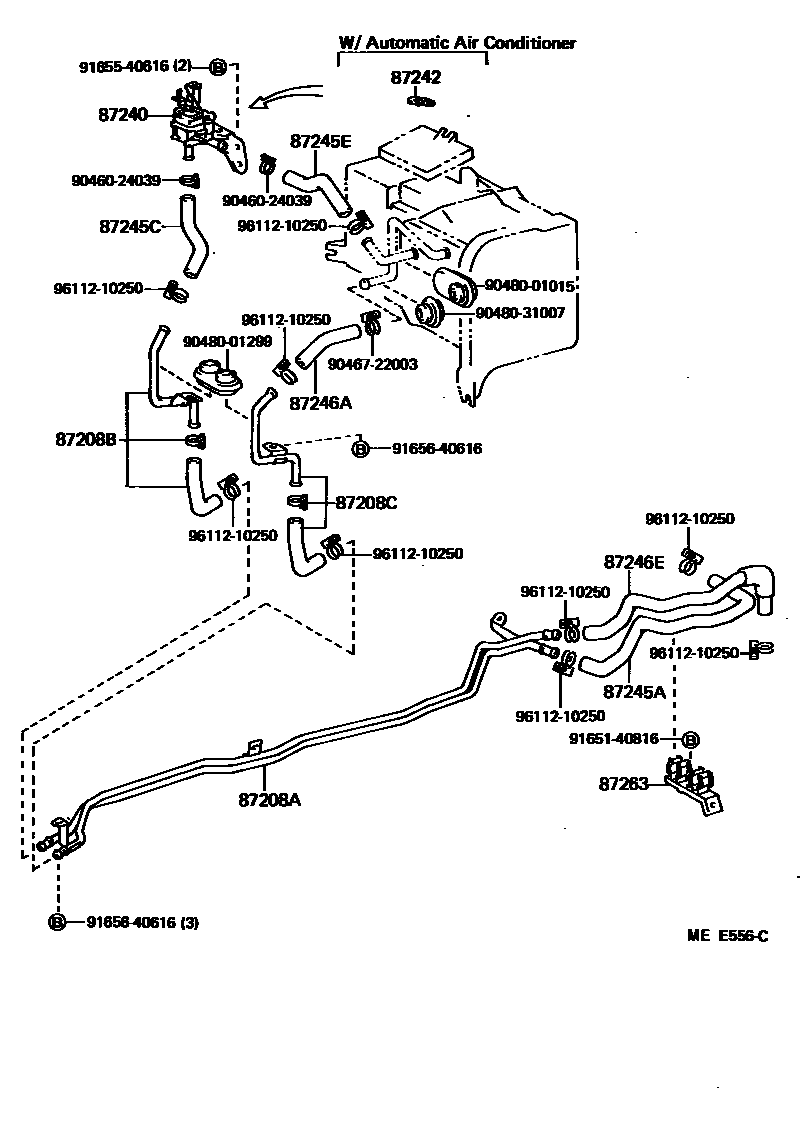

HEATING & AIR CONDITIONING - WATER PIPING

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-17030iAW1#198406-198710

sub87208-17031

main87208-17031iAW1#198710-198912

87208BPIPE SUB-ASSY, HEATER WATER, B

main87208-17010iAW1#198406-198912

87208CPIPE SUB-ASSY, HEATER WATER, C

main87208-17020iAW1#198406-198912

87240VALVE ASSY, HEATER WATER

main87240-17010iAW1#198406-198501

sub87240-17011

main87240-17011iAW1#198501-198608

main87240-17050iAW1#198608-198912

87242LEVER, WATER VALVE

main88892-17020iAW11198406-198501

87245AHOSE, HEATER WATER, INLET A

main87245-17070iAW11198406-198608

sub87245-17071

main87245-17071iAW11..TWC198608-198704

sub87245-17072

main87245-17072iAW11..TWC198704-198912

main87245-17120iAW10198406-198912

main87245-17130iAW11..SPC198608-198912

87245CHOSE, HEATER WATER ,INLET C

main87245-17010iAW1#198406-198912

87245EHOSE, HEATER WATER, INLET E

main87245-17020iAW1#198406-198912

87246AHOSE, HEATER WATER, OUTLET A

main87245-17030iAW1#198406-198912

87246EHOSE, HEATER WATER, OUTLET E

main87245-17080iAW10198406-198912

main87245-17090iAW11198406-198608

sub87245-17091

main87245-17091iAW11..TWC198608-198704

sub87245-17092

main87245-17092iAW11..TWC198704-198912

main87245-17140iAW11..SPC198608-198912

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-17010iAW1#198406-198410

sub87263-17011

main87263-17011iAW1#..CBR,TWC198410-198912

main87263-17040iAW11..5F..SPC198608-198912

9046024039

main90460-24039

9046722003

main90467-22003

9048001015

main90480-01015

9048001299

main90480-01299

9048031007

main90480-31007

9165140816

main91651-40816

9165540616

main91655-40616

9165640616

main91656-40616

9611210250

main96112-10250

20 parts on this diagram · 1 diagram in section
