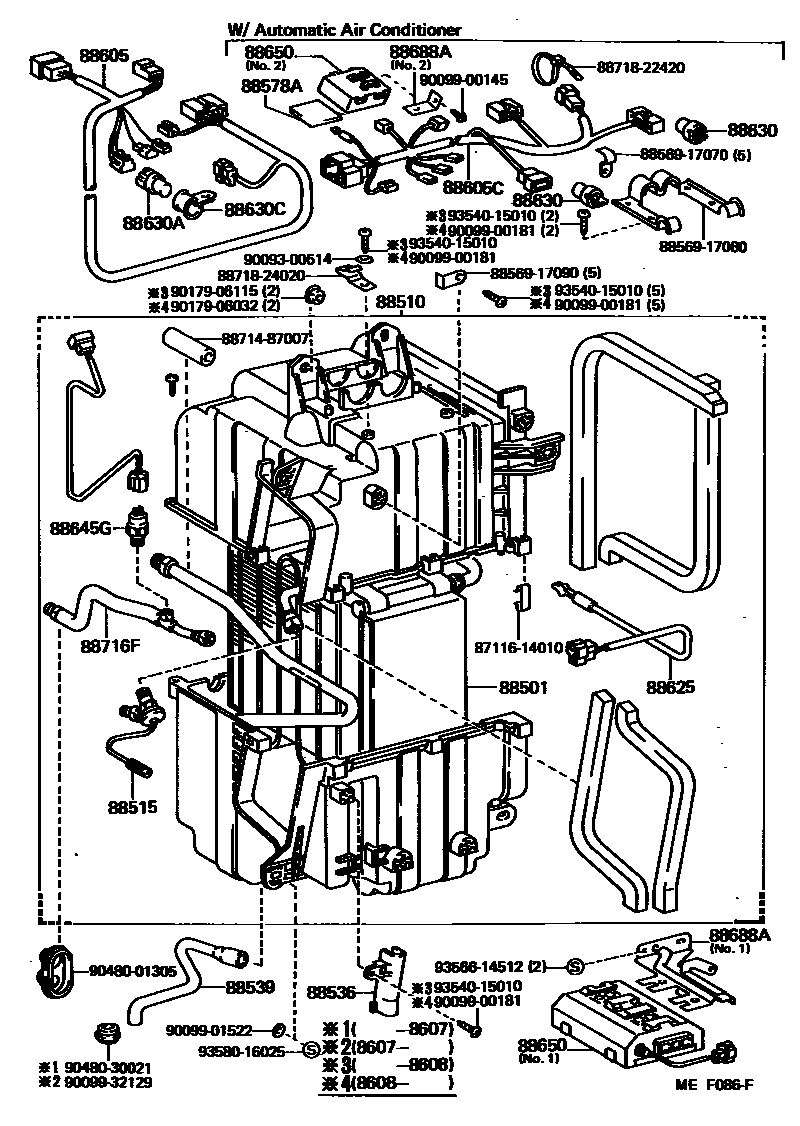

HEATING & AIR CONDITIONING - COOLER UNIT

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-17010iAW1#198406-198601

sub88501-17011

main88501-17011iAW1#198601-198912

88510UNIT ASSY, COOLER

main88510-17030iAW1#198406-198411

main88510-17031iAW1#198411-198912

88515VALVE, COOLER EXPANSION

main88515-16031iAW1#198406-198912

88536BRACKET, COOLING UNIT, NO.1

main88536-17010iAW10198406-198912

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-17010iAW1#198406-198912

88578APACKING, COOLER STABILIZER AMPLIFIER

main88578-17030iAW11198406-198912

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-17010iAW11198406-198608

W/*AAC

main88605-17040iAW10198406-198608

main88605-17050iAW11..4FC198406-198608

main88605-17060iAW11..5F198411-198608

main88605-17070iAW11..5F198411-198608

W/*AAC

main88605-17150iAW11..5F..TWC198803-198912

main88605-17150iAW11..5F..TWC198608-198803

W/*AAC

main88605-17170iAW11..5F..TWC198608-198912

main88605-17180iAW11..4FC..TWC198608-198912

main88605-17210iAW11..4FC..TWC198803-198912

main88605-17210iAW11..4FC..TWC198608-198803

W/*AAC

main88605-17220iAW10198608-198912

main88605-17230iAW11..SPC198608-198912

main88605-17250iAW11..SPC198803-198912

main88605-17250iAW11..SPC198608-198803

W/*AAC

88605CHARNESS SUB-ASSY, COOLER WIRING, NO.2

main88605-17020iAW11198406-198608

main88605-17140iAW11198608-198912

88625THERMISTOR, COOLER, NO.1

main88625-12070iAW1#198406-198912

88630RELAY ASSY, COOLER

main90987-02004iAW11198406-198912

88630ARELAY ASSY, COOLER

main90987-03001iAW11..4FC..SPC198411-198912

88630CBRACKET, COOLER RELAY

main88718-20430iAW11..4FC..SPC198411-198912

88645GSWITCH, PRESSURE

main88645-10020iAW10198607-198912

main88645-12020iAW1#198406-198607

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-17010iAW11198406-198608

NO.1

main88650-17020iAW11198406-198608

NO.2

main88650-17030iAW10198406-198608

NO.1

main88650-17040iAW10198608-198912

NO.1

main88650-17050iAW11..TWC198803-198912

main88650-17050iAW11..TWC198608-198803

NO.1

main88650-17060iAW11..SPC198608-198803

NO.1

main88650-17060iAW11..SPC198803-198912

main88650-17090iAW11198608-198912

NO.2

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-17130iAW10198803-198912

main88688-17130iAW1#198406-198803

NO.1

main88688-17140iAW11198406-198608

NO.2

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-17050iAW11..5F..SPC198406-198912

8711614010SPRING, HEATER CASE FASTENING

main87116-14010

8856917060CLAMP (FOR COOLER RELAY)

main88569-17060

8856917070CLAMP (FOR COOLER RELAY)

main88569-17070

8856917090CLAMP (FOR COOLER RELAY)

main88569-17090

8871487007HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-87007

8871822420PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22420

8871824020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-24020

9009300514

main90093-00514

9009900145

main90099-00145

9009900181

main90099-00181

9009901522

main90099-01522

9009932129

main90099-32129

9017906032

main90179-06032

9017906115

main90179-06115

9048001305

main90480-01305

9048030021

main90480-30021

9354015010

main93540-15010

9356614512

main93566-14512

9358016025

main93580-16025

35 parts on this diagram · 1 diagram in section
