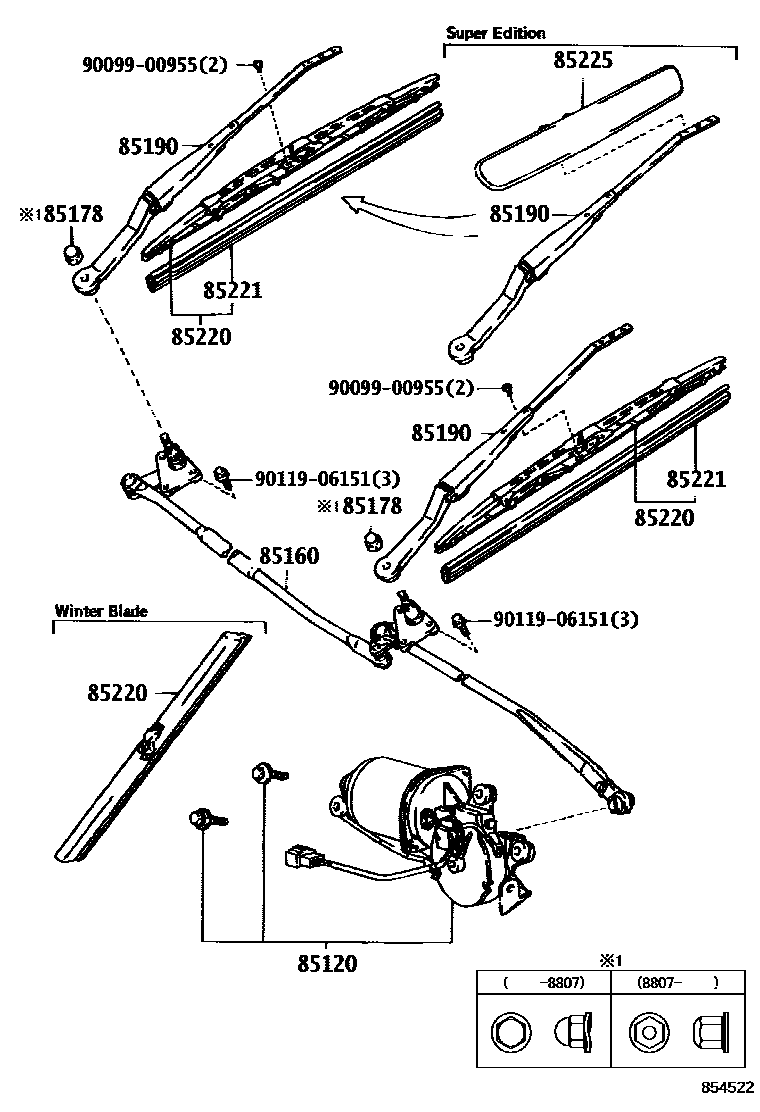

WINDSHIELD WIPER

85120MOTOR AND BRACKET ASSY, WINDSHIELD WIPER

main85120-17010iAW1#198406-198904

sub85120-17070

main85120-17040iAW1#198506-198508

COLD SPEC

main85120-17040iAW1#198808-198912

main85120-17050iAW1#198508-198803

COLD SPEC

sub85120-17040

main85120-17050iAW1#198803-198808

sub85120-17040

main85120-17070iAW1#198904-198912

sub85120-17040

85160LINK ASSY, WINDSHIELD WIPER

main85160-17010iAW1#198406-198912

sub85160-17060

main85160-17060iAW1#198808-198912

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08029iAW1#198406-198506

main90176-08033iAW1#198506-198807

main90176-08040iAW1#198807-198912

sub90176-08051

85190ARM ASSY, WINDSHIELD WIPER

main85190-17010iAW1#198406-198608

RH

sub85190-17011

main85190-17011iAW1#198608-198803

RH

main85190-17011iAW1#198803-198912

main85190-17060iAW1#198901-198912

main85210-17010iAW1#198406-198608

LH

sub85210-17011

main85210-17011iAW1#198608-198803

LH

main85210-17011iAW1#198803-198912

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12620iAW1#198606-198803

WINTER BLADE

sub85291-12010

main85220-12620iAW1#198803-198912

sub85291-12010

main85220-16320iAW1#198406-198803

LH

sub85220-16321

main85220-16320iAW1#198803-198912

sub85220-16321

main85220-16350iAW1#198803-198912

main85220-16350iAW1#198406-198803

RH

main85220-24040iAW1#198406-198606

WINTER BLADE

sub85291-24010

85221BLADE, WINDSHIELD WIPER

main85221-30120iAW1#198406-198912

sub85221-40040

85225WING, WIPER BLADE

main85225-17050iAW1#198901-198912

SUPER EDITION

9009900955

main90099-00955

9011906151

main90119-06151

9 parts on this diagram · 1 diagram in section
