ARMREST & VISOR

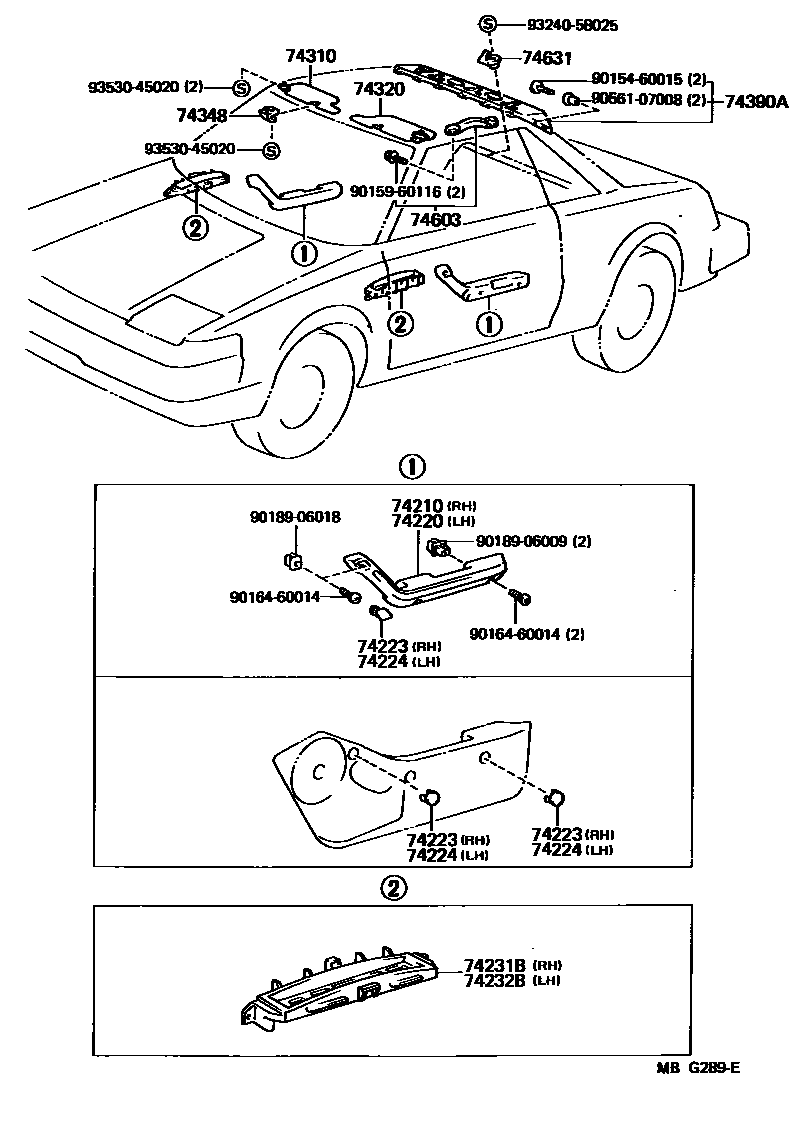

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-32010-01i198406-198608
BLACK,BLACK
74220ARMREST ASSY, FRONT, LH
main74220-32010-01i198406-198608
BLACK,BLACK
74223CAP, DOOR ARMREST, RH
main74223-20010-01i198406-198608
BLACK,BLACK
sub74223-20010
main74617-17010-01i198406-198608
W/*MT,BLACK,BLACK
74224CAP, DOOR ARMREST, LH
main74224-20010-01i198406-198608
BLACK,BLACK
sub74224-20010
main74617-17010-01i198406-198608
W/*MT,BLACK,BLACK
74231BPANEL, DOOR ARMREST BASE, RH
main74231-17010-01i198406-198608
BLACK,BLACK
main74231-17030-01i198608-198803
W/*PW,BLACK,BLACK
sub74231-17031
main74231-17030-04i198709-198803
W/*PW,BLUE,DARK BLUE
sub74231-17031
main74231-17031-04i198803-198912
DARK BLUE,TRIM8#
sub74231-17031
main74231-17031-11i198803-198912
BLACK,BLACK,TRIM2#
sub74231-17031
74232BPANEL, DOOR ARMREST BASE, LH
main74232-17010-01i198406-198608
BLACK,BLACK
main74232-17030-01i198608-198803
W/*PW,BLACK,BLACK
sub74232-17031
main74232-17030-04i198709-198803
W/*PW,BLUE,DARK BLUE
sub74232-17031
main74232-17031-01i198803-198808
BLACK,TRIM2#
sub74232-17031
main74232-17031-04i198803-198912
DARK BLUE,TRIM8#
sub74232-17031
main74232-17031-11i198808-198912
BLACK,TRIM2#
sub74232-17031
74310VISOR ASSY, RH
main74310-17010-03i198406-198506
LIGHT GRAY,LIGHT GRAY
main74310-17011-03i198506-198608
LIGHT GRAY,LIGHT GRAY
main74310-17040-03i198406-198506
W/REMOVABLE ROOF,LIGHT GRAY,LIGHT GRAY
main74310-17041-03i198506-198608
W/REMOVABLE ROOF,LIGHT GRAY,LIGHT GRAY
main74310-17070-01i198608-198802
BLACK,BLACK
sub74310-17071
main74310-17070-04i198709-198802
BLUE,DARK BLUE
sub74310-17071
main74310-17071-01i198803-198912
BLACK,TRIM2#
main74310-17071-01i198802-198803
BLACK,BLACK
main74310-17071-04i198802-198803
BLUE,DARK BLUE
main74310-17071-04i198803-198912
DARK BLUE,TRIM8#
main74310-17120-01i198608-198802
BLACK,BLACK
sub74310-17121
main74310-17120-04i198709-198802
BLUE,DARK BLUE
sub74310-17121
main74310-17121-01i198802-198803
BLACK,BLACK
main74310-17121-01i198803-198912
BLACK,TRIM2#
main74310-17121-04i198802-198803
BLUE,DARK BLUE
main74310-17121-04i198803-198912
DARK BLUE,TRIM8#
74320VISOR ASSY, LH
main74320-17010-01i198608-198802
BLACK,BLACK
sub74320-17011
main74320-17010-04i198709-198802
BLUE,DARK BLUE
sub74320-17011
main74320-17011-01i198808-198912
BLACK,TRIM2#
main74320-17011-01i198802-198803
BLACK,BLACK
main74320-17011-04i198802-198803
BLUE,DARK BLUE
main74320-17011-04i198808-198912
DARK BLUE,TRIM8#
main74320-17030-03i198406-198506
LIGHT GRAY,LIGHT GRAY
main74320-17031-03i198506-198608
LIGHT GRAY,LIGHT GRAY
74348HOLDER, VISOR
main74348-17010-01i198608-198803
BLACK,BLACK
sub74348-12020
main74348-17010-01i198803-198808
BLACK,TRIM2#
sub74348-12020
main74348-17010-04i198709-198803
BLUE,DARK BLUE
sub74348-12020
main74348-17010-04i198803-198912
DARK BLUE,TRIM8#
sub74348-12020
main74348-17010-11i198808-198912
BLACK,TRIM2#
sub74348-12020
main74348-32010-03i198406-198608
LIGHT GRAY,LIGHT GRAY
sub74348-17010
sub74348-12020
sub74348-32010
74390AVISOR ASSY, REAR, OUTER
main74390-17010i198808-198912
sub74390-19035
main74390-17020i198601-198608
BLACK LIMITED
main74390-17030i198801-198803
SUPER EDITION
main74390-17031i198901-198902
sub74390-19035
main74390-19035i198406-198808
74603GRIP SUB-ASSY, ASSIST, FRONT
main74610-14030-01i198406-198803
BLACK,BLACK
sub74610-14030
sub74610-12050
main74610-14030-01i198803-198808
BLACK,TRIM2#
sub74610-14030
sub74610-12050
main74610-14030-21i198808-198912
BLACK,TRIM2#
sub74610-14030
sub74610-12050
main74610-14030-34i198709-198803
BLUE,DARK BLUE
sub74610-14030
sub74610-12050
main74610-14030-34i198803-198912
DARK BLUE,TRIM8#
sub74610-14030
sub74610-12050
main74610-17010-01i198608-198803
BLACK,BLACK
main74610-17010-01i198803-198808
BLACK,TRIM2#
main74610-17010-04i198709-198803
BLUE,DARK BLUE
main74610-17010-04i198803-198912
DARK BLUE,TRIM8#
main74610-17010-11i198808-198912
BLACK,TRIM2#
74631HOOK, COAT, A
main74631-17010-01i198406-198803
BLACK,BLACK
sub74631-17010
main74631-17010-01i198803-198808
BLACK,TRIM2#
sub74631-17010
main74631-17010-04i198709-198803
BLUE,DARK BLUE
sub74631-17010
main74631-17010-04i198803-198912
DARK BLUE,TRIM8#
sub74631-17010
main74631-17010-11i198808-198912
BLACK,TRIM2#
sub74631-17010
9015460015
main90154-60015
9015960116
main90159-60116
9016460014
main90164-60014
9018906009
main90189-06009
9018906018
main90189-06018
9056107008
main90561-07008
9324058025
main93240-58025
9353045020
main93530-45020

20 parts on this diagram · 2 diagrams in section
