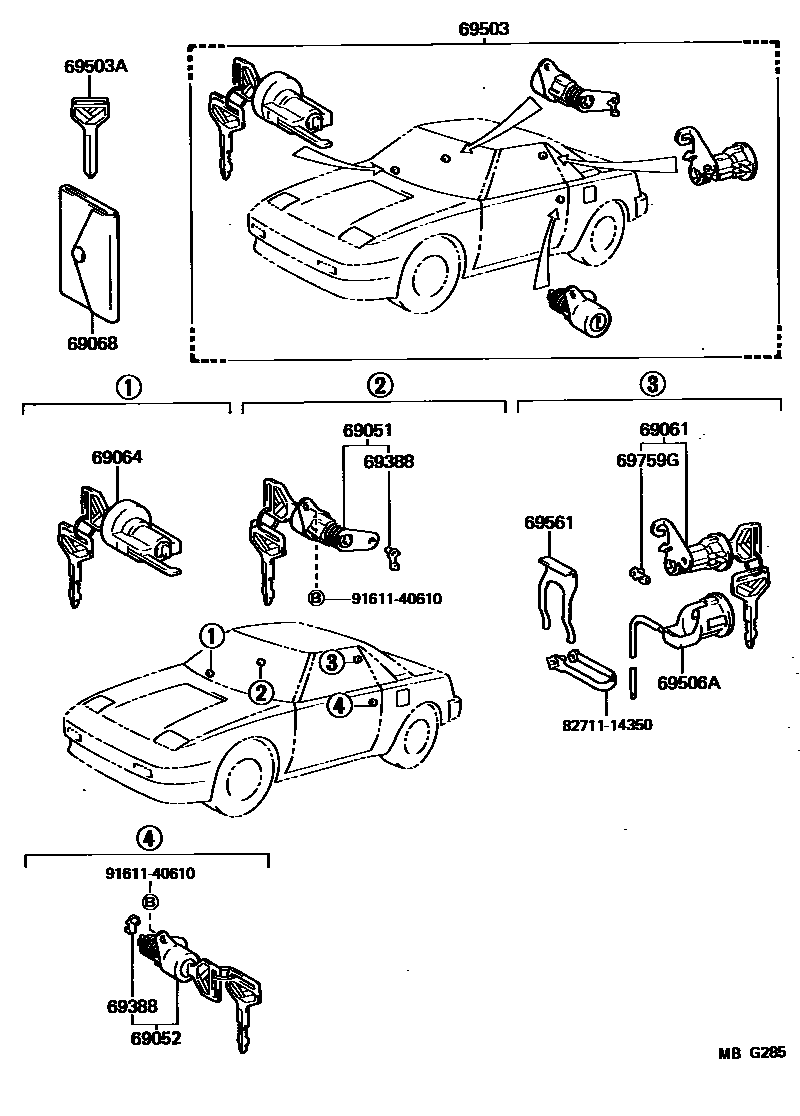

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
sub69051-17030
69052CYLINDER & KEY SET, DOOR LOCK, LH
sub69052-17030
69068COVER SUB-ASSY, KEY
69388SNAP, ROD(FOR DOOR LOCK)
RH
LH
69503CYLINDER SET, LOCK
69506AHOSE SUB-ASSY, LUGGAGE DOOR LOCK CYLINDER
69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER
69759GSNAP, LUGGAGE DOOR LOCK CYLINDER
8271114350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14350
9161140610
main91611-40610
13 parts on this diagram · 2 diagrams in section
