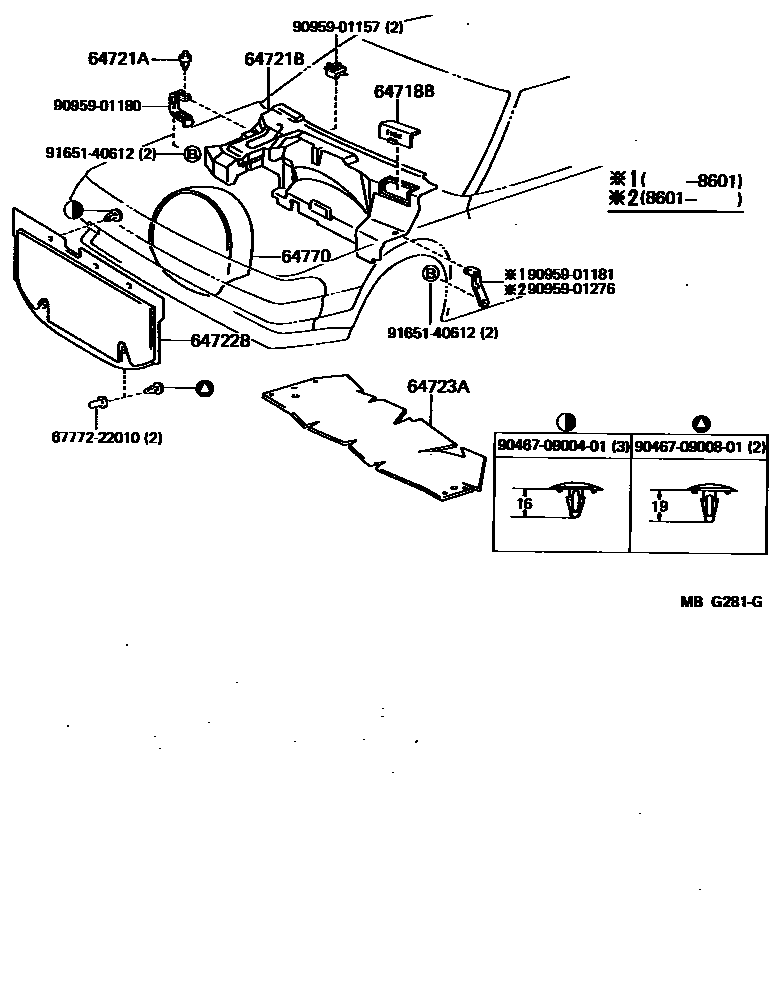

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

64718BCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-17010iAW1#198406-198607

sub64718-17011

main64718-17011iAW1#198607-198912

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07041-01iAW1#198803-198808

BLACK,TRIM2#

sub90467-07041

main90467-07041-01iAW1#198406-198803

BLACK,BLACK

sub90467-07041

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main64721-17010iAW1#..5F198406-198608

main64721-17020iAW1#..4FC198406-198608

main64721-17050iAW1#..5F198406-198608

W/REMOVABLE ROOF

main64721-17060iAW1#..4FC198406-198608

W/REMOVABLE ROOF

main64721-17090iAW1#..5F198608-198912

main64721-17100iAW1#..4FC198608-198912

64722BCOVER, LUGGAGE COMPARTMENT TRIM, NO.2

main64722-17030iAW1#198406-198912

main64722-17050iAW1#198406-198608

W/REMOVABLE ROOF

64723ACOVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER

main64723-17010iAW1#198506-198608

main64723-17021iAW1#198608-198912

64770COVER ASSY, SPARE WHEEL

main64770-17010iAW11198608-198912

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

904670900401

main90467-0900401

904670900801

main90467-0900801

9095901157

main90959-01157

9095901180

main90959-01180

9095901181

main90959-01181

9095901276

main90959-01276

9165140612

main91651-40612

14 parts on this diagram · 2 diagrams in section
