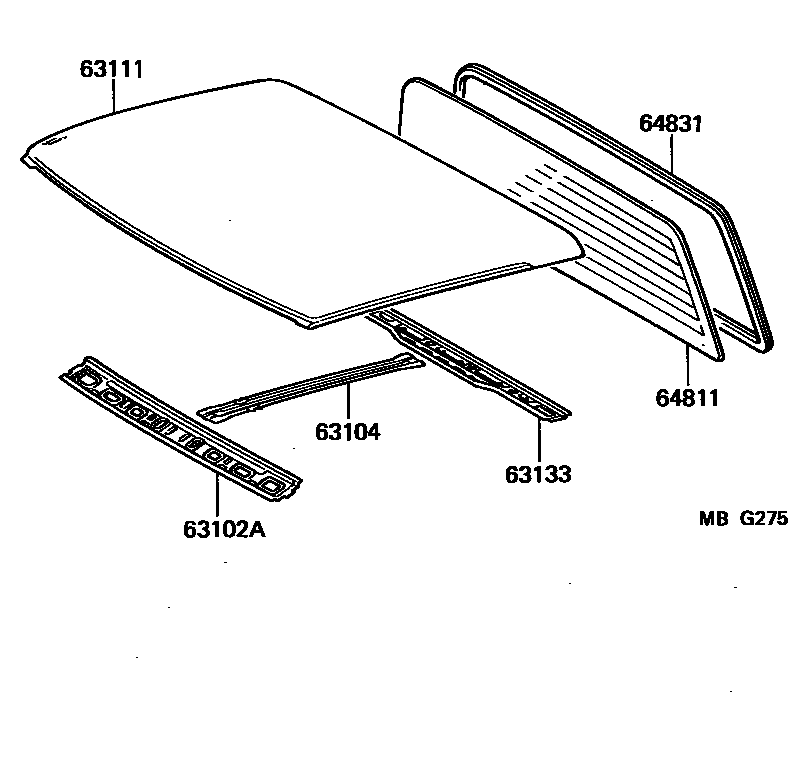

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-17010iAW1#..CP198406-198912

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-17010iAW1#..CP198406-198912

63111PANEL, ROOF

main63101-17900iAW11..TBR198608-198912

main63111-17900iAW1#..CP198406-198912

main63111-17902iAW1#198406-198608

W/REMOVABLE ROOF

63133FRAME, BACK WINDOW OPENING, UPPER

main63133-17010iAW1#198406-198412

sub63133-17011

sub91651-40612

main63133-17011iAW1#198412-198912

64811GLASS, BACK WINDOW

main64811-17010iAW1#198803-198912

main64811-17010iAW1#198406-198803

main64811-17020iAW11198501-198803

main64811-17020iAW11198803-198912

main64811-17050iAW11198406-198411

*TT,T=3.5

sub64811-17010

sub75485-17010

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-17010iAW1#198406-198912

6 parts on this diagram · 3 diagrams in section
