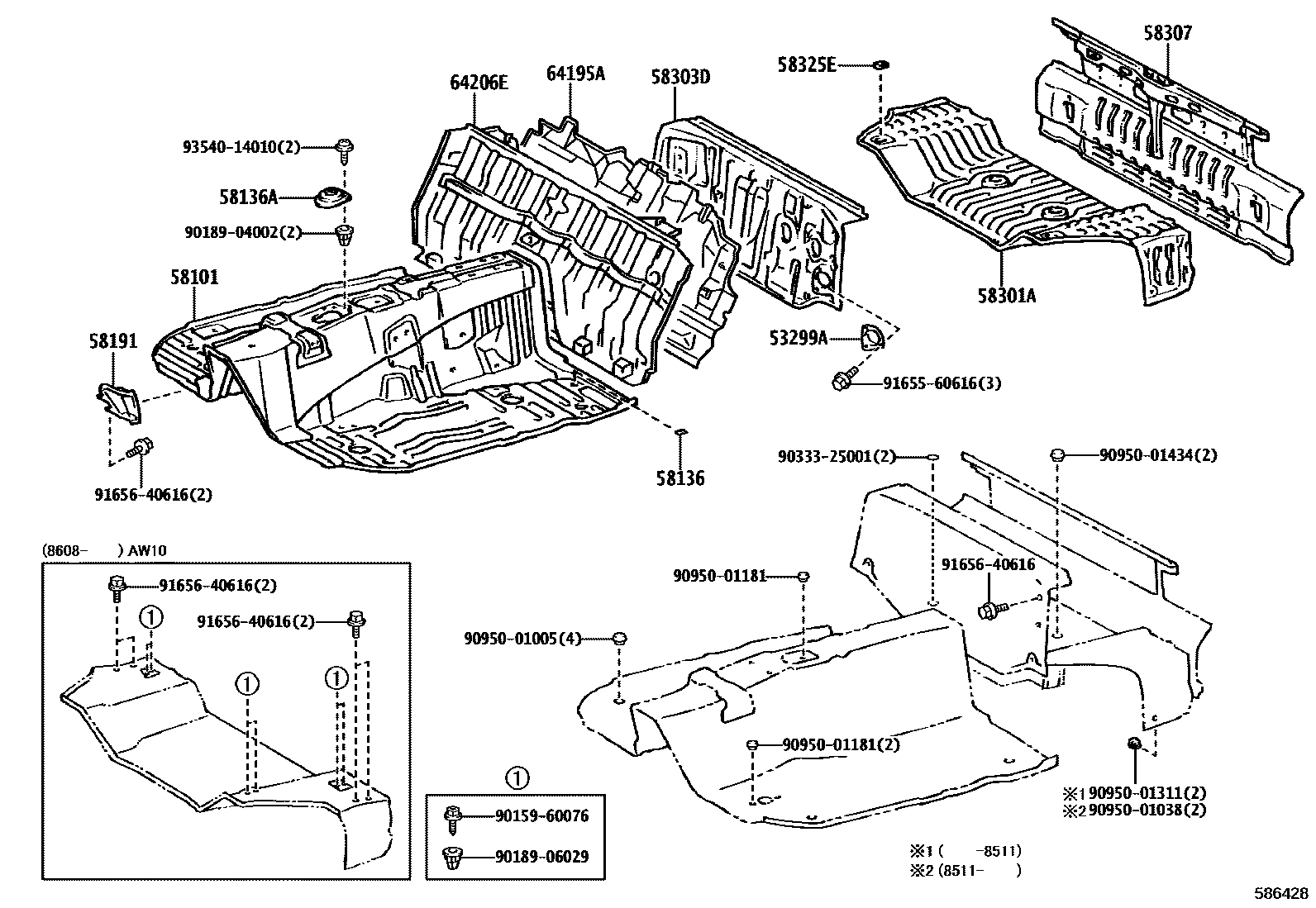

FLOOR PAN & LOWER BACK PANEL

53299APLATE, COOL AIR INTAKE DUCT

main53299-17010iAW10198608-198912

58101PAN SUB-ASSY, FRONT FLOOR

main58101-17900iAW1#198406-198410

sub58101-17905

main58101-17904iAW1#198410-198608

sub58101-17905

main58101-17905iAW1#198608-198912

58136COVER, FRONT FLOOR HOLE

main58136-24010iAW1#198406-198410

sub90950-06002

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-17010iAW1#198406-198912

58191FOOTREST, FRONT FLOOR

main58191-17010iAW1#198406-198912

58301APANEL SUB-ASSY, REAR FLOOR

main58301-17010iAW1#198406-198608

sub58301-17020

main58301-17021iAW1#198608-198912

58303DPANEL SUB-ASSY, REAR FLOOR PARTITION

main58303-17010iAW10198406-198608

main58303-17020iAW11198406-198608

main58303-17021iAW1#..CBR,TWC198608-198912

main58303-17040iAW11..SPC198608-198912

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-17010iAW1#198406-198608

main58307-17011iAW11198608-198912

main58307-17041iAW10198608-198912

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-17010iAW1#198406-198912

64195AINSULATOR, ROOM PARTITION PANEL

main64195-17010iAW1#198406-198602

main64195-17011iAW1#198602-198912

64206EPANEL SUB-ASSY, ROOM PARTITION

main64206-17070iAW11..SPC198910-198912

9015960076

main90159-60076

9018904002

main90189-04002

9018906029

main90189-06029

9033325001

main90333-25001

9095001005

main90950-01005

9095001038

main90950-01038

9095001181

main90950-01181

9095001311

main90950-01311

9095001434

main90950-01434

9165560616

main91655-60616

9165640616

main91656-40616

9354014010

main93540-14010

23 parts on this diagram · 1 diagram in section
