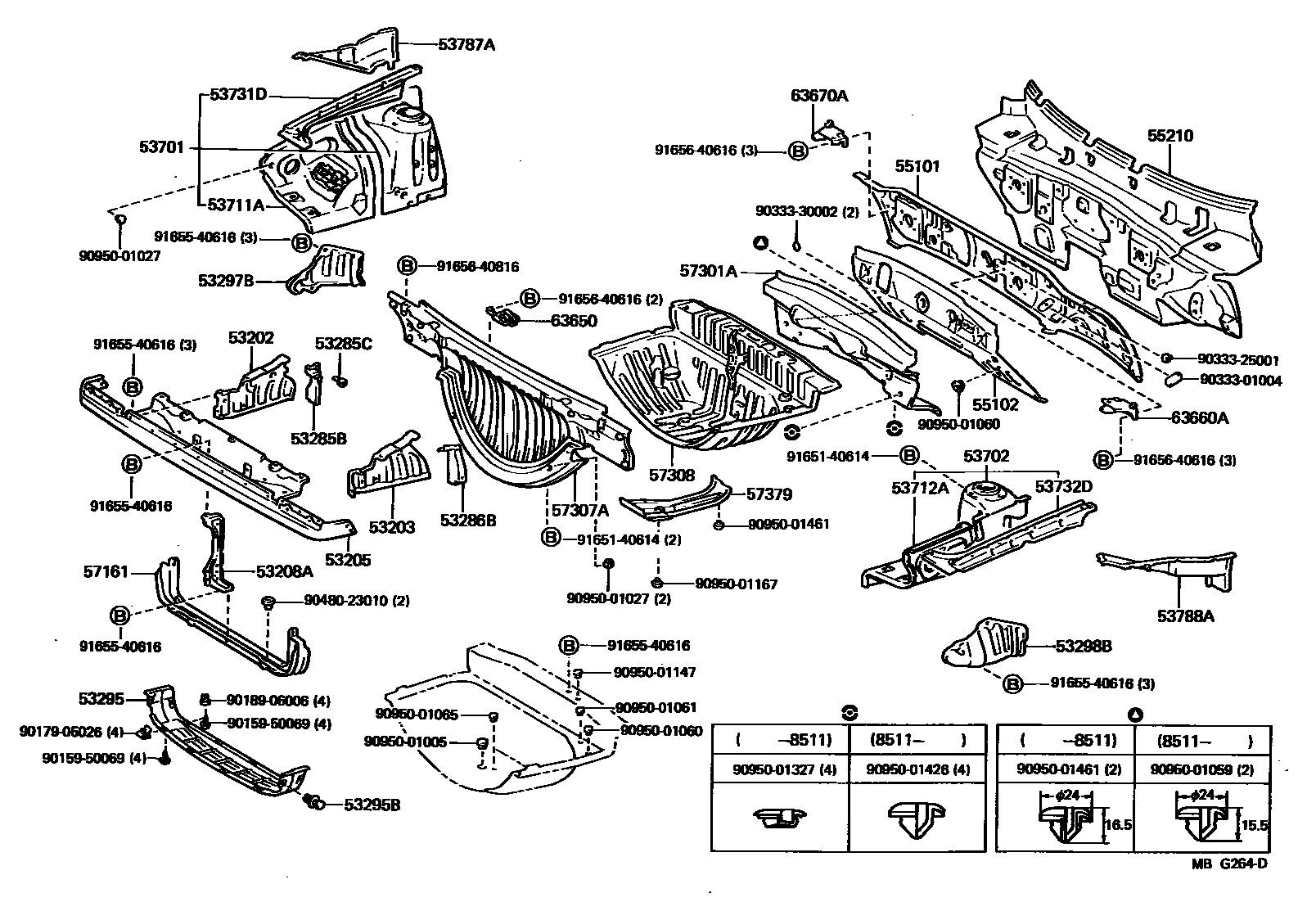

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53211-17010iAW1#198406-198602

sub53211-17020

main53211-17020iAW1#198602-198912

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53212-17010iAW11198406-198602

sub53212-17020

main53212-17020iAW1#198602-198912

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-17020iAW1#198406-198608

main53205-17030iAW1#198608-198912

sub53205-17020

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53215-17020iAW1#198406-198608

main53215-17021iAW1#198608-198912

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-17010iAW1#198406-198608

main53285-17011iAW1#198608-198912

53285CCLIP(FOR RADIATOR SIDE AIR SEAL)

main90467-06017-01iAW1#198406-198803

BLACK,BLACK

sub90467-06017

main90467-06017-11iAW1#198803-198910

BLACK,TRIM2#,8#

sub90467-06017

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-17010iAW1#198406-198608

main53286-17011iAW1#198608-198912

53295DEFLECTOR, RADIATOR LOWER AIR

main53295-17010iAW1#198406-198608

53295BCLIP(FOR RADIATOR LOWER AIR DEFLECTOR)

main90467-07041-01iAW1#198406-198608

BLACK,BLACK

sub90467-07041

53297BPROTECTOR, RADIATOR HOSE, NO.1

main53297-17010iAW1#198406-198912

53298BPROTECTOR, RADIATOR HOSE, NO.2

main53298-17010iAW1#198406-198912

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-17010iAW1#198406-198510

sub53701-17020

main53701-17011iAW1#198510-198602

sub53701-17021

main53701-17021iAW1#198602-198608

sub53701-17022

main53701-17022iAW1#198608-198912

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-17010iAW1#198406-198601

sub53702-17011

main53702-17011iAW1#198601-198602

sub53702-17021

main53702-17021iAW1#198602-198608

sub53702-17022

main53702-17022iAW1#198608-198912

53711AAPRON, FRONT FENDER, W/SUPPORT, FRONT RH

main53711-17900iAW1#198406-198602

sub53711-17901

main53711-17901iAW1#198602-198912

53712AAPRON, FRONT FENDER, W/SUPPORT, FRONT LH

main53712-17900iAW1#198406-198602

sub53712-17901

main53712-17901iAW1#198602-198912

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-17010iAW1#198406-198912

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-17010iAW1#198406-198912

53787AGUSSET, FRONT FENDER APRON, LOWER RH

main53707-17010iAW1#198406-198912

53788AGUSSET, FRONT FENDER APRON, LOWER LH

main53708-17010iAW1#198406-198912

55101PANEL SUB-ASSY, DASH

main55101-17010iAW1#..5F198406-198608

main55101-17011iAW1#..5F198608-198912

main55101-17020iAW1#..4FC198406-198912

sub55101-17011

sub90950-01409

sub90950-01557

55102PANEL SUB-ASSY, DASH, LOWER

main55102-17010iAW1#198406-198912

55210INSULATOR ASSY, DASH PANEL

main55210-17010iAW1#198406-198608

main55210-17011iAW1#198608-198912

57161CROSSMEMBER, FRONT

main57104-17010iAW1#198406-198601

sub57104-17020

main57104-17020iAW1#198601-198608

main57104-17021iAW1#198608-198912

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-17010iAW1#198406-198912

57307APANEL SUB-ASSY, FRONT LUGGAGE END

main57307-17900iAW1#198406-198912

sub57307-17902

57308PAN SUB-ASSY, FRONT LUGGAGE

main57308-17010iAW1#198406-198912

57379REINFORCEMENT, FRONT LUGGAGE UNDER

main57379-17020iAW1#198406-198912

63650HOLDER ASSY, REMOVABLE ROOF

main63650-17010iAW1#198406-198608

63660ASTAY ASSY, REMOVABLE ROOF, LH

main63660-17010iAW1#198406-198608

63670ASTAY ASSY, REMOVABLE ROOF, RH

main63670-17010iAW1#198406-198608

9015950069

main90159-50069

9017905026

main90179-05026

9018906006

main90189-06006

9033301004

main90333-01004

9033325001

main90333-25001

9033330002

main90333-30002

9048023010

main90480-23010

9095001005

main90950-01005

9095001027

main90950-01027

9095001059

main90950-01059

9095001060

main90950-01060

9095001061

main90950-01061

9095001065

main90950-01065

9095001147

main90950-01147

9095001167

main90950-01167

9095001327

main90950-01327

9095001426

main90950-01426

9095001461

main90950-01461

9165140614

main91651-40614

9165540616

main91655-40616

9165640616

main91656-40616

9165640816

main91656-40816

52 parts on this diagram · 2 diagrams in section
