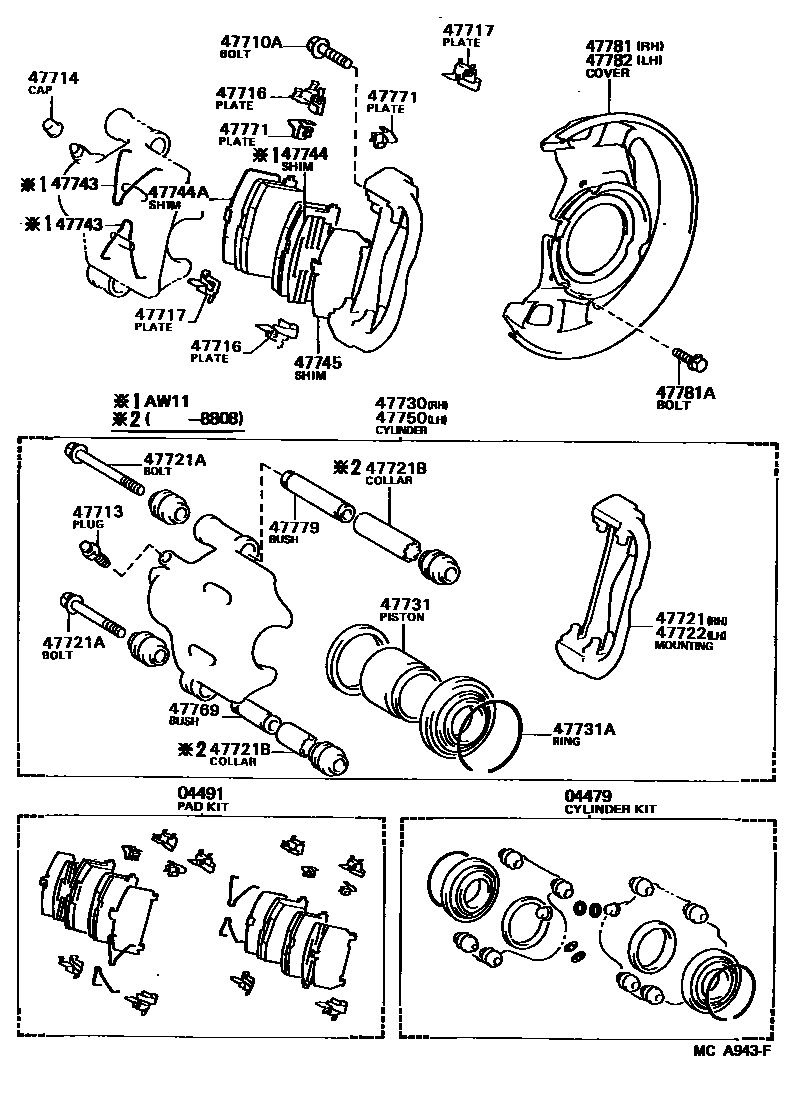

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12090iAW10198406-198501

sub04479-12091

main04479-12091iAW10198501-198912

main04479-32010iAW11198406-198501

sub04479-32011

main04479-32011iAW11198501-198912

04491PAD KIT, DISC BRAKE, FRONT

main04491-17010iAW10198406-198901

sub04491-17011

main04491-17011iAW10198901-198912

sub04465-17070

main04491-17030iAW11198406-198608

sub04491-17031

main04491-17060iAW11198608-198901

sub04491-17061

main04491-17061iAW11198901-198912

sub04465-17021

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040iAW1#198406-198912

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAW1#198406-198912

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAW1#198406-198912

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32010iAW1#198406-198901

sub47716-32031

main47716-32031iAW1#198901-198912

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32010iAW1#198406-198901

sub47717-32031

main47717-32031iAW1#198901-198912

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12060iAW10198406-198912

main47721-17010iAW11198608-198808

main47721-17020iAW11198808-198912

main47721-32010iAW11198406-198608

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003iAW1#198406-198803

main90119-09003iAW1#198803-198912

main90119-09004iAW1#198803-198912

main90119-09004iAW1#198406-198803

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-15004iAW1#198406-198707

L=12

main90387-15004iAW11198707-198808

main90387-15005iAW1#198406-198707

L=32

main90387-15005iAW11198707-198808

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-12060iAW10198406-198912

main47721-17010iAW11198608-198803

main47721-17020iAW11198808-198912

main47721-32010iAW11198406-198608

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12170iAW11198410-198608

sub47730-12171

main47730-12210iAW10198406-198912

main47730-17030iAW11198406-198410

sub47730-12170

main47730-17040iAW11198608-198808

sub47730-17070

main47730-17070iAW11198808-198912

47731PISTON, FRONT DISC BRAKE

main47731-12090iAW10198406-198803

sub47731-12150

main47731-12150iAW1#198803-198912

main47731-20070iAW11198410-198808

main47731-32010iAW11198406-198410

sub47731-20070

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001iAW1#198406-198912

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-32020iAW11198608-198912

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47742-17010iAW11198608-198901

main47742-17010iAW11198901-198912

main47742-32010iAW11198406-198608

sub47742-32H10

main47742-32040iAW11198901-198912

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-32010iAW10198406-198912

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-32010iAW10198406-198912

main47745-17020iAW11198901-198912

main47745-17020iAW11198608-198901

main47745-32010iAW11198406-198608

sub47742-32H10

main47745-32040iAW11198901-198912

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12170iAW11198410-198608

sub47750-12171

main47750-12210iAW10198406-198912

main47750-17030iAW11198406-198410

sub47750-12170

main47750-17040iAW11198608-198808

sub47750-17070

main47750-17070iAW11198808-198912

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030iAW10198706-198912

main47769-16010iAW10198406-198706

sub47769-12030

main47769-32010iAW11198406-198808

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-17020iAW11198608-198912

main47771-32010iAW10198406-198912

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010iAW10198406-198912

main47779-32010iAW11198406-198808

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-17010iAW11198608-198912

main47781-17010iAW1#198406-198912

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iAW1#198406-198912

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-17010iAW11198608-198912

main47781-17010iAW1#198406-198912

25 parts on this diagram · 2 diagrams in section
