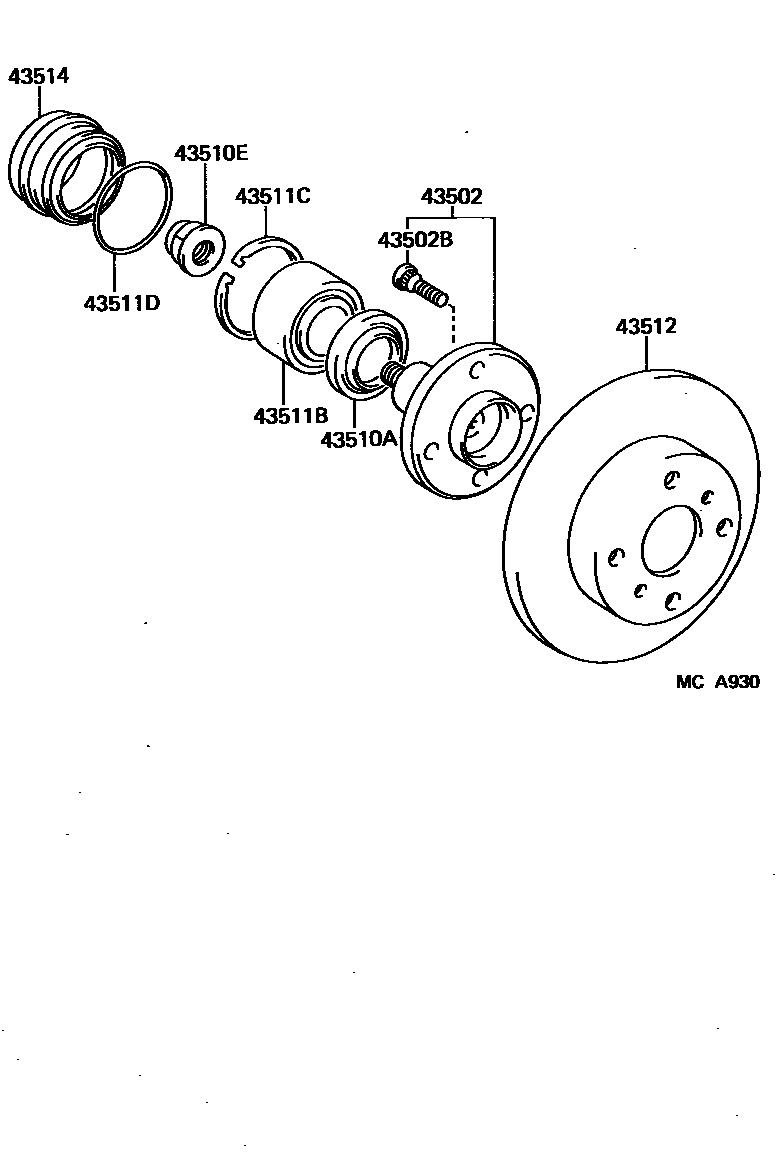

FRONT AXLE HUB

43502HUB SUB-ASSY, FRONT AXLE

main43502-17010iAW1#198406-198912

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iAW1#198406-198912

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-41002iAW1#198406-198511

sub90311-41004

main90311-41004iAW1#198511-198912

43510ENUT (FOR STEERING KNUCKLE)

main90179-20003iAW1#198406-198912

43511BBEARING (FOR FRONT AXLE HUB)

main90369-28006iAW1#198406-198912

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-66003iAW1#198406-198912

43511DRING, O (FOR FRONT AXLE HUB)

main96711-35056iAW1#198406-198912

43512DISC, FRONT

main43512-12160iAW10198406-198912

main43512-17010iAW11198608-198912

main43512-20080iAW11198406-198608

43514CAP, FRONT HUB GREASE

main43514-17010iAW1#198406-198912

9 parts on this diagram · 1 diagram in section
