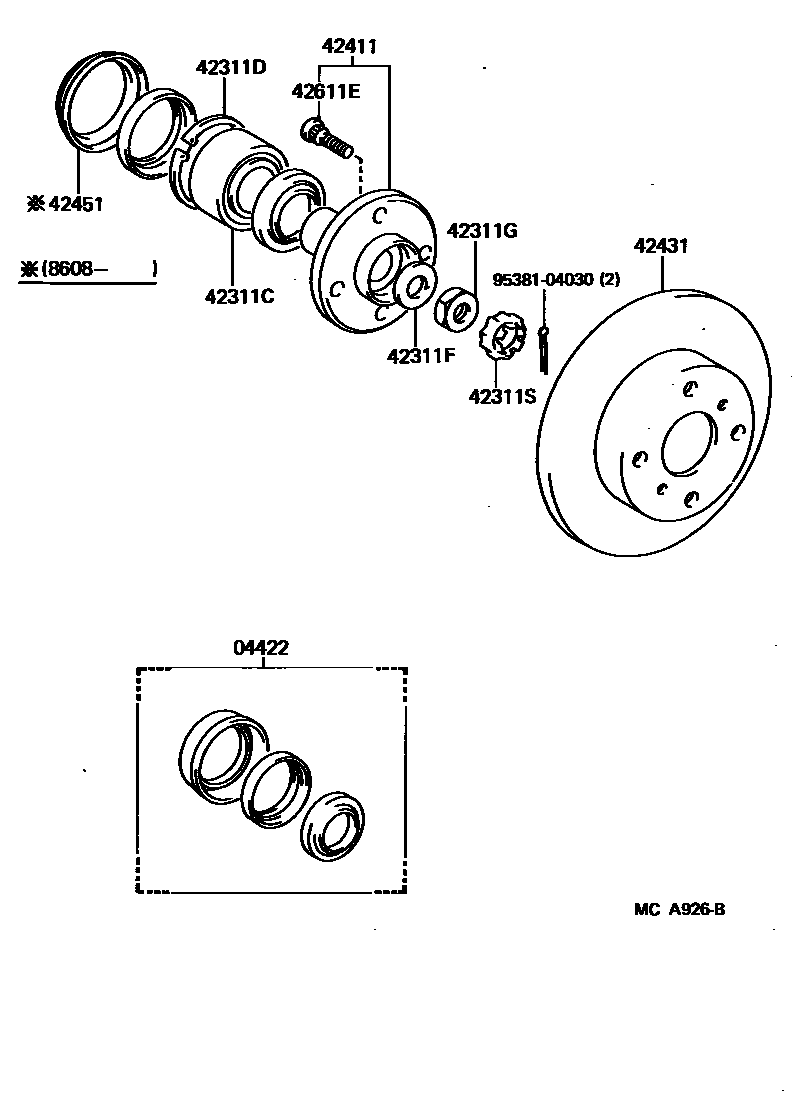

REAR AXLE SHAFT & HUB

0001 1 0002 1 0004 1 0005 1

04422SEAL KIT, REAR AXLE OIL

main04422-17010iAW1#¥1,230198406-198608

main04422-32010iAW11;AW10..5F¥2,450198608-198912

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-38003iAW1#¥7,000198406-198912

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90521-79002iAW1#¥140198406-198912

42311FWASHER, PLATE(FOR REAR AXLE SHAFT)

main90201-20012iAW1#¥340198406-198912

42311GNUT(FOR REAR AXLE SHAFT)

main90170-19001iAW1#¥320198406-198912

42311SCAP, REAR WHEEL ADJUSTING LOCK

main43525-16010iAW1#¥250198406-198912

42411HUB, REAR AXLE

main43502-20030iAW1#¥8,900198406-198912

sub43502-12100¥8,900

sub43502-20110¥9,400

main43502-20080iAW1#¥9,500198803-198904

sub43502-20110¥9,400

42431DISC, REAR

main42431-17010iAW1#¥10,000198406-198912

main42431-17020iAW11¥10,300198608-198912

42451DEFLECTOR, REAR WHEEL BEARING DUST, NO.1

main43246-17010iAW1#¥1,690198406-198608

main43246-32011iAW1#¥1,870198608-198912

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047iAW1#¥230198406-198912

9538104030

main95381-04030¥50

11 parts on this diagram · 4 diagrams in section
