REAR AXLE HOUSING & DIFFERENTIAL

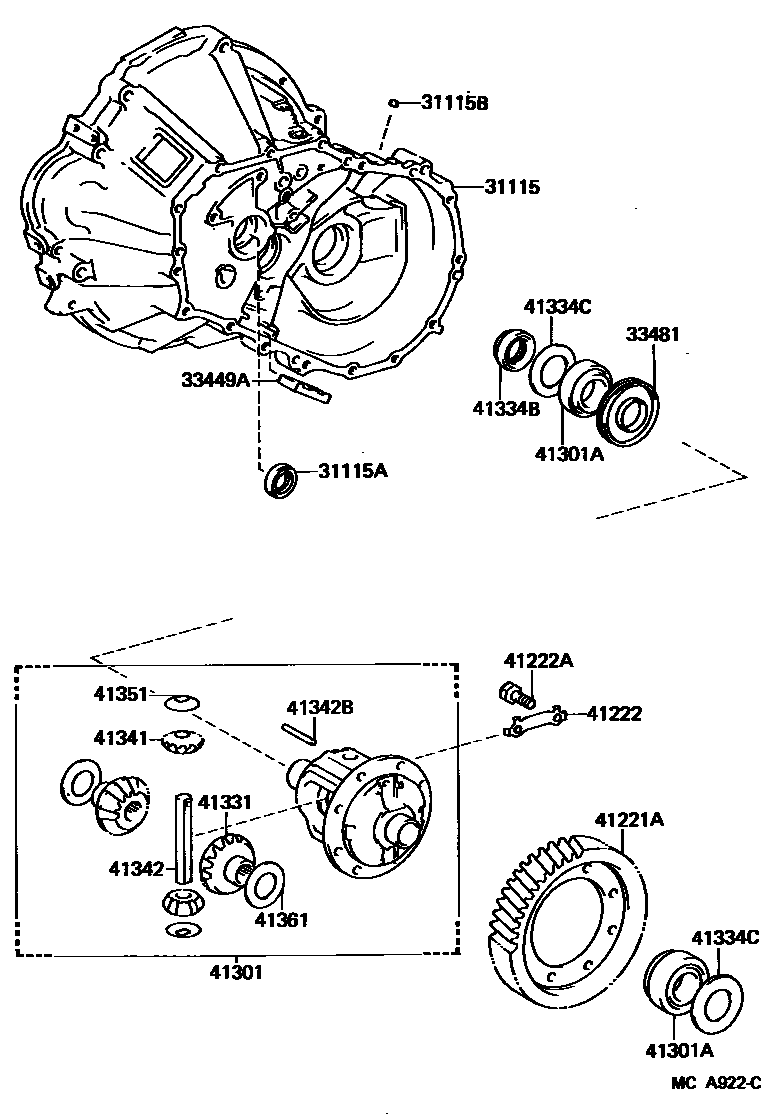

Parts diagram
31115CASE, TRANSAXLE
main31115-12010i198406-198606
sub31115-12020
main31115-12020i198606-198608
sub31115-12021
sub33134-12021
sub90560-48001
main31115-12021i198608-198701
sub31115-12040
sub11355-15060
sub11355-55012
sub11361-16020
sub16264-16011
sub16268-15050
sub16268-15060
sub16268-16070
sub16278-16060
sub16322-15030
sub16322-16011
sub90105-10051
sub91611-61025
main31115-12022i198701-198704
sub31115-12040
sub11355-55012
sub11361-16020
sub90105-10051
sub91611-61025
main31115-12040i198704-198912
sub31115-16040
sub33125-12011
main31115-12070i198906-198912
sub31115-12071
main31115-17011i198608-198703
main31115-17012i198703-198804
sub31115-17013
sub90407-16017
main31115-17013i198804-198906
sub31115-12070
31115ASEAL, OIL(FOR TRANSAXLE CASE)
main90311-25011i198406-198912
sub90311-25028
main90311-30006i198608-198912
sub90311-30017
31115BPLUG, TIGHT(FOR REAR TRANSAXLE CASE)
main90331-08002i198406-198912
33449AMAGNET, TRANSMISSION
main33449-12010i198406-198912
sub33449-12020
main33449-20010i198608-198912
33481GEAR, SPEEDOMETER DRIVE (MTM)
main33481-12040i198406-198912
main33481-17010i198608-198912
41221AGEAR, REAR DIFFERENTIAL RING
main41221-12170i198406-198912
sub41221-12320
main41221-12180i198406-198608
sub41221-12330
main41221-17010i198406-198912
sub41221-12340
main41221-20230i198608-198912
main41221-20240i198608-198912
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
main41222-12040i198406-198912
main41222-12050i198406-198912
main41222-32010i198608-198912
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
main90101-11353i198406-198912
main90105-12133i198608-198705
sub90105-12154
main90105-12154i198705-198912
41301CASE SUB-ASSY, REAR DIFFERENTIAL
main41301-12040i198406-198912
sub41301-12041
sub90105-11040
main41301-12050i198406-198608
sub41301-12051
main41301-12090i198608-198608
sub41301-17020
main41301-17010i198608-198811
sub41301-17030
main41301-17020i198608-198902
sub41301-17021
main41301-17021i198902-198912
sub41301-20150
sub90366-42001
main41301-17030i198811-198908
sub41301-20110
sub90366-44001
sub90368-40002
main41301-20040i198608-198608
sub41301-17010
main41301-20110i198909-198912
sub41301-20112
main41302-17011i198608-198703
sub41302-17012
main41302-17012i198703-198912
sub41302-17013
sub33481-17011
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
main90366-38004i198803-198912
main90366-38004i198608-198803
RH
main90366-44001i198909-198912
main90366-50014i198608-198912
LH
main90366-57006i198608-198703
RH
main90366-57016i198703-198912
RH
main90368-38006i198406-198803
RH
sub90368-38002
main90368-38006i198803-198912
sub90368-38002
main90368-38010i198406-198803
LH
main90368-38010i198803-198912
main90368-40002i198710-198803
RH
main90368-40002i198803-198912
main90368-40003i198608-198710
RH
sub90368-40002
main90368-40016i198803-198909
main90368-40016i198608-198803
LH
41331GEAR, REAR DIFFERENTIAL SIDE
main41331-12011i198406-198912
main41331-17010i198608-198912
main41331-32010i198608-198912
41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
main90311-34005i198608-198709
sub90311-34012
main90311-34007i198406-198912
sub90311-34016
main90311-34012i198709-198912
main90311-35010i198608-198709
sub90311-35019
main90311-35019i198709-198912
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
main90201-41002i198406-198608
main90201-41003i198406-198608
main90201-41004i198406-198608
main90201-41005i198406-198608
main90201-41006i198406-198608
main90201-41007i198406-198608
main90201-41008i198406-198608
main90201-41009i198406-198608
main90201-41010i198608-198803
main90201-41010i198803-198912
main90201-41010i198406-198608
main90201-41011i198406-198608
main90201-41012i198406-198608
main90201-41013i198406-198608
main90201-41014i198406-198608
main90201-41015i198406-198608
main90201-41016i198406-198608
main90201-41017i198406-198608
main90201-41018i198406-198608
main90201-41019i198406-198608
main90201-41020i198406-198608
main90201-41021i198406-198608
main90201-41022i198406-198608
main90201-41023i198406-198608
main90201-41024i198608-198803
main90201-41024i198803-198912
main90201-41025i198608-198803
main90201-41025i198803-198912
main90201-41026i198608-198803
main90201-41026i198803-198912
main90201-41027i198803-198912
main90201-41027i198608-198803
main90201-41028i198803-198912
main90201-41028i198608-198803
main90201-41029i198803-198912
main90201-41029i198608-198803
main90201-41030i198803-198912
main90201-41030i198608-198803
main90201-41031i198803-198912
main90201-41031i198608-198803
main90201-41032i198608-198803
main90201-41032i198803-198912
main90201-41033i198608-198803
main90201-41033i198803-198912
main90201-41034i198803-198912
main90201-41034i198608-198803
main90201-41035i198803-198912
main90201-41035i198608-198803
main90201-41036i198803-198912
main90201-41036i198608-198803
main90201-41037i198608-198803
main90201-41037i198803-198912
main90201-41038i198803-198912
main90201-41038i198608-198803
main90201-41039i198608-198803
main90201-41039i198803-198912
main90201-41040i198608-198803
main90201-41040i198803-198912
main90201-41041i198803-198912
main90201-41041i198608-198803
main90201-41042i198608-198803
main90201-41042i198803-198912
main90201-41043i198608-198803
main90201-41043i198803-198912
main90201-41044i198803-198912
main90201-41044i198608-198803
main90201-41045i198803-198912
sub90201-41012
main90201-41045i198406-198803
sub90201-41012
main90201-41046i198803-198912
sub90564-41014
main90201-41046i198406-198803
sub90564-41014
main90201-41047i198406-198803
sub90564-41015
main90201-41047i198803-198912
sub90564-41015
main90201-41048i198803-198912
sub90564-41016
main90201-41048i198406-198803
sub90564-41016
main90201-41049i198803-198912
sub90564-41017
main90201-41049i198406-198803
sub90564-41017
main90201-41050i198406-198803
sub90564-41018
main90201-41050i198803-198912
sub90564-41018
main90201-41051i198803-198912
sub90564-41019
main90201-41051i198406-198803
sub90564-41019
main90201-41052i198803-198912
sub90564-41020
main90201-41052i198406-198803
sub90564-41020
main90201-41053i198406-198803
sub90564-41021
main90201-41053i198803-198912
sub90564-41021
main90201-41054i198803-198912
sub90564-41022
main90201-41054i198406-198803
sub90564-41022
main90201-41055i198803-198912
sub90564-41023
main90201-41055i198406-198803
sub90564-41023
main90201-41056i198406-198803
sub90564-41024
main90201-41056i198803-198912
sub90564-41024
main90201-41057i198803-198912
sub90564-41025
main90201-41057i198406-198803
sub90564-41025
main90201-41058i198803-198912
sub90564-41026
main90201-41058i198406-198803
sub90564-41026
main90201-41059i198406-198803
sub90564-41027
main90201-41059i198803-198912
sub90564-41027
main90201-41060i198406-198803
sub90564-41028
main90201-41060i198803-198912
sub90564-41028
main90201-41061i198406-198803
sub90564-41029
main90201-41061i198803-198912
sub90564-41029
main90201-41062i198803-198912
sub90564-41030
main90201-41062i198406-198803
sub90564-41030
main90201-41063i198406-198803
sub90564-41031
main90201-41063i198803-198912
sub90564-41031
main90201-41064i198803-198912
sub90564-41032
main90201-41064i198406-198803
sub90564-41032
main90201-45004i198608-198803
main90201-45004i198803-198912
main90201-45005i198803-198912
main90201-45005i198608-198803
main90201-45006i198803-198912
main90201-45006i198608-198803
main90201-45007i198608-198803
main90201-45007i198803-198912
main90201-45008i198608-198803
main90201-45008i198803-198912
main90201-45009i198803-198912
main90201-45009i198608-198803
main90201-45010i198608-198803
main90201-45010i198803-198912
main90201-45011i198803-198912
main90201-45011i198608-198803
main90201-45012i198608-198803
main90201-45012i198803-198912
main90201-45013i198803-198912
main90201-45013i198608-198803
main90201-45014i198608-198803
main90201-45014i198803-198912
main90201-45015i198803-198912
main90201-45015i198608-198803
main90201-45016i198608-198803
main90201-45016i198803-198912
main90201-45017i198608-198803
main90201-45017i198803-198912
main90201-45018i198608-198803
main90201-45018i198803-198912
main90201-45019i198608-198803
main90201-45019i198803-198912
main90201-45020i198803-198912
main90201-45020i198608-198803
main90201-45021i198608-198803
main90201-45021i198803-198912
main90201-45022i198608-198803
main90201-45022i198803-198912
41341PINION, REAR DIFFERENTIAL
main41341-12030i198502-198803
main41341-20020i198608-198912
main41341-22020i198406-198502
sub41341-12030
main41341-30011i198608-198912
41342SHAFT, REAR DIFFERENTIAL PINION
main41342-12020i198406-198903
sub41342-12140
main41342-12110i198902-198912
sub41342-12020
main41342-20050i198811-198912
sub41342-32020
main41342-32010i198608-198811
sub41342-20050
41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)
main90250-06058i198406-198912
41351WASHER, REAR DIFFERENTIAL PINION THRUST
main41351-12020i198406-198912
main41351-20010i198608-198912
main41351-32010i198608-198912
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
main41361-17010i198608-198912
main41361-17020i198608-198912
main41361-17030i198608-198912
main41361-17040i198608-198912
main41361-17050i198608-198912
main41361-17060i198608-198912
main41361-22020i198406-198803
main41361-22020i198803-198912
main41361-22030i198406-198803
main41361-22030i198803-198912
main41361-22040i198406-198803
main41361-22040i198803-198912
main41361-22140i198803-198912
main41361-22140i198406-198803
main41361-22150i198406-198803
main41361-22150i198803-198912
main41361-22160i198406-198803
main41361-22160i198803-198912
main41362-17010i198803-198912
main41362-17010i198608-198803
main41362-17020i198608-198803
main41362-17020i198803-198912
main41362-17030i198608-198803
main41362-17030i198803-198912
main41362-17040i198608-198803
main41362-17040i198803-198912
main41362-17050i198608-198803
main41362-17050i198803-198912
main41362-17060i198803-198912
main41362-17060i198608-198803
main41362-17070i198608-198803
main41362-17070i198803-198912

18 parts on this diagram · 5 diagrams in section
