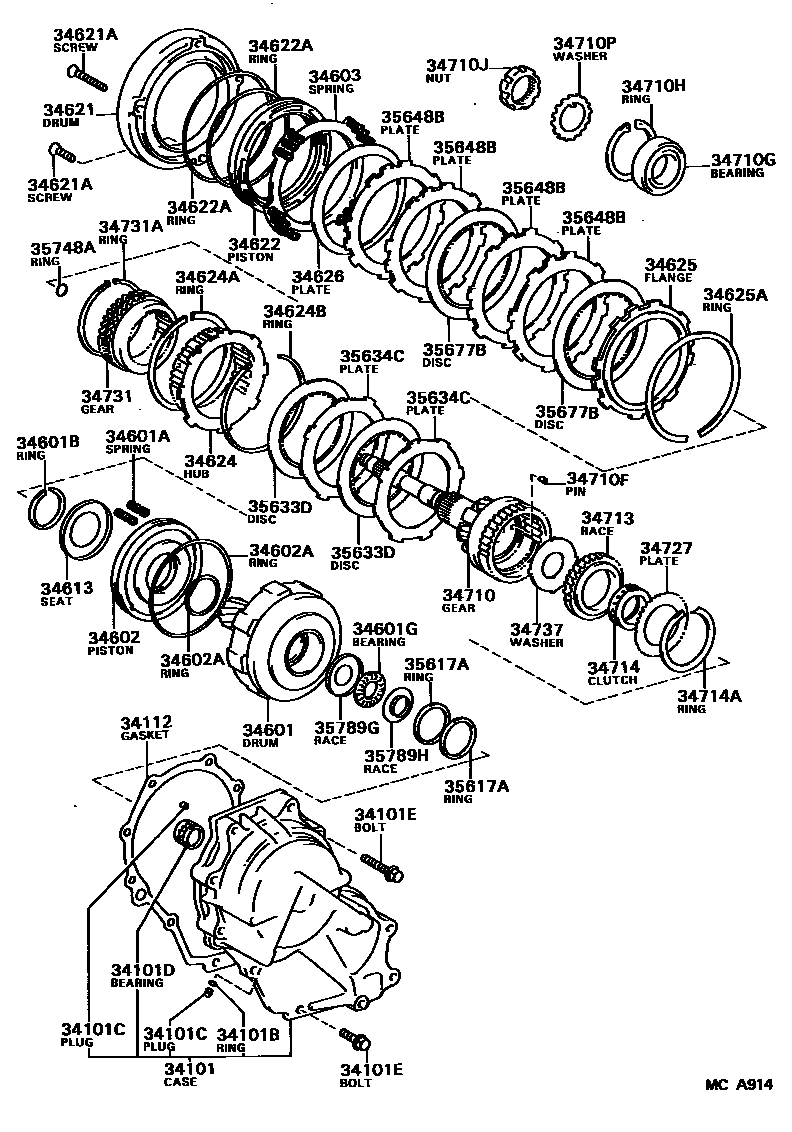

OVERDRIVE GEAR (ATM)
34101BRING, O (FOR OVERDRIVE CASE)
34101CPLUG, STRAIGHT (FOR OVERDRIVE CASE)
OD=5.5,L=5
OD=7.5,L=9
34101DBEARING, NEEDLE ROLLER (FOR OVERDRIVE CASE)
34101EBOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING)
34112GASKET, OVERDRIVE CASE
sub35144-12020
34601ASPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH)
34601BRING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH)
34601GBEARING,THRUST NEEDLE ROLLER(FOR OVERDRIVE DIRECT CLUTCH)
34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH
34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)
INNER
OUTER
34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN
34613SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING
34621DRUM, OVERDRIVE BRAKE
34621ASCREW (FOR OVERDRIVE BRAKE DRUM SETTING)
L=25
L=35
34622PISTON, OVERDRIVE BRAKE
34622ARING, O (FOR OVERDRIVE BRAKE PISTON)
INNER
OUTER
34624HUB, OVERDRIVE BRAKE
sub34624-26010
34624ARING, HOLE SNAP, NO.1 (FOR OVERDRIVE BRAKE HUB)
34624BRING, HOLE SNAP, NO.2 (FOR OVERDRIVE BRAKE HUB)
34625FLANGE, OVERDRIVE BRAKE, NO.1
34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)
34626PLATE, OVERDRIVE BRAKE CUSHION
34710GEAR ASSY, OVERDRIVE PLANETARY
34710FPIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)
34710GBEARING, RADIAL BALL(FOR OVERDRIVE PLANETARY GEAR)
34710HRING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR BEARING)
34710JNUT(FOR OVERDRIVE PLANETARY GEAR)
sub90179-40005
34710PWASHER(FOR OVERDRIVE PLANETARY GEAR)
34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)
34714CLUTCH, 1 WAY(FOR OVERDRIVE)
34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)
34727PLATE, RETAINING (FOR OVERDRIVE)
34731GEAR, OVERDRIVE PLANETARY RING
34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)
35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)
35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)
35648BPLATE, CLUTCH (FOR OVERDRIVE BRAKE)
35748ARING, INTERMEDIATE SHAFT OIL SEAL (FOR OVERDRIVE)
35789GRACE, THRUST BEARING (FOR OVERDRIVE DIRECT CLUTCH DRUM)
45 parts on this diagram · 2 diagrams in section
