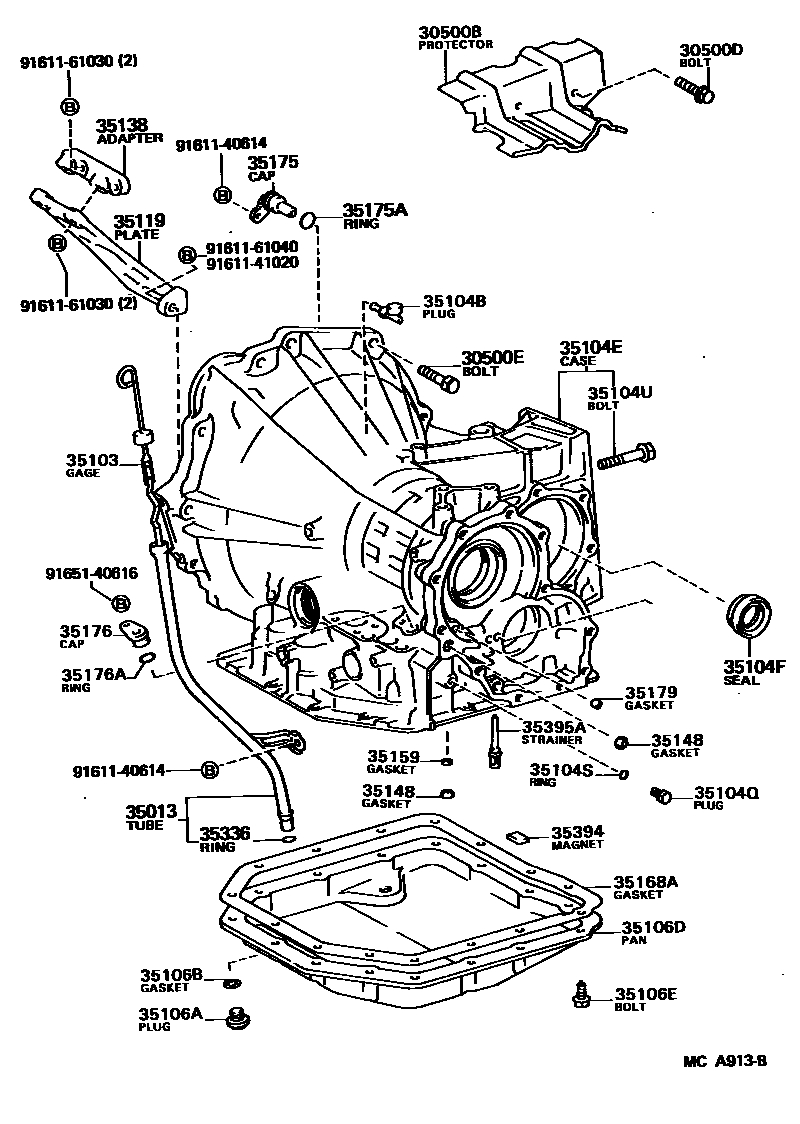

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1

30500BPROTECTOR, TRANSAXLE CASE

main33117-10010iAW1#..4FC198408-198601

sub33117-10011

main33117-10011iAW1#..4FC198601-198608

main33117-12020iAW1#..4FC198406-198408

sub33117-10010

main33117-12030iAW1#..4FC198608-198912

30500DBOLT(FOR TRANSAXLE CASE PROTECTOR)

main90105-08040iAW1#..4FC198406-198912

sub91641-H0820

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10077iAW1#..4FC198803-198912

main90105-10077iAW1#..4FC198406-198803

main90119-12168iAW1#..4FC198803-198912

main90119-12168iAW1#..4FC198412-198803

main91611-60820iAW1#..4FC..(CBR,TWC)198406-198609

sub91611-G0820

main91611-61020iAW1#..4FC..(CBR,TWC)198406-198609

sub91612-B1020

main91619-61245iAW1#..4FC198406-198803

main91619-61255iAW1#..4FC198406-198412

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-17010iAW11..4FC198406-198608

main35013-17020iAW10..4FC198406-198608

main35013-17030iAW10..4FC198608-198912

main35013-17040iAW11..4FC198608-198912

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-17010iAW1#..4FC198406-198512

main35103-17011iAW1#..4FC198512-198608

main35103-17020iAW1#..4FC198608-198912

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03089iAW1#..4FC198406-198608

main90930-03101iAW1#..4FC198608-198912

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-17010iAW1#..4FC198406-198607

sub35104-17011

sub33117-10011

main35104-17011iAW1#..4FC198607-198608

sub35104-17021

sub11355-15060

sub11361-16020

sub90341-18021

sub90430-18008

sub91611-41025

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90310-35002iAW11..4FC..SPC198608-198710

sub90311-35020

main90311-34005iAW1#..4FC198406-198608

sub90311-34012

main90311-34010iAW1#..4FC..(CBR,TWC)198608-198710

sub90311-34013

main90311-34013iAW1#..4FC..(CBR,TWC)198710-198912

sub90311-34026

main90311-35020iAW11..4FC..SPC198710-198912

sub90311-35047

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iAW1#..4FC198406-198912

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iAW1#..4FC198406-198912

35104UBOLT (FOR TRANSAXLE CASE)

main90105-10008iAW1#..4FC198406-198608

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iAW11..TWC198608-198912

sub90341-10011

main90341-18016iAW1#..4FC198406-198608

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iAW1#..4FC198608-198912

main90430-18007iAW1#..4FC198406-198408

sub90430-18008

main90430-18008iAW1#..4FC198408-198608

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-10020iAW1#..4FC198409-198602

W/PROTECTOR

sub35106-10021

main35106-10021iAW1#..4FC198602-198608

W/PROTECTOR

sub35106-10022

main35106-12050iAW1#..4FC198608-198803

W/PROTECTOR

sub35106-12070

main35106-12050iAW1#..4FC198803-198912

W(PROTECTOR)

sub35106-12070

main35106-17010iAW1#..4FC198608-198909

sub35106-17020

main35106-17020iAW11..4FC..TWC198908-198912

main35106-32010iAW1#..4FC198406-198602

sub35106-32011

main35106-32011iAW1#..4FC198602-198608

sub35106-32012

main35106-32020iAW1#..4FC198406-198409

W/PROTECTOR

sub35106-10020

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173iAW1#..4FC198406-198912

35119PLATE, STIFENER, LH (ATM)

main33119-17010iAW11..4FC198406-198608

sub33119-17011

main33119-17011iAW11..4FC198608-198912

35138ADAPTER, STIFFENER PLATE

main35138-12020iAW11..4FC198709-198912

main35138-17010iAW11..4FC198406-198709

sub35138-12020

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iAW1#..4FC198406-198912

35159GASKET, BRAKE DRUM

main35159-20010iAW1#..4FC198608-198912

main35159-32010iAW1#..4FC198406-198510

sub35159-32011

main35159-32011iAW1#..4FC198510-198608

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iAW1#..4FC198608-198912

main35168-32010iAW1#..4FC198406-198608

35175CAP, TRANSAXLE CASE, NO.2

main35175-32010iAW1#..4FC198406-198608

35175ARING, O (FOR TRANSAXLE CASE CAP)

main90301-21002iAW1#..4FC198406-198608

35176CAP, WIRE HARNESS

main35176-32010iAW10..4FC198406-198608

35176ARING, O (FOR WIRE HARNESS CAP)

main96721-24013iAW10..4FC198406-198608

35179GASKET, OVERDRIVE BRAKE

main35179-32010iAW1#..4FC198406-198608

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iAW1#..4FC198406-198912

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iAW1#..4FC..(CBR,SPC)198406-198912

35395ASTRAINER, GOVERNOR OIL

main35395-12020iAW10..4FC198808-198912

main35395-20010iAW10..4FC198608-198808

main35395-32010iAW10..4FC198406-198511

sub35395-32011

main35395-32011iAW10..4FC198511-198608

9161140614

main91611-40614

9161141020

main91611-41020

9161161030

main91611-61030

9161161040

main91611-61040

9165140616

main91651-40616

33 parts on this diagram · 2 diagrams in section
