ALTERNATOR

0001 1 0002 1 0003 1

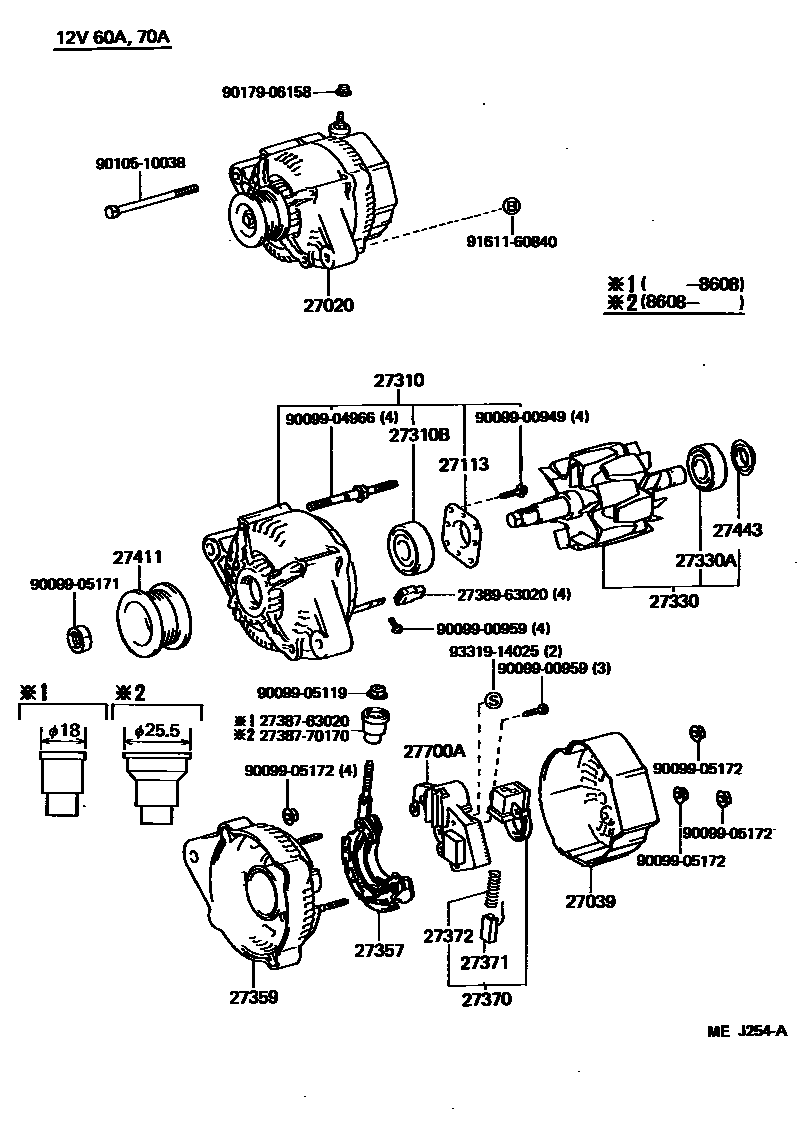

27020ALTERNATOR ASSY

main27020-16130i4AGZE..AW11198803-198912

main27020-16130i4AGZE..AW11198608-198803

main27060-16010i4AGELU..AW11198406-198411

main27060-16080i4AGELU..AW11198406-198608

main27060-16081i4AGELU..AW11198608-198705

sub27060-16082

main27060-16082i4AGELU..AW11198705-198912

12V 70A

main27060-63020i3ALU..AW10198411-198608

sub27060-63080

main27060-63021i3ALU..AW10198803-198912

sub27060-63082

main27060-63021i3ALU..AW10198608-198803

sub27060-63082

main27060-63030i3ALU..AW10198406-198411

12V 60A

27039COVER, ALTERNATOR REAR END

main27039-16120i4AGZE..AW11198803-198912

main27039-16120i4AGZE..AW11198608-198803

12V 70A,NO.2

main27039-16130i4AGZE..AW11198803-198912

main27039-16130i4AGZE..AW11198608-198803

12V 70A,NO.1

main27039-63021i4AGELU..AW11198406-198410

12V 60A

sub27039-72010

main27039-63040i3ALU..AW10198406-198411

12V 60A

sub27039-72110

main27039-72010i4AGELU..AW11198410-198803

12V 60A,70A

sub27039-15170

main27039-72010i3ALU..AW10198411-198803

12V 70A

sub27039-15170

main27039-72010i4AGELU..AW11198803-198912

sub27039-15170

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-63020i3ALU,4AGELU..AW1#198406-198501

12V 60A,70A

main27312-70200i4AGELU..AW11198803-198912

main27312-70200i4AGELU..AW11198705-198803

12V 70A

main27312-72100i3ALU..AW10198803-198912

main27312-72100i3ALU,4AG#..AW1#198501-198803

12V 70A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-16010i4AGELU..AW11198406-198411

12V 60A

main27310-16100i4AGELU..AW11198406-198501

12V 70A

main27310-16101i4AGELU..AW11198501-198705

12V 70A

sub27310-55050

main27310-16102i4AGELU..AW11198705-198803

12V 70A

sub27310-16103

main27310-16103i4AGELU..AW11198803-198912

main27310-16130i4AGZE..AW11198803-198912

main27310-16130i4AGZE..AW11198608-198803

12V 70A

main27310-63020i3ALU..AW10198411-198501

12V 70A

main27310-63021i3ALU..AW10198501-198803

12V 70A

main27310-63021i3ALU..AW10198803-198912

main27310-63040i3ALU..AW10198406-198411

12V 60A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10152i3ALU,4AGELU..AW1#198406-198501

12V 60A,70A

main90099-10159i3ALU,4AG#..AW1#198501-198705

12V 70A

main90099-10159i3ALU,4AGZE..AW1#198705-198803

12V 70A,OD=46

main90099-10159i4AGZE..AW11198803-198912

main90099-10178i4AGELU..AW11198803-198912

main90099-10178i4AGELU..AW11198705-198803

12V 70A,OD=52

27330ROTOR ASSY, ALTERNATOR

main27330-63021i4AGELU..AW11198406-198501

12V 60A,70A

sub27330-72100

main27330-63021i3ALU..AW10198411-198501

12V 70A

sub27330-72100

main27330-63041i3ALU..AW10198406-198411

12V 60A

sub27330-10020

main27330-72100i3ALU,4AG#..AW1#198501-198706

12V 70A

sub27330-72101

main27330-72101i3ALU,4AG#..AW1#198706-198803

12V 70A

main27330-72101i3ALU,4AG#..AW1#198803-198912

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i3ALU,4AG#..AW1#198406-198803

12V 60A,70A

main90099-10140i4AGZE..AW11198803-198912

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-63020i3ALU,4AGELU..AW1#198803-198912

main27357-63020i4AGELU..AW11198406-198803

12V 60A,70A

main27357-63020i3ALU..AW10198411-198803

12V 70A

main27357-63040i3ALU..AW10198406-198411

12V 60A

main27357-70080i4AGZE..AW11198608-198609

12V 70A

sub27357-70081

main27357-70081i4AGZE..AW11198803-198912

main27357-70081i4AGZE..AW11198609-198803

12V 70A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16011i4AGELU..AW11198406-198705

12V 60A,70A

sub27359-16012

sub27384-16380

main27359-16130i4AGZE..AW11198803-198912

main27359-16130i4AGZE..AW11198608-198803

12V 70A

main27359-16180i4AGELU..AW11198705-198803

12V 70A

sub27359-16181

sub27384-16380

main27359-16180i4AGELU..AW11198803-198912

sub27359-16181

sub27384-16380

main27359-63021i3ALU..AW10198803-198912

sub27359-63081

main27359-63021i3ALU..AW10198411-198803

12V 70A

sub27359-63081

main27359-63041i3ALU..AW10198406-198411

12V 60A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-16011i4AG#..AW11198803-198912

sub27370-54450

main27370-16011i4AG#..AW11198406-198803

12V 60A,70A

sub27370-54450

main27370-63021i3ALU..AW10198406-198803

12V 60A,70A

sub27370-70300

main27370-63021i3ALU..AW10198803-198912

sub27370-70300

27371BRUSH, ALTERNATOR

main27371-63020i3ALU,4AG#..AW1#198406-198803

12V 60A,70A

sub27371-70300

main27371-63020i3ALU,4AG#..AW1#198803-198912

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-63020i3ALU,4AGELU..AW1#198406-198501

12V 60A,70A

sub27372-87501

main27372-72100i3ALU,4AGELU..AW1#198501-198803

12V 70A

sub27372-63020

main27372-72100i3ALU,4AG#..AW1#198803-198912

sub27372-63020

27411PULLEY, ALTERNATOR

main27411-16010i4AGELU..AW11..5F198406-198411

12V 60A

main27411-16180i3ALU,4AGZE..AW1#198705-198803

12V 70A

main27411-16180i4AG#..AW11198803-198912

main27411-63021i3ALU..AW10198406-198411

12V 60A

main27411-63080i4AGELU..AW11..4FC198406-198501

12V 70A

sub27411-63021

main27411-63081i3ALU..AW10198803-198912

sub27411-16180

main27411-63081i3ALU,4AG#..AW1#198501-198706

12V 70A

sub27411-16180

27443COVER, ALTERNATOR BEARING

main27443-63020i4AGZE..AW11198803-198912

main27443-63020i3ALU,4AG#..AW1#198406-198803

12V 60A,70A

27700AREGULATOR ASSY, GENERATOR

main27700-63021i3ALU,4AGELU..AW1#198803-198812

sub27700-70030

main27700-63021i3ALU,4AGELU..AW1#198406-198803

12V 60A,70A

sub27700-70030

main27700-64021i4AGZE..AW11198608-198803

12V 70A

main27700-64021i4AGZE..AW11198803-198912

main27700-70030i3ALU,4AGELU..AW1#198812-198912

2738763020INSULATOR, TERMINAL

main27387-63020

2738770170INSULATOR, TERMINAL

main27387-70170

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510038

main90105-10038

9017906158

main90179-06158

9161160840

main91611-60840

9331914025

main93319-14025

28 parts on this diagram · 3 diagrams in section
