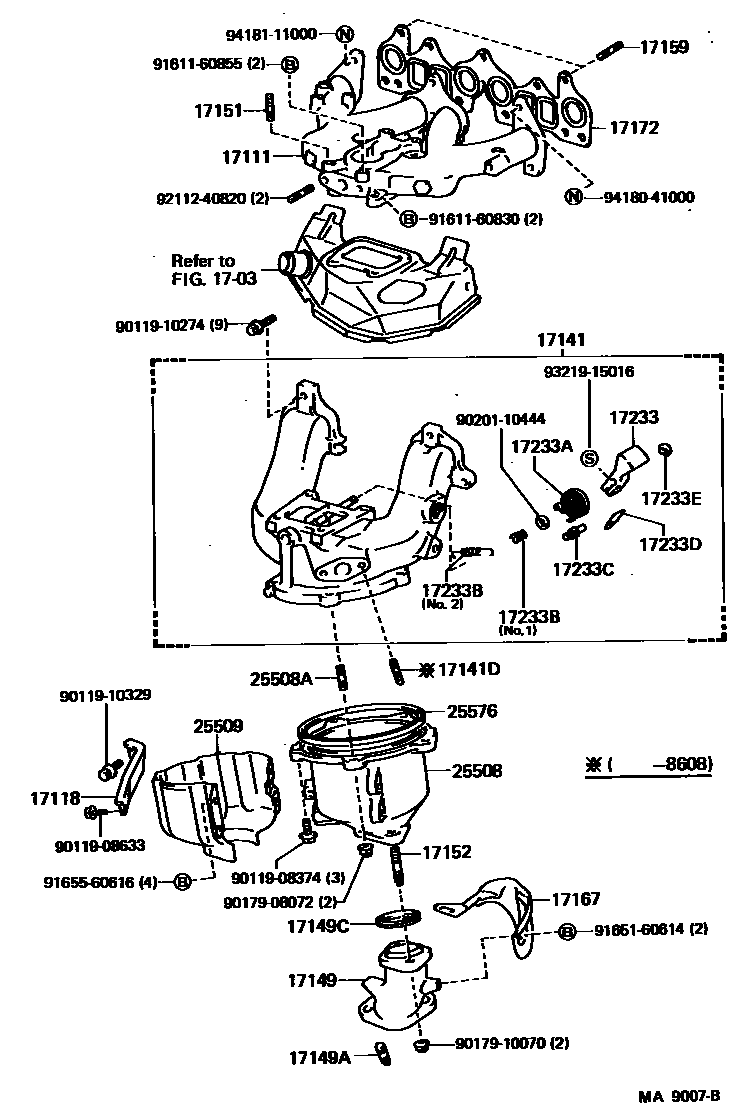

MANIFOLD
1703
17111MANIFOLD, INTAKE
17141MANIFOLD, EXHAUST
17141DBOLT, STUD(FOR OXYGEN SENSOR)
17149EXTENSION, EXHAUST MANIFOLD
17149ABOLT, STUD(FOR MANIFOLD EXTENSION)
17149CGASKET(FOR MANIFOLD EXTENSION)
sub90917-06039
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD
INTAKE MANIFOLD,L=45,S=12&12
INTAKE MANIFOLD,L=47,S=13&13
INTAKE MANIFOLD
EXHAUST MANIFOLD
L=44,S=12&20
INTAKE MANIFOLD
17172GASKET, MANIFOLD TO CYLINDER HEAD
sub17172-14011
17233COUNTER WEIGHT
17233ASPRING, SPIRAL, NO.1(FOR COUNTER WEIGHT)
17233BSPRING, SPIRAL, NO.2(FOR COUNTER WEIGHT)
NO.1
NO.2
17233CBOLT(FOR COUNTER WEIGHT)
17233DSHIM(FOR COUNTER WEIGHT)
17233ERING, E(FOR COUNTER WEIGHT)
25508CONVERTER SUB-ASSY, MANIFOLD
25508ABOLT, STUD(FOR MANIFOLD CONVERTER)
25509INSULATOR SUB-ASSY, MANIFOLD CONVERTOR
25576GASKET, MANIFOLD CONVERTER
sub25576-15020
9011908374
main90119-08374
9011908633
main90119-08633
9011910274
main90119-10274
9011910329
main90119-10329
9017908072
main90179-08072
9017910070
main90179-10070
9020110444
main90201-10444
9161160830
main91611-60830
9161160855
main91611-60855
9165160614
main91651-60614
9165560616
main91655-60616
9211240820
main92112-40820
9321915016
main93219-15016
9418041000
main94180-41000
9418111000
main94181-11000
38 parts on this diagram · 4 diagrams in section
