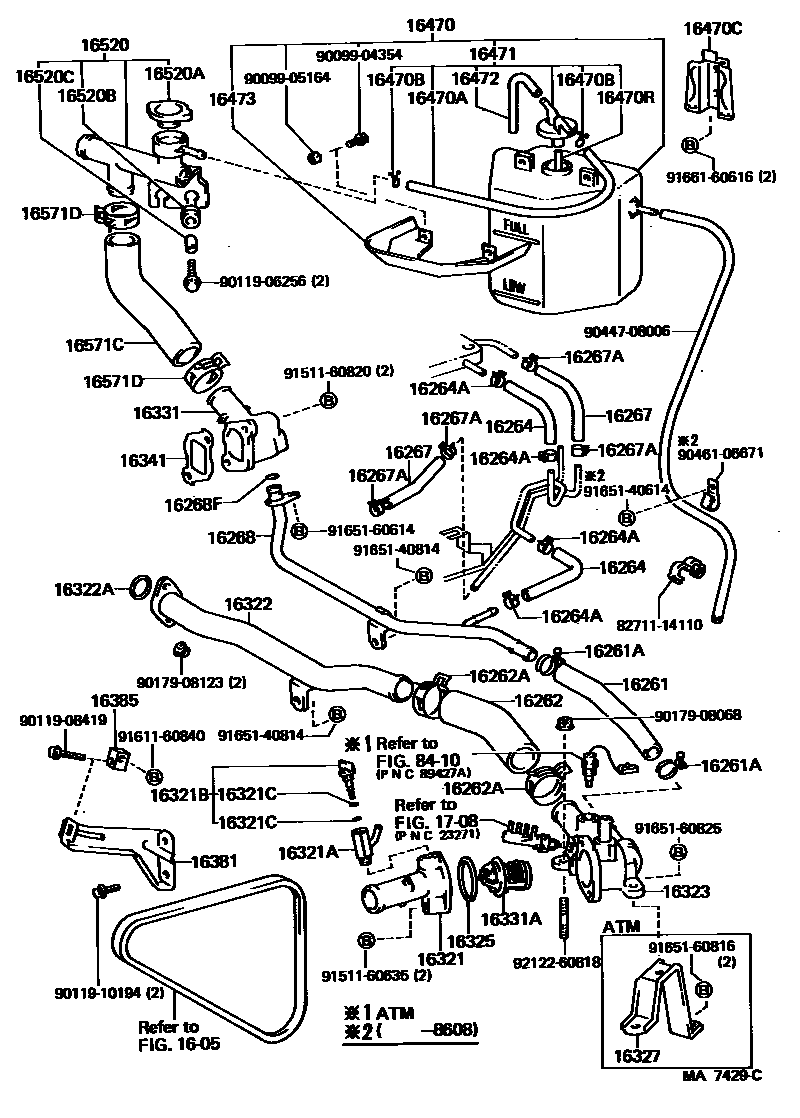

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

1605

16261HOSE, WATER BY-PASS

main16261-15010i3ALU,4AG#..AW1#198406-198912

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main96112-10250i3ALU,4AG#..AW1#198406-198912

16262HOSE, WATER INLET

main16262-15010i3ALU,4AG#..AW1#198406-198912

16262ACLIP(FOR WATER INLET HOSE)

main90467-34002i3ALU,4AGELU..AW1#198406-198601

sub90467-34003

main90467-34003i3ALU,4AG#..AW1#198601-198912

sub90467-34004

16264HOSE, WATER BY-PASS, NO.2

main16264-15030i3ALU..AW10198406-198912

main16264-16030i4AGELU..AW11198406-198912

main16264-16040i4AGZE..AW11198608-198705

sub16264-16041

main16264-16041i4AGZE..AW11198705-198912

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-11009i3ALU..AW10198406-198912

sub96135-51100

main90467-11049i3ALU..AW10198803-198901

sub90467-11009

main90467-13001i4AG#..AW11198406-198912

sub96135-51300

16267HOSE, WATER BY-PASS, NO.3

main16267-16010i4AGELU..AW11198406-198912

main16267-16030i4AGZE..AW11198608-198705

sub16267-16031

main16267-16031i4AGZE..AW11198705-198912

main99555-00100i3ALU..AW10198406-198912

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90467-11009i3ALU..AW10198406-198912

sub96135-51100

main90467-11049i3ALU..AW10198803-198901

sub90467-11009

main90467-13001i4AG#..AW11198406-198912

sub96135-51300

16268PIPE, WATER BY-PASS, NO.1

main16268-15020i3ALU..AW10198406-198609

main16268-15050i3ALU..AW10198609-198912

main16268-16030i4AGELU..AW11198406-198608

sub16268-16070

main16268-16040i4AGZE..AW11198608-198912

sub16268-16041

main16268-16070i4AGELU..AW11198608-198912

sub16268-16071

16268FRING, O(FOR WATER BY-PASS PIPE)

main96711-24013i3ALU,4AG#..AW1#198406-198912

16321INLET, WATER

main16321-16010i3ALU,4AGELU..AW1#198406-198608

main16321-16011i3ALU,4AG#..AW1#198608-198912

16321AUNION(FOR WATER INLET)

main90404-08002i3ALU,4AG#..AW1#198406-198912

16321BPLUG, DRAIN COCK(FOR WATER INLET UNION)

main90910-09081i3ALU,4AG#..AW1#198406-198912

sub90910-09093

16321CRING, O(FOR WATER INLET UNION DRAIN COCK PLUG)

main96761-19004i3ALU,4AG#..AW1#198406-198912

ID=4

main96761-19006i3ALU,4AG#..AW1#198406-198912

ID=6

16322PIPE, WATER INLET

main16322-15010i3ALU..AW10198406-198609

main16322-15030i3ALU..AW10198609-198912

16322ARING, O(FOR WATER INLET)

main96711-24035i3ALU..AW10198406-198912

sub96761-24035

16323HOUSING, WATER INLET

main16323-15030i3ALU..AW10..4FC198406-198912

main16323-15040i3ALU..AW10..5F198406-198912

main16323-16030i4AG#..AW11198406-198912

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i3ALU,4AG#..AW1#198406-198912

sub16325-63011

16327BRACKET, WATER INLET HOUSING

main16327-15010i3ALU,4AGELU..AW1#..4FC198406-198608

16331OUTLET, WATER

main16331-15060i3ALU..AW10198406-198912

main16331-16030i4AGELU..AW11198406-198912

main16331-16070i4AGZE..AW11198608-198912

16331ATHERMOSTAT

main90916-03046i3ALU..AW10198406-198912

main90916-03060i4AG#..AW11198702-198912

sub90916-03090

16341GASKET, WATER OUTLET

main16341-15011i3ALU..AW10198406-198912

sub16341-15012

main16341-16010i4AG#..AW11198406-198701

sub16341-16020

main16341-16020i4AG#..AW11198701-198912

16381BAR, FAN BELT ADJUSTING

main16381-16021i3ALU..AW10198406-198912

main16381-16030i4AGELU..AW11198406-198912

sub16381-16050

16385SLIDER, FAN BELT ADJUSTING

main16385-15010i3ALU..AW10198406-198912

16470TANK ASSY, RADIATOR RESERVE

main16470-16020i3ALU,4AGELU..AW1#198406-198511

main16470-16021i3ALU,4AGELU..AW1#198511-198912

main16470-16060i3ALU,4AGZE..AW1#198608-198912

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12043i3ALU,4AG#..AW1#198406-198803

sub90445-12078

main90445-12043i3ALU,4AG#..AW1#198803-198912

sub90445-12078

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i3ALU,4AG#..AW1#198406-198912

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16611-16010i3ALU,4AGELU..AW1#198406-198511

main16611-16050i3ALU,4AG#..AW1#198511-198912

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12043i3ALU,4AG#..AW1#198604-198803

sub90445-12078

main90445-12078i3ALU,4AGELU..AW1#198803-198912

16471CAP SUB-ASSY, RESERVE TANK

main16405-16020i3ALU,4AG#..AW1#198406-198912

16472HOSE, BREATHER

main85338-22030i3ALU,4AG#..AW1#198406-198912

16473SUPPORT(FOR RADIATOR RESERVE TANK)

main16473-16021i3ALU,4AGELU..AW1#198511-198912

16520FILLER ASSY, WATER

main16520-15011i3ALU..AW10198406-198912

main16520-16011i4AG#..AW11198406-198912

16520ACAP SUB-ASSY, WATER FILLER

main16401-63010i3ALU,4AG#..AW1#198406-198912

16520BBUSHING(FOR WATER FILLER)

main16444-15010i3ALU,4AG#..AW1#198406-198912

16520CPIPE(FOR WATER FILLER)

main16445-15010i3ALU,4AG#..AW1#198406-198912

16571CHOSE, RADIATOR, NO.1

main16571-15120i3ALU..AW10198406-198912

main16571-16030i4AGELU..AW11198406-198912

main16571-16080i4AGZE..AW11198608-198912

16571DCLIP, RADIATOR HOSE, NO.1

main90467-34002i3ALU,4AGELU..AW1#198406-198601

sub90467-34003

main90467-34003i3ALU,4AG#..AW1#198601-198912

sub90467-34004

1708

8410

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9009904354

main90099-04354

9009905164

main90099-05164

9011906256

main90119-06256

9011908419

main90119-08419

9011910194

main90119-10194

9017908068

main90179-08068

9017908123

main90179-08123

9044708006

main90447-08006

9046106671

main90461-06671

9151160635

main91511-60635

9151160820

main91511-60820

9161160840

main91611-60840

9165140614

main91651-40614

9165140814

main91651-40814

9165160614

main91651-60614

9165160816

main91651-60816

9165160825

main91651-60825

9166160616

main91661-60616

9212260818

main92122-60818

61 parts on this diagram · 3 diagrams in section
