RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

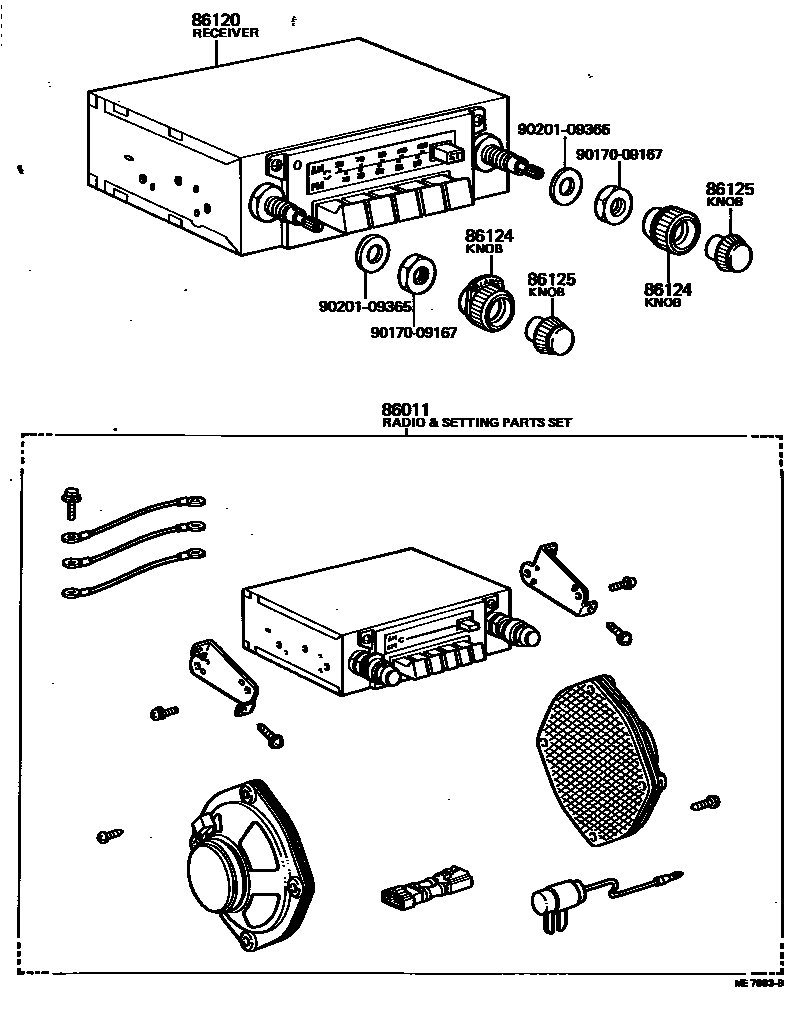

86011RADIO & SETTING PARTS SET

main86011-19355iKE7#..STD197903-198108

AM

main86011-19365iAE70,KE70,TE70,71197903-198108

AM/FM,MULTIPLEX

86120RECEIVER ASSY, RADIO

main86120-12230iAE70,KE7#,TE7#197903-198108

AM

main86120-12240iAE70,KE70,TE70,71197903-198108

AM/FM,MULTIPLEX

main86120-14420iAE70,CE7#,KE7#,TE7#198108-198408

AM

sub86120-14421

main86120-14421iCE7#,KE7#198408-198707

AM

sub86120-10260

sub86203-20180

main86120-19015iCE72,KE73..GL198108-198408

AM/FM,MULTIPLEX

sub86120-19016

main86120-19016iCE72,KE73..GL198408-198707

86124KNOB, RADIO RECEIVER CONTROL

main86124-12010iAE70,KE7#,TE7#197903-198108

main86124-14040iAE70,KE70,TE70,71197903-198108

BALANCE

86125KNOB, RADIO RECEIVER SWITCH

main86125-12011iAE70,KE7#,TE7#197903-198108

9017009167

main90170-09167

9020109365

main90201-09365

6 parts on this diagram · 7 diagrams in section
