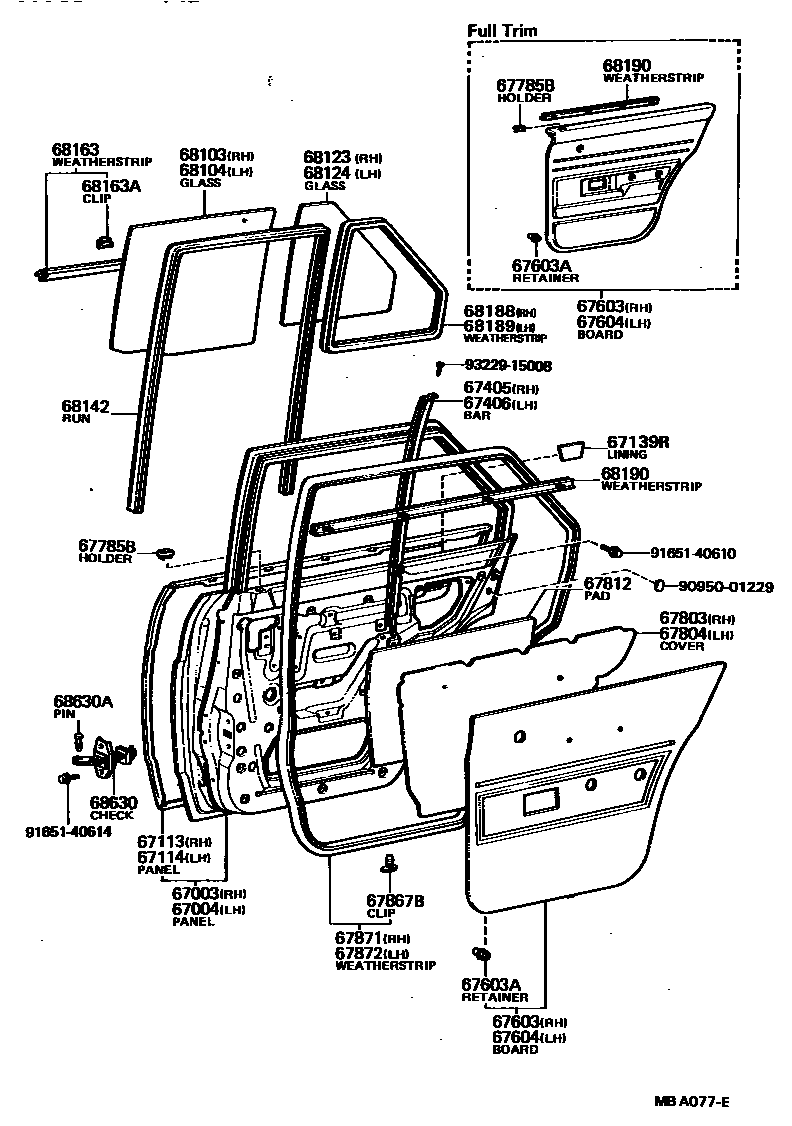

REAR DOOR PANEL & GLASS
67139RLINING, DOOR OUTSIDE PANEL REINFORCEMENT
67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
LIME,LIGHT BROWN,BROWN,TRIM4#
sub67630-12231
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
LIGHT BROWN,BROWN,TRIM4#
67603ARETAINER(FOR REAR DOOR TRIM BOARD)
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
LIME,LIGHT BROWN,BROWN,TRIM4#
sub67640-12231
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
LIGHT BROWN,BROWN,TRIM4#
67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
sub67841-12120
67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH
sub67841-12120
67812PAD, REAR DOOR SILENCER
sub67812-12010
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TT,T=3.5
TEN MILLIONS EDITION
BRONZE,*TT,T=3.5
*TT,T=3.5
68104GLASS SUB-ASSY, REAR DOOR, LH
*TT,T=3.5
TEN MILLIONS EDITION
BRONZE,*TT,T=3.5
*TEM,T=3.5
*TT,T=3.5
68123GLASS, REAR DOOR WINDOW, RH
*TT,T=3.5
TEN MILLIONS EDITION
BRONZE,*TT,T=3.5
*TT,T=3.5
68124GLASS, REAR DOOR WINDOW, LH
*TT,T=3.5
BRONZE,*TT,T=3.5
TEN MILLIONS EDITION
*TT,T=3.5
68142RUN, REAR DOOR GLASS
L=1829.5
68163WEATHERSTRIP, REAR DOOR GLASS, OUTER
68163ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
LH
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
LIME
9095001229
main90950-01229
9165140610
main91651-40610
9165140614
main91651-40614
9322915008
main93229-15008
33 parts on this diagram · 1 diagram in section
