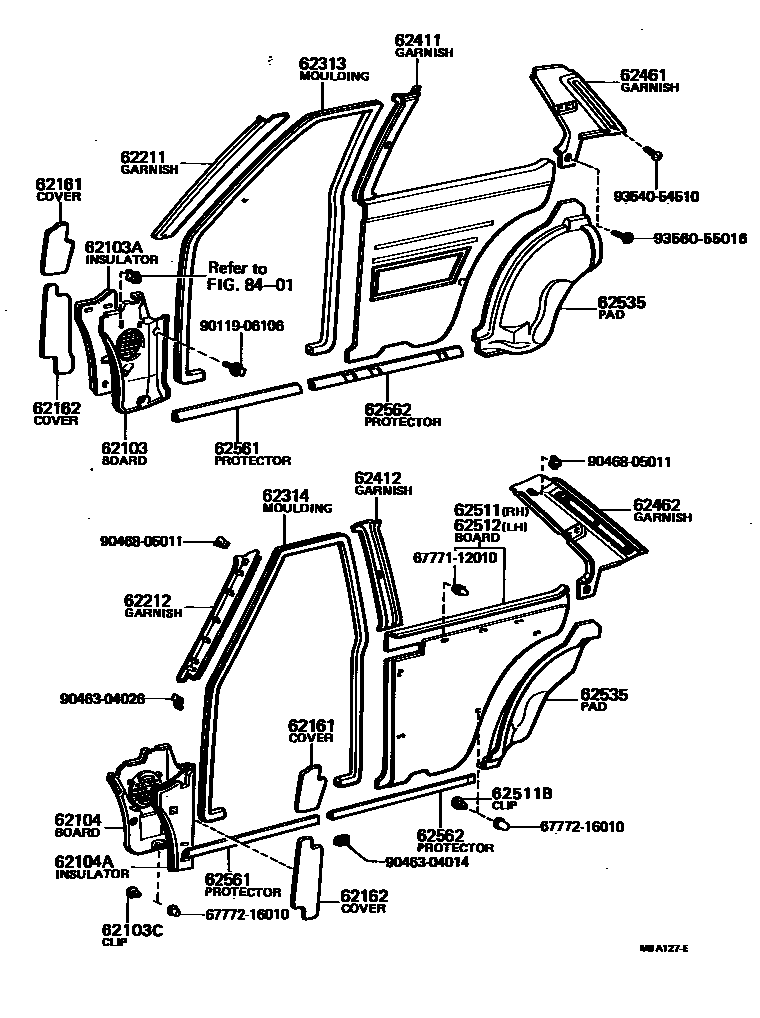

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0009 1

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-12050-01iAE70,KE7#,TE7#..SED,V197903-198202

BLACK,BLACK,TRIM2#

main62101-12050-04iAE70,KE70,TE70,71..SED..(CTD,DX,GL,GT,SE,SX)197903-198202

BLUE,BLUE,TRIM8#

main62101-12050-06iAE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE)197903-198008

L-BROWN,BROWN,TRIM4#

main62101-12050-16iAE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE)198008-198108

L-BROWN,BROWN,TRIM4#

main62101-12050-26iAE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE,SX)198108-198202

DARK BROWN,BROWN,TRIM4#

main62101-12070-01iAE70,CE7#,KE7#,TE7#198202-198308

BLACK,BLACK,TRIM2#

main62101-12070-02iCE7#,KE7#..DX,GL198308-198409

MAROON,RED/MAROON,TRIM3#

main62101-12070-03iCE7#,KE7#198308-198508

GRAY,GRAY,TRIM1#

main62101-12070-04iAE70,CE70,KE70,TE71..SED..(CTD,DX,GL,GT,SE,SX)198202-198304

BLUE,BLUE,TRIM8#

main62101-12070-13iCE7#,KE7#198508-198707

GRAY,GRAY,TRIM1#

main62101-12070-26iAE70,CE7#,KE7#,TE7#..(SED,V,WG)..(CTD,DX,GL,GT,SE,SX)198202-198308

DARK BROWN,BROWN,TRIM4#

main62101-12070-36iCE7#,KE7#..DX,GL198409-198707

BROWN,BROWN,TRIM4#

main62101-12080-01iAE70,KE70,TE70,71..CP,HT,LB197903-198304

BLACK,BLACK,TRIM2#

main62101-12080-04iAE70,KE70,TE70,71..CP,HT,LB197903-198304

BLUE,BLUE,TRIM8#

main62101-12080-06iAE70,KE70,TE70,71..CP,HT,LB197903-198304

DARK BROWN,BROWN,TRIM4#

62103AINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-12030iAE70,CE7#,KE7#,TE7#197903-198707

62103CCLIP, COWL SIDE TRIM BOARD SET

main90467-09012-01×2iAE70,CE7#,KE7#,TE7#197903-198308

BLACK,BLACK,TRIM2#

main90467-09012-02×2iCE7#,KE7#..DX,GL198308-198409

MAROON,RED/MAROON,TRIM3#

main90467-09012-04×2iAE70,CE70,KE70,TE70,71..CTD,DX,GL,GT,LVN,LVS,SE,SL,SR,SX197903-198304

BLUE,BLUE,TRIM8#

main90467-09012-06×2iAE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE)197903-198008

L-BROWN,BROWN,TRIM4#

main90467-09012-13×2iCE7#,KE7#198308-198508

GRAY,GRAY,TRIM1#

main90467-09012-16×2iAE70,CE7#,KE7#,TE71..CTD,DX,GL,GT,LVN,LVS,SE,SR,SX198108-198308

DARK BROWN,BROWN,TRIM4#

main90467-09012-26×2iAE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE)198008-198108

L-BROWN,BROWN,TRIM4#

main90467-09012-33×2iCE7#,KE7#198508-198707

GRAY,GRAY,TRIM1#

main90467-09012-36×2iCE7#,KE7#..DX,GL198409-198707

LIGHT BROWN,SEPIA BROWN,TRIM4#

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-12060-01iAE70,CE7#,KE7#,TE7#..SED,V,WG197903-198308

BLACK,BLACK,TRIM2#

main62102-12060-02iCE7#,KE7#..DX,GL198308-198409

MAROON,RED/MAROON,TRIM3#

main62102-12060-03iCE7#,KE7#198308-198508

GRAY,GRAY,TRIM1#

main62102-12060-04iAE70,CE70,KE70,TE70,71..SED..(CTD,DX,GL,GT,SE,SX)197903-198304

BLUE,BLUE,TRIM8#

main62102-12060-06iAE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE)197903-198008

L-BROWN,BROWN,TRIM4#

main62102-12060-13iCE7#,KE7#198508-198707

GRAY,GRAY,TRIM1#

main62102-12060-16iAE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE)198008-198108

L-BROWN,BROWN,TRIM4#

main62102-12060-26iAE70,CE7#,KE7#,TE7#..(SED,V,WG)..(CTD,DX,GL,GT,SE,SX)198108-198308

DARK BROWN,BROWN,TRIM4#

main62102-12060-36iCE7#,KE7#..DX,GL198409-198707

BROWN,BROWN,TRIM4#

main62102-12080-01iAE70,KE70,TE70,71..CP,HT,LB197903-198304

BLACK,BLACK,TRIM2#

main62102-12080-04iAE70,KE70,TE70,71..CP,HT,LB197903-198304

BLUE,BLUE,TRIM8#

main62102-12080-06iAE70,KE70,TE70,71..CP,HT,LB197903-198304

DARK BROWN,BROWN,TRIM4#

62104AINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-12020iAE70,KE7#,TE7#197903-198004

main62106-12030iAE70,CE7#,KE7#,TE7#198004-198707

62161COVER, COWL SIDE TRIM SERVICE HOLE, UPPER

main61197-12010iAE70,CE7#,KE7#,TE7#..SED,V,WG197903-198707

RH

main61198-12010iAE70,CE7#,KE7#,TE7#..SED,V,WG197903-198707

LH

62162COVER, COWL SIDE TRIM SERVICE HOLE, LOWER

main62161-12030iAE70,CE7#,KE7#,TE7#..SED,V,WG197903-198707

RH

main62162-12030iAE70,CE7#,KE7#,TE7#..SED,V,WG197903-198707

LH

62211GARNISH, FRONT PILLAR, RH

main62211-12120-01iAE70,CE70,KE70,TE70,71..SED197903-198304

BLACK,BLACK,TRIM2#

main62211-12120-04iAE70,CE70,KE70,TE70,71..SED..(CTD,DX,GL,GT,SE,SX)197903-198304

BLUE,BLUE,TRIM8#

main62211-12120-06iAE70,KE70,TE70,71..SED..(CTD,DX,GL,GT,SE)197903-198008

L-BROWN,BROWN,TRIM4#

main62211-12120-16iAE70,KE70,TE70,71..SED..(CTD,DX,GL,GT,SE)198008-198108

L-BROWN,BROWN,TRIM4#

main62211-12120-26iAE70,CE70,KE70,TE71..SED..(CTD,DX,GL,GT,SE,SX)198108-198304

DARK BROWN,BROWN,TRIM4#

main62211-12130-01iAE70,KE70,TE70,71..CP,HT,LB197903-198304

BLACK,BLACK,TRIM2#

main62211-12130-04iAE70,KE70,TE70,71..CP,HT,LB197903-198304

BLUE,BLUE,TRIM8#

main62211-12130-06iAE70,KE70,TE70,71..CP,HT,LB197903-198304

DARK BROWN,BROWN,TRIM4#

main62211-13020-01iCE71,KE71,72,73,TE73,74197908-198308

BLACK,BLACK,TRIM2#

main62211-13020-02iCE7#,KE7#..DX,GL198308-198409

MAROON,RED/MAROON,TRIM3#

main62211-13020-03iCE7#,KE7#198308-198508

GRAY,GRAY,TRIM1#

main62211-13020-06iKE71,TE73..DX,GL197908-198008

L-BROWN,BROWN,TRIM4#

main62211-13020-13iCE7#,KE7#198508-198707

GRAY,GRAY,TRIM1#

main62211-13020-16iKE71,TE73..DX,GL198008-198108

L-BROWN,BROWN,TRIM4#

main62211-13020-26iCE71,KE72,73,TE74..DX,GL198108-198308

DARK BROWN,BROWN,TRIM4#

main62211-13020-36iCE7#,KE7#..DX,GL198409-198707

BROWN,BROWN,TRIM4#

62212GARNISH, FRONT PILLAR, LH

main62212-12120-01iAE70,CE70,KE70,TE70,71..SED197903-198304

BLACK,BLACK,TRIM2#

main62212-12120-04iAE70,CE70,KE70,TE70,71..SED..(CTD,DX,GL,GT,SE,SX)197903-198304

BLUE,BLUE,TRIM8#

main62212-12120-06iAE70,KE70,TE70,71..SED..(CTD,DX,GL,GT,SE)197903-198008

L-BROWN,BROWN,TRIM4#

main62212-12120-16iAE70,KE70,TE70,71..SED..(CTD,DX,GL,GT,SE)198008-198108

L-BROWN,BROWN,TRIM4#

main62212-12120-26iAE70,CE70,KE70,TE71..SED..(CTD,DX,GL,GT,SE,SX)198108-198304

DARK BROWN,BROWN,TRIM4#

main62212-12130-01iAE70,KE70,TE70,71..CP,HT,LB197903-198304

BLACK,BLACK,TRIM2#

main62212-12130-04iAE70,KE70,TE70,71..CP,HT,LB197903-198304

BLUE,BLUE,TRIM8#

main62212-12130-06iAE70,KE70,TE70,71..CP,HT,LB197903-198304

DARK BROWN,BROWN,TRIM4#

main62212-13020-01iCE71,KE71,72,73,TE73,74197908-198308

BLACK,BLACK,TRIM2#

main62212-13020-02iCE7#,KE7#..DX,GL198308-198409

MAROON,RED/MAROON,TRIM3#

main62212-13020-03iCE7#,KE7#198308-198508

GRAY,GRAY,TRIM1#

main62212-13020-06iKE71,TE73..DX,GL197908-198008

L-BROWN,BROWN,TRIM4#

main62212-13020-13iCE7#,KE7#198508-198707

GRAY,GRAY,TRIM1#

main62212-13020-16iKE71,TE73..DX,GL198008-198108

L-BROWN,BROWN,TRIM4#

main62212-13020-26iCE71,KE72,73,TE74..DX,GL198108-198308

DARK BROWN,BROWN,TRIM4#

main62212-13020-36iCE7#,KE7#..DX,GL198409-198707

BROWN,BROWN,TRIM4#

62313MOULDING, FRONT DOOR OPENING TRIM, RH

main62313-12070-01iKE70,71,72,TE73,74..(SED,V)..2D197903-198308

BLACK,BLACK,TRIM2#

main62313-12070-02iCE71,KE72..DX..2D198308-198409

MAROON,RED/MAROON,TRIM3#

main62313-12070-03iCE71,KE72..2D198308-198508

GRAY,GRAY,TRIM1#

main62313-12070-04iKE70..SED..(DX,GL)..2D197903-198304

BLUE,BLUE,TRIM8#

main62313-12070-06iKE7#,TE73..(SED,V)..(DX,GL)..2D197903-198008

L-BROWN,BROWN,TRIM4#

main62313-12070-13iCE71,KE72..2D198508-198707

GRAY,GRAY,TRIM1#

main62313-12070-16iKE7#,TE73..(SED,V)..(DX,GL)..2D198008-198108

L-BROWN,BROWN,TRIM4#

main62313-12070-26iKE70,72,TE74..(SED,V)..DX..2D198108-198308

DARK BROWN,BROWN,TRIM4#

main62313-12070-36iCE71,KE72..DX..2D198409-198707

BROWN,BROWN,TRIM4#

main62313-12080-01iAE70,CE7#,KE7#,TE7#..4D197903-198308

BLACK,BLACK,TRIM2#

main62313-12080-02iCE7#,KE7#..(DX,GL)..4D198308-198409

MAROON,RED/MAROON,TRIM3#

main62313-12080-03iCE7#,KE7#..4D198308-198508

GRAY,GRAY,TRIM1#

main62313-12080-04iAE70,CE70,KE70,TE70,71..(CTD,DX,GL,GT,SE,SX)..4D197903-198304

BLUE,BLUE,TRIM8#

main62313-12080-06iAE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D197903-198008

L-BROWN,BROWN,TRIM4#

main62313-12080-13iCE7#,KE7#..4D198508-198707

GRAY,GRAY,TRIM1#

main62313-12080-16iAE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D198008-198108

L-BROWN,BROWN,TRIM4#

main62313-12080-26iAE70,CE7#,KE7#,TE7#..(CTD,DX,GL,GT,SE,SX)..4D198108-198308

DARK BROWN,BROWN,TRIM4#

main62313-12080-36iCE7#,KE7#..(DX,GL)..4D198409-198707

BROWN,BROWN,TRIM4#

main62313-12090-01iAE70,KE70,TE70,71..CP,HT,LB197903-198304

BLACK,BLACK,TRIM2#

main62313-12090-04iAE70,KE70,TE70,71..CP,HT,LB197903-198304

BLUE,BLUE,TRIM8#

main62313-12090-06iAE70,KE70,TE70,71..CP,HT,LB197903-198304

DARK BROWN,BROWN,TRIM4#

62314MOULDING, FRONT DOOR OPENING TRIM, LH

main62313-12070-01iKE70,71,72,TE73,74..(SED,V)..2D197903-198308

BLACK,BLACK,TRIM2#

main62313-12070-02iCE71,KE72..DX..2D198308-198409

MAROON,RED/MAROON,TRIM3#

main62313-12070-03iCE71,KE72..2D198308-198508

GRAY,GRAY,TRIM1#

main62313-12070-04iKE70..SED..(DX,GL)..2D197903-198304

BLUE,BLUE,TRIM8#

main62313-12070-06iKE7#,TE73..(SED,V)..(DX,GL)..2D197903-198008

L-BROWN,BROWN,TRIM4#

main62313-12070-13iCE71,KE72..2D198508-198707

GRAY,GRAY,TRIM1#

main62313-12070-16iKE7#,TE73..(SED,V)..(DX,GL)..2D198008-198108

L-BROWN,BROWN,TRIM4#

main62313-12070-26iKE70,72,TE74..(SED,V)..DX..2D198108-198308

DARK BROWN,BROWN,TRIM4#

main62313-12070-36iCE71,KE72..DX..2D198409-198707

BROWN,BROWN,TRIM4#

main62313-12080-01iAE70,CE7#,KE7#,TE7#..4D197903-198308

BLACK,BLACK,TRIM2#

main62313-12080-02iCE7#,KE7#..(DX,GL)..4D198308-198409

MAROON,RED/MAROON,TRIM3#

main62313-12080-03iCE7#,KE7#..4D198308-198508

GRAY,GRAY,TRIM1#

main62313-12080-04iAE70,CE70,KE70,TE70,71..(CTD,DX,GL,GT,SE,SX)..4D197903-198304

BLUE,BLUE,TRIM8#

main62313-12080-06iAE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D197903-198008

L-BROWN,BROWN,TRIM4#

main62313-12080-13iCE7#,KE7#..4D198508-198707

GRAY,GRAY,TRIM1#

main62313-12080-16iAE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D198008-198108

L-BROWN,BROWN,TRIM4#

main62313-12080-26iAE70,CE7#,KE7#,TE7#..(CTD,DX,GL,GT,SE,SX)..4D198108-198308

DARK BROWN,BROWN,TRIM4#

main62313-12080-36iCE7#,KE7#..(DX,GL)..4D198409-198707

BROWN,BROWN,TRIM4#

main62313-12090-01iAE70,KE70,TE70,71..CP,HT,LB197903-198304

BLACK,BLACK,TRIM2#

main62313-12090-04iAE70,KE70,TE70,71..CP,HT,LB197903-198304

BLUE,BLUE,TRIM8#

main62313-12090-06iAE70,KE70,TE70,71..CP,HT,LB197903-198304

DARK BROWN,BROWN,TRIM4#

62411GARNISH, CENTER PILLAR, RH

main62411-12130-01iKE70..SED..GL..2D197903-198108

BLACK,BLACK,TRIM2#

main62411-12130-04iKE70..SED..GL..2D197903-198108

BLUE,BLUE,TRIM8#

main62411-12130-06iKE70..SED..GL..2D197903-198008

L-BROWN,BROWN,TRIM4#

main62411-12130-16iKE70..SED..GL..2D198008-198108

L-BROWN,BROWN,TRIM4#

main62411-12150-01iKE7#..(CTD,DX,STD)..4D197903-198108

*NLR BELT,BLACK,BLACK,TRIM2#

main62411-12150-04iKE70..(CTD,DX)..4D197903-198108

*NLR BELT,BLUE,BLUE,TRIM8#

main62411-12150-06iKE7#..(CTD,DX)..4D197903-198008

*NLR BELT,L-BROWN,BROWN,TRIM4#

main62411-12150-16iKE7#..(CTD,DX)..4D198008-198108

*NLR BELT,L-BROWN,BROWN,TRIM4#

main62411-12180-01iAE70,KE70,TE70,71..CP197903-198304

BLACK,BLACK,TRIM2#

main62411-12180-04iAE70,KE70,TE70,71..CP197903-198304

BLUE,BLUE,TRIM8#

main62411-12180-06iAE70,KE70,TE70,71..CP197903-198304

DARK WINE,BROWN

main62413-12140-01iAE70,KE70,TE70,71..LB197903-198304

BLACK,BLACK,TRIM2#

main62413-12140-04iAE70,KE70,TE70,71..LB197903-198304

BLUE,BLUE,TRIM8#

main62413-12140-06iAE70,KE70,TE70,71..LB197903-198304

DARK BROWN,BROWN,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62412-12130-01iKE70..SED..GL..2D197903-198108

BLACK,BLACK,TRIM2#

main62412-12130-04iKE70..SED..GL..2D197903-198108

BLUE,BLUE,TRIM8#

main62412-12130-06iKE70..SED..GL..2D197903-198008

L-BROWN,BROWN,TRIM4#

main62412-12130-16iKE70..SED..GL..2D198008-198108

L-BROWN,BROWN,TRIM4#

main62412-12150-01iKE7#..(CTD,DX,STD)..4D197903-198108

*NLR BELT,BLACK,BLACK,TRIM2#

main62412-12150-04iKE70..(CTD,DX)..4D197903-198108

*NLR BELT,BLUE,BLUE,TRIM8#

main62412-12150-06iKE7#..(CTD,DX)..4D197903-198008

*NLR BELT,L-BROWN,BROWN,TRIM4#

main62412-12150-16iKE7#..(CTD,DX)..4D198008-198108

*NLR BELT,L-BROWN,BROWN,TRIM4#

main62412-12180-01iAE70,KE70,TE70,71..CP197903-198304

BLACK,BLACK,TRIM2#

main62412-12180-04iAE70,KE70,TE70,71..CP197903-198304

BLUE,BLUE,TRIM8#

main62412-12180-06iAE70,KE70,TE70,71..CP197903-198304

DARK BROWN,BROWN,TRIM4#

main62414-12140-01iAE70,KE70,TE70,71..LB197903-198304

BLACK,BLACK,TRIM2#

main62414-12140-04iAE70,KE70,TE70,71..LB197903-198304

BLUE,BLUE,TRIM8#

main62414-12140-06iAE70,KE70,TE70,71..LB197903-198304

DARK BROWN,BROWN,TRIM4#

62461GARNISH, ROOF SIDE TRIM, RH

main62405-12010-01iAE70,CE70,KE70,TE70,71..4D197903-198304

BLACK,BLACK,TRIM2#

main62405-12010-04iAE70,CE70,KE70,TE70,71..(CTD,DX,GL,GT,SE,SX)..4D197903-198304

BLUE,BLUE,TRIM8#

main62405-12010-06iAE70,KE70,TE70,71..(CTD,DX,GL,GT,SE)..4D197903-198008

L-BROWN,BROWN,TRIM4#

main62405-12010-16iAE70,KE70,TE70,71..(CTD,DX,GL,GT,SE)..4D198008-198108

L-BROWN,BROWN,TRIM4#

main62405-12010-26iAE70,CE70,KE70,TE71..(CTD,DX,GL,GT,SE,SX)..4D198108-198304

DARK BROWN,BROWN,TRIM4#

main62470-12010-01iAE70,KE70,TE70,71..HT197903-198304

BLACK,BLACK,TRIM2#

main62470-12010-04iAE70,KE70,TE70,71..HT197903-198304

BLUE,BLUE,TRIM8#

main62470-12010-06iAE70,KE70,TE70,71..HT197903-198304

DARK BROWN,BROWN,TRIM4#

main62471-12040-01iKE70..SED..2D197903-198304

BLACK,BLACK,TRIM2#

main62471-12040-04iKE70..SED..(DX,GL)..2D197903-198304

BLUE,BLUE,TRIM8#

main62471-12040-06iKE70..SED..(DX,GL)..2D197903-198008

L-BROWN,BROWN,TRIM4#

main62471-12040-16iKE70..SED..(DX,GL)..2D198008-198108

L-BROWN,BROWN,TRIM4#

main62471-12040-26iKE70..SED..DX..2D198108-198304

DARK BROWN,BROWN,TRIM4#

main62471-12100-01iAE70,KE70,TE70,71..CP197903-198304

BLACK,BLACK,TRIM2#

main62471-12100-04iAE70,KE70,TE70,71..CP197903-198304

BLUE,BLUE,TRIM8#

main62471-12100-06iAE70,KE70,TE70,71..CP197903-198304

DARK BROWN,BROWN,TRIM4#

main62471-12110-01iAE70,KE70,TE70,71..LB197903-198304

BLACK,BLACK,TRIM2#

main62471-12110-04iAE70,KE70,TE70,71..LB197903-198304

BLUE,BLUE,TRIM8#

main62471-12110-06iAE70,KE70,TE70,71..LB197903-198304

DARK BROWN,BROWN,TRIM4#

62462GARNISH, ROOF SIDE TRIM, LH

main62406-12010-01iAE70,CE70,KE70,TE70,71..4D197903-198304

BLACK,BLACK,TRIM2#

main62406-12010-04iAE70,CE70,KE70,TE70,71..(CTD,DX,GL,GT,SE,SX)..4D197903-198304

BLUE,BLUE,TRIM8#

main62406-12010-06iAE70,KE70,TE70,71..(CTD,DX,GL,GT,SE)..4D197903-198008

L-BROWN,BROWN,TRIM4#

main62406-12010-16iAE70,KE70,TE70,71..(CTD,DX,GL,GT,SE)..4D198008-198108

L-BROWN,BROWN,TRIM4#

main62406-12010-26iAE70,CE70,KE70,TE71..(CTD,DX,GL,GT,SE,SX)..4D198108-198304

DARK BROWN,BROWN,TRIM4#

main62472-12040-01iKE70..SED..2D197903-198304

BLACK,BLACK,TRIM2#

main62472-12040-04iKE70..SED..(DX,GL)..2D197903-198304

BLUE,BLUE,TRIM8#

main62472-12040-06iKE70..SED..(DX,GL)..2D197903-198008

L-BROWN,BROWN,TRIM4#

main62472-12040-16iKE70..SED..(DX,GL)..2D198008-198108

L-BROWN,BROWN,TRIM4#

main62472-12040-26iKE70..SED..DX..2D198108-198304

DARK BROWN,BROWN,TRIM4#

main62472-12100-01iAE70,KE70,TE70,71..CP197903-198304

BLACK,BLACK,TRIM2#

main62472-12100-04iAE70,KE70,TE70,71..CP197903-198304

BLUE,BLUE,TRIM8#

main62472-12100-06iAE70,KE70,TE70,71..CP197903-198304

DARK BROWN,BROWN,TRIM4#

main62472-12110-01iAE70,KE70,TE70,71..LB197903-198304

BLACK,BLACK,TRIM2#

main62472-12110-04iAE70,KE70,TE70,71..LB197903-198304

BLUE,BLUE,TRIM8#

main62472-12110-06iAE70,KE70,TE70,71..LB197903-198304

DARK BROWN,BROWN,TRIM4#

main62480-12010-01iAE70,KE70,TE70,71..HT197903-198304

BLACK,BLACK,TRIM2#

main62480-12010-04iAE70,KE70,TE70,71..HT197903-198304

BLUE,BLUE,TRIM8#

main62480-12010-06iAE70,KE70,TE70,71..HT197903-198304

DARK BROWN,BROWN,TRIM4#

62511BOARD, QUARTER INSIDE TRIM, RH

main62510-12420-01iKE70..STD..2D197903-198108

W/*NLR BELT,BLACK

main62510-12430-01iKE70..SED..DX..2D197903-198108

W/*ELR BELT,BLACK,BLACK,TRIM2#

main62510-12430-04iKE70..SED..DX..2D197903-198108

W/*ELR BELT,BLUE,BLUE,TRIM8#

main62510-12430-06iKE70..SED..DX..2D197903-198008

W/*ELR BELT,L-BROWN,BROWN,TRIM4#

main62510-12430-16iKE70..SED..DX..2D198008-198108

W/*NLR BELT,L-BROWN,BROWN,TRIM4#

main62510-12440-01iKE70..SED..GL..2D197903-198108

BLACK,BLACK,TRIM2#

main62510-12440-04iKE70..SED..GL..2D197903-198108

BLUE,BLUE,TRIM8#

main62510-12440-06iKE70..SED..GL..2D197903-198008

L-BROWN,BROWN,TRIM4#

main62510-12440-16iKE70..SED..GL..2D198008-198108

L-BROWN,BROWN,TRIM4#

main62510-12450-01iKE70..STD..2D197903-198108

W/*ELR BELT,BLACK

main62510-12451-01iKE70..SED..2D198108-198304

BLACK,BLACK,TRIM2#

main62510-12451-04iKE70..SED..DX..2D198108-198304

BLUE,BLUE,TRIM8#

main62510-12451-06iKE70..SED..DX..2D198108-198304

L-BROWN,BROWN,TRIM4#

main62510-12460-01iKE70..SED..DX..2D197903-198108

W/*NLR BELT,BLACK,BLACK,TRIM2#

main62510-12460-04iKE70..SED..DX..2D197903-198108

W/*NLR BELT,BLUE,BLUE,TRIM8#

main62510-12460-06iKE70..SED..DX..2D197903-198008

W/*NLR BELT,L-BROWN,BROWN,TRIM4#

main62510-12460-16iKE70..SED..DX..2D198008-198108

W/*NLR BELT,L-BROWN,BROWN,TRIM4#

main62510-12470-01iKE70..HT..DX197903-198108

BLACK,BLACK,TRIM2#

main62510-12470-04iKE70..HT..DX197903-198108

BLUE,BLUE,TRIM8#

main62510-12470-06iKE70..HT..DX197903-198108

DARK BROWN,BROWN,TRIM4#

main62510-12480-01iAE70,KE70,TE71..HT198108-198304

BLACK & GRAY,BLACK,TRIM2#

main62510-12480-04iAE70,KE70,TE71..HT..(GL,GT,SX)198108-198304

BLUE & BLUE,BLUE,TRIM8#

main62510-12480-06iAE70,KE70..HT..GL197903-198108

DARK BROWN,BROWN,TRIM4#

main62510-12480-14iAE70,KE70..HT..SE198108-198304

BLUE & IVORY,BLUE,TRIM8#

main62510-12490-01iAE70,TE71..HT..(GT,SE)197903-198108

BLACK & GRAY,BLACK,TRIM2#

main62510-12490-04iAE70..HT..SE197903-198108

BLUE & IVORY,BLUE,TRIM8#

main62510-12490-06iAE70,TE71..HT..(GT,SE)197903-198108

DARK BROWN & BEIGE,BROWN,TRIM4#

main62510-12490-14iTE71..HT197903-198108

BLUE,BLUE,TRIM8#

main62510-12510-01iKE70..CP..DX197903-198108

BLACK,BLACK,TRIM2#

main62510-12510-04iKE70..CP..DX197903-198108

BLUE,BLUE,TRIM8#

main62510-12510-06iKE70..CP..DX197903-198108

DARK BROWN,BROWN,TRIM4#

main62510-12520-01iAE70,KE70,TE71..LVS,SL197903-198304

BLACK,BLACK,TRIM2#

main62510-12520-04iAE70,KE70,TE71..LVS,SL197903-198304

BLUE,BLUE,TRIM8#

main62510-12520-06iAE70,KE70,TE71..LVS,SL197903-198304

DARK BROWN,BROWN,TRIM4#

main62510-12540-01iAE70,KE70,TE70,71..LVN,SR197903-198304

BLACK,BLACK,TRIM2#

main62510-12540-04iAE70,KE70,TE70,71..LVN,SR197903-198304

BLUE,BLUE,TRIM8#

main62510-12540-06iAE70,KE70,TE70,71..LVN,SR197903-198304

DARK BROWN,BROWN,TRIM4#

main62510-12550-01iKE70..LB..DX197903-198304

BLACK,BLACK,TRIM2#

main62510-12550-04iKE70..LB..DX197903-198304

BLUE,BLUE,TRIM8#

main62510-12550-06iKE70..LB..DX197903-198304

DARK BROWN,BROWN,TRIM4#

main62510-12560-01iAE70,KE70,TE71..LB..(GL,GT,SE,SX)197903-198304

BLACK,BLACK,TRIM2#

main62510-12560-04iAE70,KE70..LB..SE197903-198304

BLUE,BLUE,TRIM8#

main62510-12560-06iAE70,KE70,TE71..LB..(GL,GT,SE,SX)197903-198304

DARK BROWN,BROWN,TRIM4#

main62510-12560-14iAE70,KE70,TE71..LB..(GL,GT,SX)197903-198304

BLUE,BLUE,TRIM8#

main62510-12580-01iTE70..HT..GL197908-198108

BLACK & GRAY,BLACK,TRIM2#

main62510-12580-04iTE70..HT..GL197908-198108

BLUE,BLUE,TRIM8#

main62510-12580-06iTE70..HT..GL197908-198108

DARK BROWN & BEIGE,BROWN,TRIM4#

main62510-12590-01iTE70..HT..SE197908-198108

BLACK & GRAY,BLACK,TRIM2#

main62510-12590-04iTE70..HT..SE197908-198108

BLUE,BLUE,TRIM8#

main62510-12590-06iTE70..HT..SE197908-198108

DARK BROWN & BEIGE,BROWN,TRIM4#

main62510-12620-01iTE70..SL197908-198108

BLACK & GRAY,BLACK,TRIM2#

main62510-12620-04iTE70..SL197908-198108

BLUE,BLUE,TRIM8#

main62510-12620-06iTE70..SL197908-198108

DARK BROWN & BEIGE,BROWN,TRIM4#

main62510-12630-01iTE70..LB..SE197908-198108

BLACK & GRAY,BLACK,TRIM2#

main62510-12630-04iTE70..LB..SE197908-198108

BLUE,BLUE,TRIM8#

main62510-12630-06iTE70..LB..SE197908-198108

DARK BROWN & BEIGE,BROWN,TRIM4#

main62510-12640-01iTE70..LB..GL197908-198108

BLACK & GRAY,BLACK,TRIM2#

main62510-12640-04iTE70..LB..GL197908-198108

BLUE,BLUE,TRIM8#

main62510-12640-06iTE70..LB..GL197908-198108

DARK BROWN & BEIGE,BROWN,TRIM4#

main62510-12650iAE70,KE70..HT..GL198108-198304

LIME,TERRA COTTA

main62510-13160-01iKE71,TE73..GL..2D197908-198108

W/*ELR BELT,FR,BLACK,BLACK,TRIM2#

main62510-13160-06iKE71,TE73..GL..2D197908-198008

W/*ELR BELT,FR,L-BROWN,BROWN,TRIM4#

main62510-13160-16iKE71,TE73..GL..2D198008-198108

W/*ELR BELT,FR,L-BROWN,BROWN,TRIM4#

main62510-13170-01iKE71..(DX,STD)..2D197908-198108

FR,BLACK,BLACK,TRIM2#

main62510-13170-06iKE71..DX..2D197908-198008

FR,L-BROWN,BROWN,TRIM4#

main62510-13170-16iKE71..DX..2D198008-198108

FR,L-BROWN,BROWN,TRIM4#

main62510-13180-01iKE71,TE73..(DX,STD)..2D197908-198108

W/*ELR BELT,FR,BLACK,BLACK,TRIM2#

main62510-13180-06iKE71,TE73..DX..2D197908-198008

W/*ELR BELT,FR,L-BROWN,BROWN,TRIM4#

main62510-13180-16iKE71,TE73..DX..2D198008-198108

W/*ELR BELT,FR,L-BROWN,BROWN,TRIM4#

main62510-13181-01iKE72,TE74..2D..05S198108-198308

FR,BLACK,BLACK,TRIM2#

main62510-13181-06iKE72,TE74..DX..2D..05S198108-198308

FR,L-BROWN,BROWN,TRIM4#

main62510-13190-03iCE71,KE72..2D..05S198308-198508

FR,GRAY,GRAY,TRIM1#

main62510-13190-05iCE71,KE72..DX..2D..05S198308-198508

FR,BEIGE,BEIGE,TRIM3#,4#

main62510-13190-13iCE71,KE72..2D..05S198508-198707

FR,GRAY,GRAY,TRIM1#

main62510-13190-16iCE71,KE72..DX..2D..05S198508-198707

FR,BROWN,BROWN,TRIM4#

main62511-13130-01iKE72..02S198108-198308

FR,BLACK,BLACK,TRIM2#

main62511-13130-03iKE72..02S198308-198508

FR,GRAY,GRAY,TRIM1#

main62511-13130-05iKE72..DX..02S198308-198508

FR,BEIGE,BEIGE,TRIM3#,4#

main62511-13130-13iCE71,KE72..02S198508-198707

FR,GRAY,GRAY,TRIM1#

main62511-13130-16iKE72..DX..02S198108-198308

FR,L-BROWN,BROWN,TRIM4#

main62511-13130-26iCE71,KE72..DX..02S198508-198707

FR,BROWN,LIGHT BROWN,TRIM4#

main62630-13040-01iKE73..GL198205-198308

BLACK,BLACK,TRIM2#

main62630-13040-03iCE72,KE73..GL198308-198508

GRAY,GRAY,TRIM1#

main62630-13040-05iCE72,KE73..GL198308-198508

BEIGE,BEIGE,TRIM3#,4#

main62630-13040-16iKE73..GL198205-198308

L-BROWN,BROWN,TRIM4#

main62630-13050-03iCE71,KE72,74..(DX,STD)..05S198308-198508

RR,GRAY,COLD SPEC,GRAY,TRIM1#

main62630-13050-05iCE71,KE72,74..(DX,GL)..05S198308-198508

RR,BEIGE,COLD SPEC,BEIGE,TRIM3#

main62630-13050-13iCE71,KE72,74..GL198308-198508

RR,GRAY,COLD SPEC,GRAY,TRIM1#

main62630-13050-16iCE71,KE72,74..(DX,GL)..05S198508-198707

RR,BROWN,COLD SPEC,BROWN,TRIM4#

main62630-13050-23iCE71,KE72,74..05S198508-198707

RR,GRAY,COLD SPEC,GRAY,TRIM1#

main62630-13060-03iCE72,KE73..DX198308-198508

GRAY,COLD SPEC,GRAY,TRIM1#

main62630-13060-05iCE72,KE73..DX198308-198508

BEIGE,COLD SPEC,BEIGE,TRIM3#

main62630-13060-13iCE72,KE73..DX198508-198707

GRAY,COLD SPEC,GRAY,TRIM1#

main62630-13060-16iCE72,KE73..DX198508-198707

BROWN,COLD SPEC,BROWN,TRIM4#

main62630-13070-03iCE72,KE73..GL198308-198508

GRAY,COLD SPEC,GRAY,TRIM1#

main62630-13070-05iCE72,KE73..GL198308-198508

BEIGE,COLD SPEC,BEIGE,TRIM3#

main62630-13080-03iCE72,KE73..GL198508-198707

GRAY,LIGHT GRAY,TRIM1#

main62630-13080-06iCE72,KE73..GL198508-198707

BROWN,LIGHT BROWN,TRIM4#

main62630-13090-03iCE72,KE73..GL198508-198707

GRAY,COLD SPEC,LIGHT GRAY,TRIM1#

main62630-13090-06iCE72,KE73..GL198508-198707

BROWN,COLD SPEC,LIGHT BROWN,TRIM4#

main62630-13100-03iCE71,KE72..4D..02S198608-198707

RR,GRAY,COLD SPEC,LIGHT GRAY,TRIM1#

main62630-13100-06iCE71,KE72..4D..02S198608-198707

RR,BROWN,COLD SPEC,LIGHT BROWN,TRIM4#

main62631-13070-01iKE72..02S198108-198308

RR,BLACK,BLACK,TRIM2#

main62631-13070-03iKE72..02S198308-198508

RR,GRAY,GRAY,TRIM1#

main62631-13070-05iKE72..DX..02S198308-198508

RR,BEIGE,BEIGE,TRIM3#,4#

main62631-13070-13iCE71,KE72..02S198508-198707

RR,GRAY,GRAY,TRIM1#

main62631-13070-16iKE72..DX..02S198108-198308

RR,L-BROWN,BROWN,TRIM4#

main62631-13070-36iCE71,KE72..DX..02S198508-198707

RR,BROWN,BROWN,TRIM4#

main62631-13080iKE71,TE73197908-198108

RR,BLACK

main62631-13090-01iKE73..DX198205-198308

BLACK,BLACK,TRIM2#

main62631-13120-03iCE71,KE72,74..(DX,STD)..05S198308-198508

RR,GRAY,GRAY,TRIM1#

main62631-13120-05iCE71,KE72,74..(DX,GL)..05S198308-198508

RR,BEIGE,BEIGE,TRIM3#,4#

main62631-13120-06iKE71,TE73..DX,GL197908-198008

RR,L-BROWN,BROWN,TRIM4#

main62631-13120-13iCE71,KE72,74..05S198508-198707

RR,GRAY,GRAY,TRIM1#

main62631-13120-16iCE71,KE72,TE74..(DX,GL)..05S198108-198308

RR,L-BROWN,BROWN,TRIM4#

main62631-13120-36iCE71,KE72,74..(DX,GL)..05S198508-198707

RR,BROWN,BROWN,TRIM4#

main62631-13130-03iCE72,KE73..DX198308-198508

GRAY,GRAY,TRIM1#

main62631-13130-05iCE72,KE73..DX198308-198508

BEIGE,BEIGE,TRIM3#,4#

main62631-13130-13iCE72,KE73..DX198508-198707

GRAY,GRAY,TRIM1#

main62631-13130-16iKE73..DX198205-198308

L-BROWN,BROWN,TRIM4#

main62631-13130-36iCE72,KE73..DX198508-198707

BROWN,BROWN,TRIM4#

62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-06017-01×13iCE71,KE71,72,73,TE73,74198104-198308

BLACK,BLACK,TRIM2#

main90467-06017-06×13iCE71,KE71,72,73,TE73,74..DX,GL198104-198308

L-BROWN,BROWN,TRIM4#

main90467-06017-13×13iCE7#,KE7#198308-198508

GRAY,GRAY,TRIM1#

main90467-06017-25×13iCE7#,KE7#..DX,GL198308-198508

BEIGE,BEIGE,TRIM3#,4#

main90467-06017-30×13iCE7#,KE7#..DX,GL198508-198707

BROWN,LIGHT BROWN,TRIM4#

main90467-06017-43×13iCE7#,KE7#198508-198707

GRAY,GRAY,TRIM1#

main90467-08014-01×4iAE70,KE70,TE71..CP,LB197903-198304

BLACK,BLACK,TRIM2#

main90467-08014-04×2iAE70,KE70,TE71..CP,LB197903-198304

BLUE,BLUE,TRIM8#

main90467-08014-06×2iKE70..SED..(DX,GL)..2D197903-198008

L-BROWN,BROWN,TRIM4#

main90467-08014-16×2iKE70..SED..DX..2D198108-198304

D-BROWN,BROWN,TRIM4#

main90467-08014-26×2iKE70..SED..(DX,GL)..2D198008-198108

L-BROWN,BROWN,TRIM4#

main90467-08015-01×13iKE71,TE73197908-198104

BLACK,BLACK,TRIM2#

main90467-08015-06×13iKE71,TE73..DX,GL197908-198008

L-BROWN,BROWN,TRIM4#

main90467-08015-16×13iKE71,TE73..DX,GL198008-198104

L-BROWN,BROWN,TRIM4#

62512BOARD, QUARTER INSIDE TRIM, LH

main62512-13130-01iKE72..02S198108-198308

FR,BLACK,BLACK,TRIM2#

main62512-13130-03iKE72..02S198308-198508

FR,GRAY,GRAY,TRIM1#

main62512-13130-05iKE72..DX..02S198308-198508

FR,BEIGE,BEIGE,TRIM3#,4#

main62512-13130-13iCE71,KE72..02S198508-198707

FR,GRAY,GRAY,TRIM1#

main62512-13130-16iKE72..DX..02S198108-198308

FR,L-BROWN,BROWN,TRIM4#

main62512-13130-26iCE71,KE72..DX..02S198508-198707

FR,BROWN,LIGHT BROWN,TRIM4#

main62520-12400-01iKE70..STD..2D197903-198108

W/*NLR,BLACK

main62520-12410-01iKE70..SED..DX..2D197903-198108

W/*ELR BELT,BLACK,BLACK,TRIM2#

main62520-12410-04iKE70..SED..DX..2D197903-198108

W/*ELR BELT,BLUE,BLUE,TRIM8#

main62520-12410-06iKE70..SED..DX..2D197903-198008

W/*ELR BELT,L-BROWN,BROWN,TRIM4#

main62520-12410-16iKE70..SED..DX..2D198008-198108

W/*ELR BELT,L-BROWN,BROWN,TRIM4#

main62520-12420-01iKE70..SED..GL..2D197903-198108

BLACK,BLACK,TRIM2#

main62520-12420-04iKE70..SED..GL..2D197903-198108

BLUE,BLUE,TRIM8#

main62520-12420-06iKE70..SED..GL..2D197903-198008

L-BROWN,BROWN,TRIM4#

main62520-12420-16iKE70..SED..GL..2D198008-198108

L-BROWN,BROWN,TRIM4#

main62520-12430-01iKE70..STD..2D197903-198108

W/*ELR,BLACK

main62520-12431-01iKE70..SED..2D198108-198304

BLACK,BLACK,TRIM2#

main62520-12431-04iKE70..SED..DX..2D198108-198304

BLUE,BLUE,TRIM8#

main62520-12431-06iKE70..SED..DX..2D198108-198304

L-BROWN,BROWN,TRIM4#

main62520-12440-01iKE70..SED..DX..2D197903-198108

W/*NLR BELT,BLACK,BLACK,TRIM2#

main62520-12440-04iKE70..SED..DX..2D197903-198108

W/*NLR BELT,BLUE,BLUE,TRIM8#

main62520-12440-06iKE70..SED..DX..2D197903-198008

W/*NLR BELT,L-BROWN,BROWN,TRIM4#

main62520-12440-16iKE70..SED..DX..2D198008-198108

W/*NLR BELT,L-BROWN,BROWN,TRIM4#

main62520-12450-01iKE70..HT..DX197903-198108

BLACK,BLACK,TRIM2#

main62520-12450-04iKE70..HT..DX197903-198108

BLUE,BLUE,TRIM8#

main62520-12450-06iKE70..HT..DX197903-198108

DARK BROWN,BROWN,TRIM4#

main62520-12460-01iAE70,KE70,TE71..HT198108-198304

BLACK & GRAY,BLACK,TRIM2#

main62520-12460-04iAE70,KE70,TE71..HT..(GL,GT,SX)198108-198304

BLUE & BLUE,BLUE,TRIM8#

main62520-12460-06iAE70,KE70..HT..GL197903-198108

DARK BROWN,BROWN,TRIM4#

main62520-12460-14iAE70,KE70..HT..SE198108-198304

BLUE & IVORY,BLUE,TRIM8#

main62520-12470-01iAE70,TE71..HT..(GT,SE)197903-198108

BLACK & GRAY,BLACK,TRIM2#

main62520-12470-04iTE71..HT197903-198108

BLUE,BLUE,TRIM8#

main62520-12470-06iAE70,TE71..HT..(GT,SE)197903-198108

DARK BROWN & BEIGE,BROWN,TRIM4#

main62520-12490-01iKE70..CP..DX197903-198108

BLACK,BLACK,TRIM2#

main62520-12490-04iKE70..CP..DX197903-198108

BLUE,BLUE,TRIM8#

main62520-12490-06iKE70..CP..DX197903-198108

DARK BROWN,BROWN,TRIM4#

main62520-12500-01iAE70,KE70,TE71..LVS,SL197903-198304

BLACK,BLACK,TRIM2#

main62520-12500-04iAE70,KE70,TE71..LVS,SL197903-198304

BLUE,BLUE,TRIM8#

main62520-12500-06iAE70,KE70,TE71..LVS,SL197903-198304

DARK BROWN,BROWN,TRIM4#

main62520-12520-01iAE70,KE70,TE70,71..LVN,SR197903-198304

BLACK,BLACK,TRIM2#

main62520-12520-04iAE70,KE70,TE70,71..LVN,SR197903-198304

BLUE,BLUE,TRIM8#

main62520-12520-06iAE70,KE70,TE70,71..LVN,SR197903-198304

DARK BROWN,BROWN,TRIM4#

main62520-12530-01iKE70..LB..DX197903-198304

BLACK,BLACK,TRIM2#

main62520-12530-04iKE70..LB..DX197903-198304

BLUE,BLUE,TRIM8#

main62520-12530-06iKE70..LB..DX197903-198304

DARK BROWN,BROWN,TRIM4#

main62520-12540-01iAE70,KE70,TE71..LB..(GL,GT,SE,SX)197903-198304

BLACK,BLACK,TRIM2#

main62520-12540-04iAE70,KE70..LB..SE197903-198304

BLUE,BLUE,TRIM8#

main62520-12540-06iAE70,KE70,TE71..LB..(GL,GT,SE,SX)197903-198304

DARK BROWN,BROWN,TRIM4#

main62520-12540-14iAE70,KE70,TE71..LB..(GL,GT,SX)197903-198304

BLUE,BLUE,TRIM8#

main62520-12560-01iTE70..HT..GL197908-198108

BLACK & GRAY,BLACK,TRIM2#

main62520-12560-04iTE70..HT..GL197908-198108

BLUE,BLUE,TRIM8#

main62520-12560-06iTE70..HT..GL197908-198108

DARK BROWN & BEIGE,BROWN,TRIM4#

main62520-12570-01iTE70..HT..SE197908-198108

BLACK & GRAY,BLACK,TRIM2#

main62520-12570-04iTE70..HT..SE197908-198108

BLUE,BLUE,TRIM8#

main62520-12570-06iTE70..HT..SE197908-198108

DARK BROWN & BEIGE,BROWN,TRIM4#

main62520-12600-01iTE70..SL197908-198108

BLACK & GRAY,BLACK,TRIM2#

main62520-12600-04iTE70..SL197908-198108

BLUE,BLUE,TRIM8#

main62520-12600-06iTE70..SL197908-198108

DARK BROWN & BEIGE,BROWN,TRIM4#

main62520-12610-01iTE70..LB..SE197908-198108

BLACK & GRAY,BLACK,TRIM2#

main62520-12610-04iTE70..LB..SE197908-198108

BLUE,BLUE,TRIM8#

main62520-12610-06iTE70..LB..SE197908-198108

DARK BROWN & BEIGE,BROWN,TRIM4#

main62520-12620-01iTE70..LB..GL197908-198108

BLACK & GRAY,BLACK,TRIM2#

main62520-12620-04iTE70..LB..GL197908-198108

BLUE,BLUE,TRIM8#

main62520-12620-06iTE70..LB..GL197908-198108

DARK BROWN & BEIGE,BROWN,TRIM4#

main62520-12630iAE70,KE70..HT..GL198108-198304

LIME,TERRA COTTA

main62520-13160-01iKE71,TE73..GL..2D197908-198108

W/*ELR,FR,BLACK,BLACK,TRIM2#

main62520-13160-06iKE71,TE73..GL..2D197908-198008

W/*ELR,FR,L-BROWN,BROWN,TRIM4#

main62520-13160-16iKE71,TE73..GL..2D198008-198108

W/*ELR,FR,L-BROWN,BROWN,TRIM4#

main62520-13170-01iKE71..(DX,STD)..2D197908-198108

FR,BLACK,BLACK,TRIM2#

main62520-13170-06iKE71..DX..2D197908-198008

FR,L-BROWN,BROWN,TRIM4#

main62520-13170-16iKE71..DX..2D198008-198108

FR,L-BROWN,BROWN,TRIM4#

main62520-13180-01iKE71,TE73..(DX,STD)..2D197908-198108

W/*ELR,FR,BLACK,BLACK,TRIM2#

main62520-13180-06iKE71,TE73..DX..2D197908-198008

W/*ELR,FR,L-BROWN,BROWN,TRIM4#

main62520-13180-16iKE71,TE73..DX..2D198008-198108

W/*ELR,FR,L-BROWN,BROWN,TRIM4#

main62520-13181-01iKE72,TE74..2D..05S198108-198308

FR,BLACK,BLACK,TRIM2#

main62520-13181-06iKE72,TE74..DX..2D..05S198108-198308

FR,L-BROWN,BROWN,TRIM4#

main62520-13190-03iCE71,KE72..2D..05S198308-198508

FR,GRAY,GRAY,TRIM1#

main62520-13190-05iCE71,KE72..DX..2D..05S198308-198508

FR,BEIGE,BEIGE,TRIM3#,4#

main62520-13190-13iCE71,KE72..2D..05S198508-198707

FR,GRAY,GRAY,TRIM1#

main62520-13190-16iCE71,KE72..DX..2D..05S198508-198707

FR,BROWN,BROWN,TRIM4#

main62632-13120-01iKE72..02S198108-198308

RR,BLACK,BLACK,TRIM2#

main62632-13120-03iKE72..02S198308-198508

RR,GRAY,GRAY,TRIM1#

main62632-13120-05iKE72..DX..02S198308-198508

RR,BEIGE,BEIGE,TRIM3#,4#

main62632-13120-13iCE71,KE72..02S198508-198707

RR,GRAY,GRAY,TRIM1#

main62632-13120-16iKE72..DX..02S198108-198308

RR,L-BROWN,BROWN,TRIM4#

main62632-13120-36iCE71,KE72..DX..02S198508-198707

RR,BROWN,BROWN,TRIM4#

main62632-13130iKE71,TE73197908-198108

RR,BLACK

main62632-13140-01iKE73..DX198205-198308

BLACK,BLACK,TRIM2#

main62632-13170-03iCE71,KE72,74..(DX,STD)..05S198308-198508

RR,GRAY,GRAY,TRIM1#

main62632-13170-05iCE71,KE72,74..(DX,GL)..05S198308-198508

RR,BEIGE,BEIGE,TRIM3#,4#

main62632-13170-06iKE71,TE73..DX,GL197908-198008

RR,L-BROWN,BROWN,TRIM4#

main62632-13170-13iCE71,KE72,74..GL198308-198508

RR,GRAY,GRAY,TRIM1#

main62632-13170-16iCE71,KE72,TE74..(DX,GL)..05S198108-198308

RR,L-BROWN,BROWN,TRIM4#

main62632-13170-36iCE71,KE72,74..(DX,GL)..05S198508-198707

RR,BROWN,BROWN,TRIM4#

main62632-13180-03iCE72,KE73..DX198308-198508

GRAY,GRAY,TRIM1#

main62632-13180-05iCE72,KE73..DX198308-198508

BEIGE,BEIGE,TRIM3#,4#

main62632-13180-13iCE72,KE73..DX198508-198707

GRAY,GRAY,TRIM1#

main62632-13180-16iKE73..DX198205-198308

L-BROWN,BROWN,TRIM4#

main62632-13180-36iCE72,KE73..DX198508-198707

BROWN,BROWN,TRIM4#

main62640-13070-01iKE73..GL198205-198308

BLACK,BLACK,TRIM2#

main62640-13070-03iCE72,KE73..GL198308-198508

GRAY,GRAY,TRIM1#

main62640-13070-05iCE72,KE73..GL198308-198508

BEIGE,BEIGE,TRIM3#,4#

main62640-13070-16iKE73..GL198205-198308

L-BROWN,BROWN,TRIM4#

main62640-13080-03iCE71,KE72,74..(DX,STD)..05S198308-198508

RR,GRAY,COLD SPEC,GRAY,TRIM1#

main62640-13080-05iCE71,KE72,74..(DX,GL)..05S198308-198508

RR,BEIGE,COLD SPEC,BEIGE,TRIM3#,4#

main62640-13080-13iCE71,KE72,74..GL198308-198508

RR,GRAY,COLD SPEC,GRAY,TRIM1#

main62640-13080-16iCE71,KE72,74..(DX,GL)..05S198508-198707

RR,BROWN,COLD SPEC,BROWN,TRIM4#

main62640-13080-23iCE71,KE72,74..05S198508-198707

RR,GRAY,COLD SPEC,GRAY,TRIM1#

main62640-13090-03iCE72,KE73..DX198308-198508

GRAY,COLD SPEC,GRAY,TRIM1#

main62640-13090-05iCE72,KE73..DX198308-198508

BEIGE,COLD SPEC,BEIGE,TRIM3#,4#

main62640-13090-13iCE72,KE73..DX198508-198707

GRAY,COLD SPEC,GRAY,TRIM1#

main62640-13090-16iCE72,KE73..DX198508-198707

BROWN,COLD SPEC,BROWN,TRIM4#

main62640-13100-03iCE72,KE73..GL198308-198508

GRAY,COLD SPEC,GRAY,TRIM1#

main62640-13100-05iCE72,KE73..GL198308-198508

BEIGE,COLD SPEC,BEIGE,TRIM3#,4#

main62640-13110-03iCE72,KE73..GL198508-198707

GRAY,LIGHT GRAY,TRIM1#

main62640-13110-06iCE72,KE73..GL198508-198707

BROWN,LIGHT BROWN,TRIM4#

main62640-13120-03iCE72,KE73..GL198508-198707

GRAY,COLD SPEC,LIGHT GRAY,TRIM1#

main62640-13120-06iCE72,KE73..GL198508-198707

BROWN,COLD SPEC,LIGHT BROWN,TRIM4#

main62640-13130-03iCE71,KE72..4D..02S198608-198707

RR,GRAY,COLD SPEC,LIGHT GRAY,TRIM1#

main62640-13130-06iCE71,KE72..4D..02S198608-198707

RR,BROWN,COLD SPEC,LIGHT BROWN,TRIM4#

62535PAD, QUARTER WHEEL HOUSE TRIM

main62610-12050iAE70,KE70,TE70,71..(HT,SED)..(GL,GT,SE)197903-198108

RH

main62610-12060-01iAE70,KE70,TE70,71..(CP,LB)..(DX,GL,GT,LVS,SE,SL,SX)197903-198304

RH,BLACK,BLACK,TRIM2#

main62610-12060-04iAE70,KE70,TE70,71..(CP,LB)..(DX,GL,GT,LVS,SE,SL,SX)197903-198304

RH,BLUE,BLUE,TRIM8#

main62610-12060-06iAE70,KE70,TE70,71..(CP,LB)..(DX,GL,GT,LVS,SE,SL,SX)197903-198304

RH,DARK BROWN,BROWN,TRIM4#

main62613-12080-01iAE70,KE70..(HT,SED)..(CTD,DX,STD)197903-198108

RH,BLACK,BLACK,TRIM2#

main62613-12080-04iAE70,CE70,KE70..SED..(CTD,DX)198108-198304

RH,BLUE,BLUE,TRIM8#

main62613-12080-06iAE70,KE70..SED..(CTD,DX)197903-198008

RH,L-BROWN,BROWN,TRIM4#

main62613-12080-16iAE70,CE70,KE70..SED..(CTD,DX)198108-198304

RH,DARK BROWN,BROWN,TRIM4#

main62613-12080-26iAE70,KE70..SED..(CTD,DX)198008-198108

RH,L-BROWN,BROWN,TRIM4#

main62614-12050-01iAE70,KE70..(HT,SED)..(CTD,DX,STD)197903-198108

LH,BLACK,BLACK,TRIM2#

main62614-12050-04iAE70,CE70,KE70..SED..(CTD,DX)198108-198304

LH,BLUE,BLUE,TRIM8#

main62614-12050-06iAE70,KE70..SED..(CTD,DX)197903-198008

LH,L-BROWN,BROWN,TRIM4#

main62614-12050-16iAE70,CE70,KE70..SED..(CTD,DX)198108-198304

LH,DARK BROWN,BROWN,TRIM4#

main62614-12050-26iAE70,KE70..SED..(CTD,DX)198008-198108

LH,L-BROWN,BROWN,TRIM4#

main62620-12040iAE70,CE70,KE70,TE71..(GL,GT,SE,SX)..4D198108-198304

LH

main62620-12050-01iAE70,KE70,TE70,71..(CP,LB)..(DX,GL,GT,LVS,SE,SL,SX)197903-198304

LH,BLACK,BLACK,TRIM2#

main62620-12050-04iAE70,KE70,TE70,71..(CP,LB)..(DX,GL,GT,LVS,SE,SL,SX)197903-198304

LH,BLUE,BLUE,TRIM8#

main62620-12050-06iAE70,KE70,TE70,71..(CP,LB)..(DX,GL,GT,LVS,SE,SL,SX)197903-198304

LH,DARK BROWN,BROWN,TRIM4#

62561PROTECTOR, ROCKER PANEL, INNER FRONT

main62561-12020×2iAE70,CE7#,KE7#,TE7#197903-198707

62562PROTECTOR, ROCKER PANEL, INNER REAR

main62561-12020iKE72..02S198108-198707

main62563-12010iAE70,CE7#,KE70,73,TE71198108-198308

RH

main62564-12010iAE70,CE7#,KE70,73,TE71198108-198308

LH

8401

6777112010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12010

6777216010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-16010

9011906106

main90119-06106

9046304014

main90463-04014

9046304026

main90463-04026

9046805011

main90468-05011

9354054510

main93540-54510

9356055016

main93560-55016

30 parts on this diagram · 8 diagrams in section
