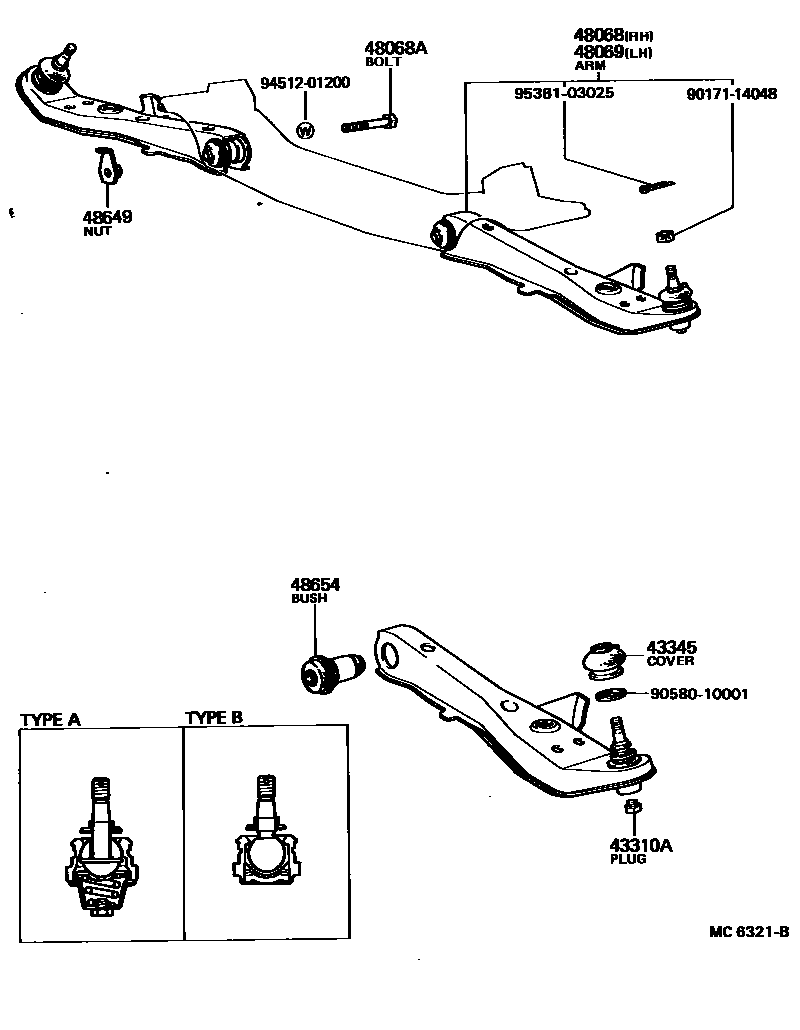

FRONT AXLE ARM & STEERING KNUCKLE

43310APLUG (FOR BALL JOINT)

main90345-06014iAE70,KE71,TE7#197903-198707

TYPE A

43345COVER, LOWER BALL JOINT DUST

main43345-12060iAE70,CE7#,KE7#,TE7#197903-198308

TYPE B

main43345-14020iAE70,KE71,TE7#197903-198707

TYPE A

sub43345-14010

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-19065iKE70197903-198308

TYPE B

sub48068-19125

main48068-19075iCE7#,KE72,74,TE7#197903-198707

TYPE A

main48068-19085iAE70,KE71,TE7#197908-198308

TYPE B

sub48068-19075

main48068-19125iAE70,KE70,73198108-198707

TYPE A

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90101-12291iAE70,CE7#,KE7#,TE7#197903-198611

main90119-12083iCE7#,KE7#198611-198707

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-19055iAE70,KE70,73197903-198308

TYPE B

sub48069-19105

main48069-19065iCE7#,KE72,74,TE7#197903-198707

TYPE A

main48069-19075iCE7#,KE72,TE7#197908-198308

TYPE B

sub48069-19065

main48069-19105iAE70,KE70,73198108-198707

TYPE A

48649NUT, LOWER ARM SHAFT

main48649-12040iAE70,CE7#,KE7#,TE7#197903-198707

48654BUSH, LOWER ARM

main48654-12010iAE70,CE7#,KE7#,TE7#197903-198707

9017114048

main90171-14048

9058010001

main90580-10001

9451201200

main94512-01200

9538103025

main95381-03025

11 parts on this diagram · 1 diagram in section
