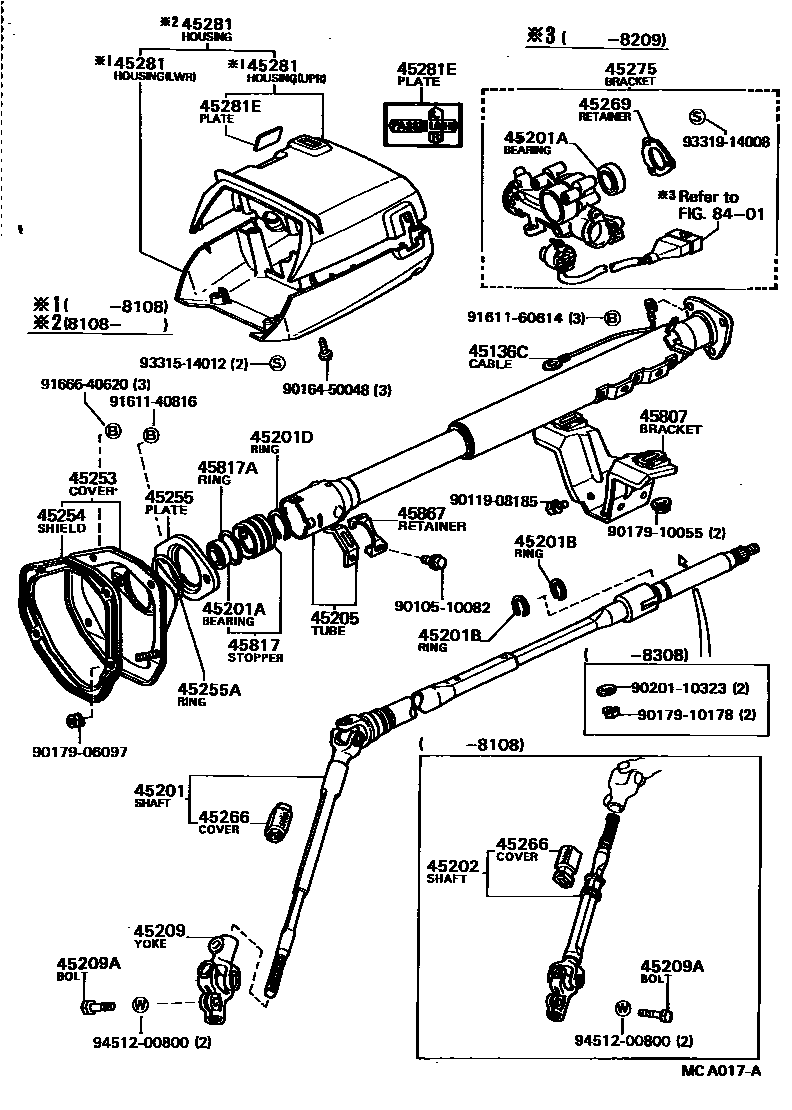

STEERING COLUMN & SHAFT

0001 1 0003 1 0004 1 0006 1 0009 1 0010 1 0011 1

45136CCABLE, BOND(FOR HORN EARTH)

main90980-07129iKE70;AE70,KE73..DX,GL,SX198108-198707

main90980-07195iAE70;KE70..CP,HT,LB;KE70..(DX,GL,SE)..4D198108-198304

W/TILT STRG

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-12120iKE71,72,74,TE73,74..DX,STD197908-198707

W/RIGID STRG

main45201-12190iCE71..DX198202-198707

W/RIGID STRG

main45210-12060iKE70197903-198108

main45210-12070iAE70,KE71,TE7#197903-198108

W/COLLAPSIBLE STRG

main45210-12090iTE70..GL,SE,SL197908-198108

W/PS

main45210-12100iKE70;AE70,KE73..DX,GL,SX198108-198308

main45210-12101iKE73198308-198707

main45210-12170iAE70..DX,GL,SX198108-198304

W/PS

main45210-12180iCE7#..CTD,DX,GL198202-198707

W/COLLAPSIBLE STRG

main45210-22050iKE70..CP,HT,LB;KE70..(DX,GL,SE)..4D;AE70,CE70,TE71..DX,GL,GT,LVN,LVS,SE,SR,SX198108-198304

W/TILT STRG,W/TILT STRG & PS

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iKE70..CP,HT,LB;KE70..(DX,GL,SE)..4D;AE70,CE70,TE71..DX,GL,GT,LVN,LVS,SE,SR,SX198108-198304

UPR,W/TILT STRG

main90363-18038iAE70,KE7#,TE7#197903-198108

UPR

main90363-28001iKE70..CP,HT,LB;KE70..(DX,GL,SE)..4D;AE70,CE70,TE71..DX,GL,GT,LVN,LVS,SE,SR,SX198108-198304

CTR,W/TILT STRG

main90363-30007iAE70,KE70,73198108-198412

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042×2iAE70,CE7#,KE7#,TE7#197903-198707

main90520-17196×2iAE70,KE7#,TE7#197903-198108

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iKE70197903-198108

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45260-12010iKE70197903-198108

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-12090iKE71,72,TE73,74..DX,STD197908-198202

W/RIGID STRG,L=555.6

main45205-12091iCE71,KE72,74,TE74..DX,STD198202-198707

W/RIGID STRG,L=529.7

main45870-12070iKE70197903-198108

main45870-12090iCE7#..CTD,DX,GL198202-198707

W/COLLAPSIBLE STRG

main45870-12100iAE70,KE71,TE7#197903-198108

W/COLLAPSIBLE STRG

main45870-12110iCE70,TE71..GL,GT,LVN,LVS,SE198108-198304

W/TILT STRG

main45870-12120iAE70;KE70..CP,HT,LB;KE70..(DX,GL,SE)..4D198108-198304

W/TILT STRG

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-12030iAE70198108-198304

W/PS

main45209-14030iAE70,KE70,73198108-198308

main45209-32010iKE73198308-198707

sub45209-10020

45209ABOLT, HEXAGON(FOR STEERING SLIDING YOKE SET)

main90101-08047×2iAE70,KE70,73198108-198308

sub90119-08560

main90101-08070×2iKE73198308-198707

sub90119-08560

45253COVER, STEERING COLUMN HOLE

main45025-12030iAE70,KE71,TE7#197903-198108

main45025-12040iTE71198108-198304

W/TILT STRG

main45025-12050iKE70;AE70,KE73..DX,GL,SX198108-198707

main45025-12090iAE70;KE70..CP,HT,LB;KE70..(DX,GL,SE)..4D198108-198304

W/TILT STRG

45254SHIELD, STEERING COLUMN HOLE

main45254-12020iCE7#,KE72,74,TE7#198108-198707

main45254-12030iKE70197903-198108

45255PLATE, STEERING COLUMN HOLE COVER

main45255-12020iCE7#,KE72,74,TE7#198108-198707

main45255-12030iAE70,KE70,73198108-198707

45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)

main90301-45202iCE7#,KE72,74,TE7#198108-198707

main90301-60122iAE70,KE70,73198108-198707

45266COVER, STEERING INTERMEDIATE SHAFT DUST

main45266-12010iKE70197903-198108

main45266-12020iAE70,KE70,73198108-198707

45269RETAINER, MAIN SHAFT BEARING

main45269-10010iKE70;AE70,CE7#,KE72,73,74,TE7#..CTD,DX,GL,LVS,STD,SX198209-198707

main45269-35010iAE70,KE7#,TE7#197903-198108

45275BRACKET, STEERING COLUMN, UPPER

main45020-12130iKE70;AE70,CE7#,KE72,73,TE7#..CTD,DX,GL,LVS,STD,SX198108-198209

sub84450-12060

sub93319-14012

main45280-12020iKE70..CP,HT,LB;KE70..(DX,GL,SE)..4D;AE70,CE70,TE71..DX,GL,GT,LVN,LVS,SE,SR,SX198108-198209

W/TILT STRG

main45280-12021iKE70..CP,HT,LB;KE70..(DX,GL,SE)..4D;AE70,CE70,TE71..DX,GL,GT,LVN,LVS,SE,SR,SX198209-198304

W/TILT STRG

main45280-12060iKE70;AE70,CE7#,KE72,73,74,TE7#..CTD,DX,GL,LVS,STD,SX198209-198707

45281HOUSING, STEERING COLUMN

main45286-12100-01iAE70,KE7#,TE7#197903-198108

UPR,BLACK,BLACK,TRIM2#

main45286-12100-04iTE71..2D197903-198108

UPR,BLUE,BLUE,TRIM8#

main45286-12100-05iAE70,KE70..SED..(GL,SE)197903-197908

UPR,BEIGE,BEIGE,TRIM4#

main45286-12100-06iAE70,KE70,TE70,71..(HT,LB)..(GL,GT,SE)197903-198108

UPR,DARK BROWN,BROWN,TRIM4#

main45286-12100-15iAE70,KE7#,TE70,73..(SED,V)..(GL,SE)197908-198108

UPR,BEIGE,BEIGE,TRIM4#

main45286-12923-01iKE70;AE70,CE7#,KE72,73,TE74..CTD,DX,GL,STD,SX198108-198308

BLACK,BLACK,TRIM2#

sub45286-27900

main45286-12923-02iCE7#,KE7#..DX,GL198308-198408

MAROON,RED/MAROON,TRIM3#

sub45286-27900

main45286-12923-03iCE7#,KE7#198308-198707

GRAY,GRAY,TRIM1#

sub45286-27900

main45286-12923-04iAE70,CE7#,KE7#,TE7#..GL,LVS,SX198108-198308

BLUE,BLUE,TRIM8#

sub45286-27900

main45286-12923-06iAE70,CE7#,KE7#,TE7#..GL,LVS,SX198108-198308

DARK BROWN,BROWN,TRIM4#

sub45286-27900

main45286-12923-16iCE7#,KE7#..DX,GL198408-198707

BROWN,BROWN,TRIM4#

sub45286-27900

main45286-12926-01iKE70..CP,HT,LB;KE70..(DX,GL,SE)..4D;AE70,CE70,TE71..DX,GL,GT,LVN,LVS,SE,SR,SX198108-198304

BLACK,W/TILT STRG,BLACK,TRIM2#

main45286-12926-04iAE70,CE70,KE70,TE71..GL,GT,LVN,LVS,SE,SR,SX198108-198304

BLUE,W/TILT STRG,BLUE,TRIM8#

main45286-12926-06iAE70,CE70,KE70,TE71..GL,GT,LVN,LVS,SE,SR,SX198108-198304

DARK BROWN,W/TILT STRG,BROWN,TRIM4#

main45287-12080-01iAE70,KE7#,TE7#197903-198108

LWR,BLACK,BLACK,TRIM2#

main45287-12080-04iTE71..2D197903-198108

LWR,BLUE,BLUE,TRIM8#

main45287-12080-05iAE70,KE70..SED..(GL,SE)197903-197908

LWR,BEIGE,BEIGE,TRIM4#

main45287-12080-06iAE70,KE70,TE70,71..(HT,LB)..(GL,GT,SE)197903-198108

LWR,DARK BROWN,BROWN,TRIM4#

main45287-12080-15iAE70,KE7#,TE70,73..(SED,V)..(GL,SE)197908-198108

LWR,BEIGE,BEIGE,TRIM4#

45281EPLATE, SAFETY CAUTION

main45283-12010iAE70,CE7#,KE7#,TE7#197903-198707

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main45082-12010iKE70..CP,HT,LB;KE70..(DX,GL,SE)..4D;AE70,CE70,TE71..DX,GL,GT,LVN,LVS,SE,SR,SX198108-198304

W/TILT STRG

main45807-12080iKE70197903-198108

main45807-12090iKE72,74,TE7#..DX,GL,LVS,STD198108-198707

W/COLLAPSIBLE STRG

main45807-12110iKE70;AE70,KE73..DX,GL,SX198108-198707

45817STOPPER, STEERING SHAFT THRUST

main45808-12020iKE70197903-198108

main45808-12030iKE73198501-198707

45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)

main96710-02053iKE70197903-198007

main96711-24053iKE70198007-198108

45867RETAINER, STEERING MAIN SHAFT STOPPER

main45867-12010iKE70197903-198108

8401

9010510082

main90105-10082

9011908185

main90119-08185

9016450048

main90164-50048

9017906097

main90179-06097

9017910055

main90179-10055

9017910178

main90179-10178

9020110323

main90201-10323

9161140816

main91611-40816

9161160614

main91611-60614

9166640620

main91666-40620

9331514012

main93315-14012

9331914008

main93319-14008

9451200800

main94512-00800

36 parts on this diagram · 7 diagrams in section
