WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52471iNCP16#,NHP160,NSP160201409

85160LINK ASSY, WINDSHIELD WIPER

main85150-52410iNCP16#,NHP160,NSP160201409

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113iNCP16#,NHP160,NSP160201409

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iNCP16#,NHP160,NSP160201409

85211BARM, FRONT WIPER, RH

main85211-52130iNCP16#,NSP160201409-201802

main85211-52131iNCP16#,NHP160,NSP160201802

85212ABLADE, FR WIPER, RH

main85212-26051iNCP16#,NHP160,NSP160201802

main85212-52151iNCP16#,NSP160201409-201802

sub85212-26051

85214ARUBBER, WIPER, RH

main85214-24051iNCP16#,NHP160,NSP160201409

85214BRUBBER, WIPER, LH

main85214-46011iNCP16#,NHP160,NSP160201409

85221BARM, FRONT WIPER, LH

main85221-52130iNCP16#,NSP160201409-201802

main85221-52131iNCP16#,NHP160,NSP160201802

85222ABLADE, FR WIPER, LH

main85222-28151iNCP16#,NHP160,NSP160201802

main85222-52071iNCP16#,NSP160201409-201802

sub85222-28151

85291ABLADE, FRONT WIPER, WINTER, RH

85291BBLADE, FRONT WIPER, WINTER, LH

9011906864

main90119-06864

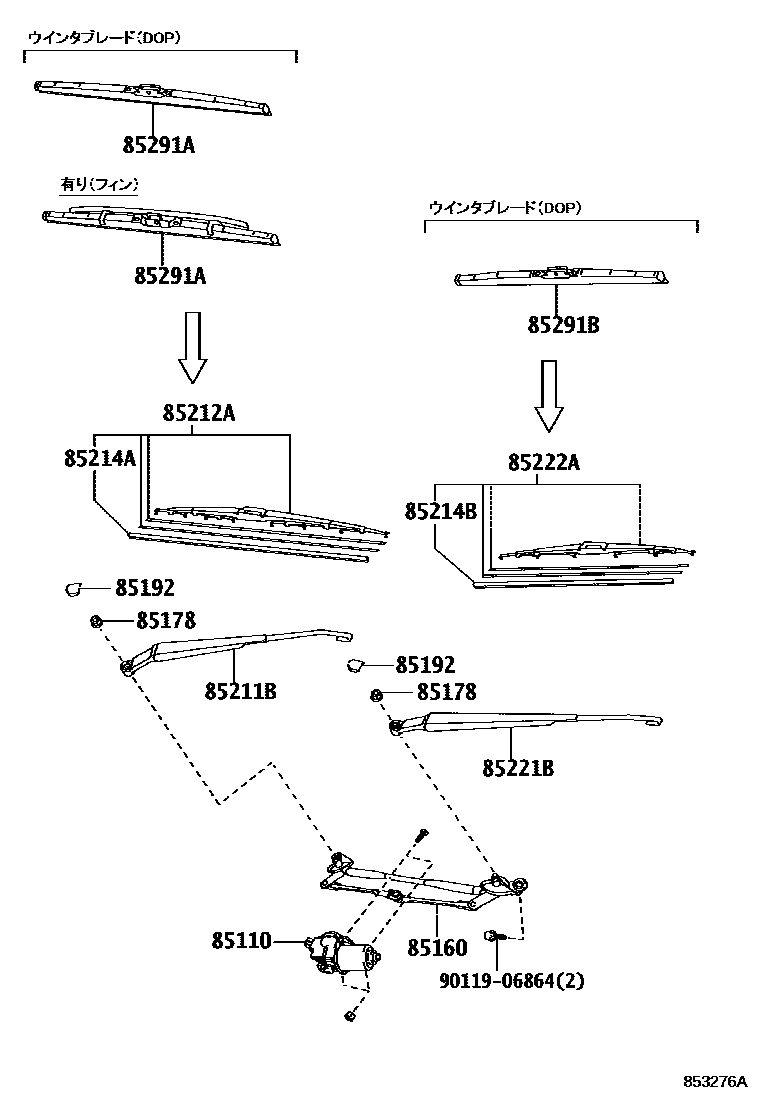

13 parts on this diagram · 1 diagram in section
