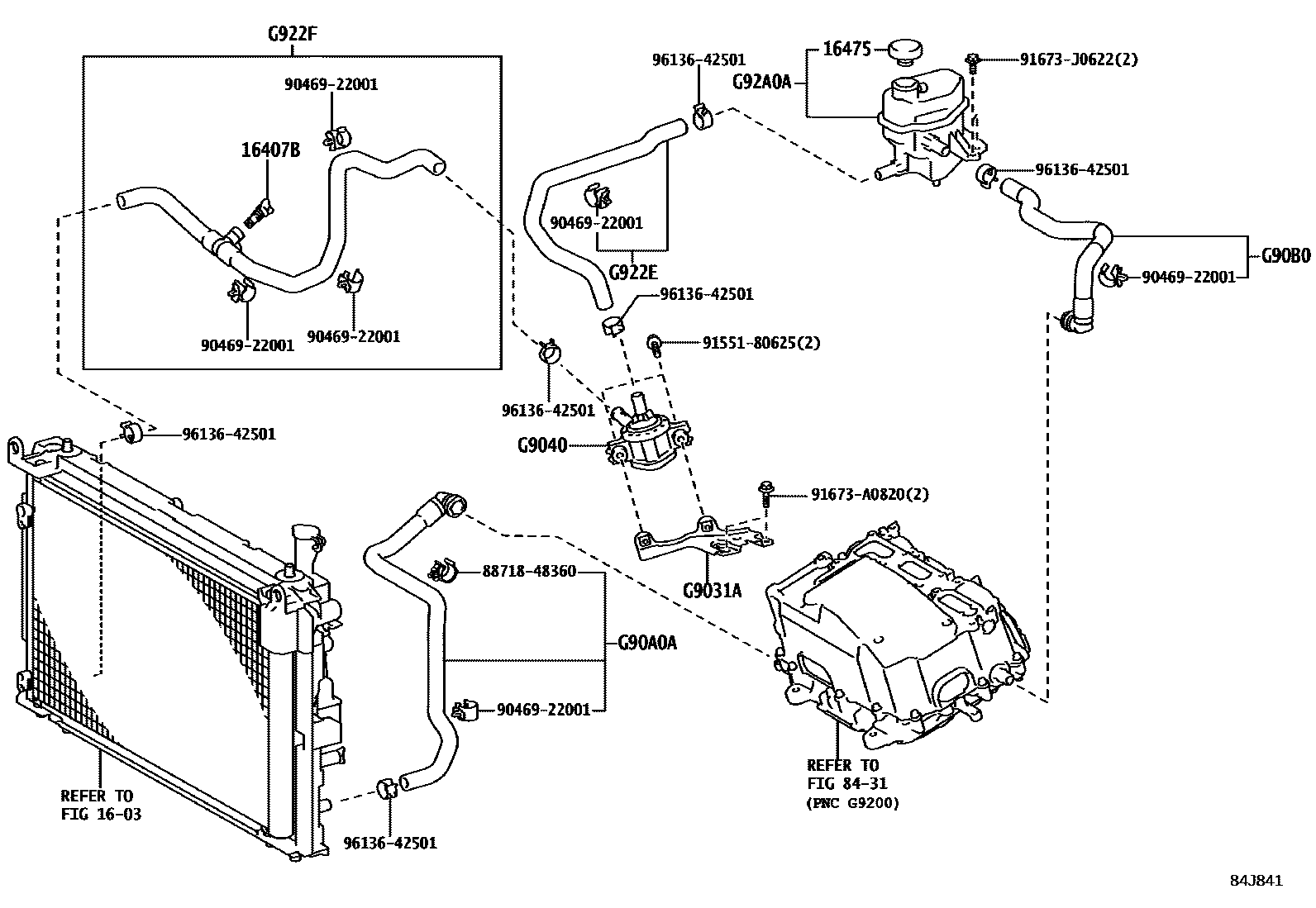

INVERTER COOLING

1603

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010i1NZFXE..NHP160201812

16475CAP, RESERVE TANK

main16475-28140i1NZFXE..NHP160201812

8431

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG914152020iNHP160201812

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904052020iNHP160201812

G90A0AHOSE ASSY, INVERTER COOLING, NO.1

mainG90A052040iNHP160201812

G90B0HOSE ASSY, INVERTER COOLING, NO.2

mainG90B052010iNHP160201812

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E52010iNHP160201812

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F52010iNHP160201812

G92A0ATANK ASSY, INVERTER RESERVE

mainG92A052011iNHP160201812

8871848360PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48360

9046922001

main90469-22001

9155180625

main91551-80625

91673A0820

main91673-A0820

91673J0622

main91673-J0622

9613642501

main96136-42501

17 parts on this diagram · 1 diagram in section
