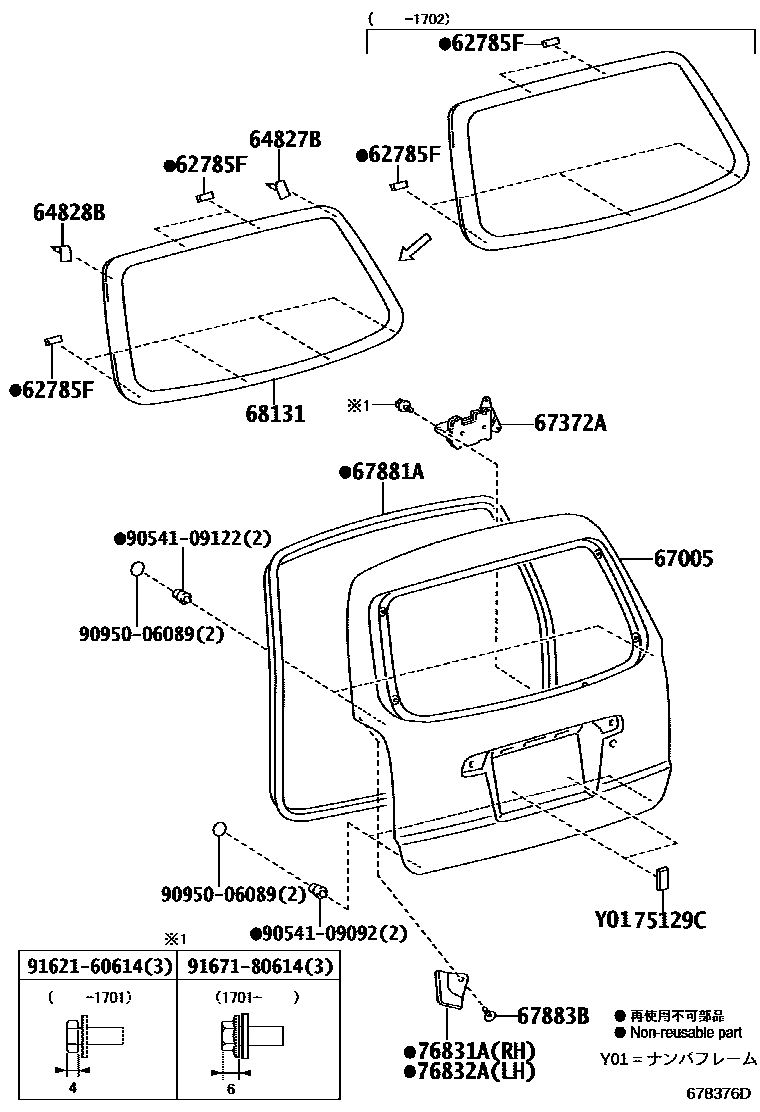

BACK DOOR PANEL & GLASS

0001 1������� 0002 1������

62785FSPACER, BACK DOOR GLASS

main62785-16030iNCP16#,NSP160201409-201702

64827BCLIP, BACK WINDOW GLASS, RH

main64827-52030iNCP16#,NHP160,NSP160201409

64828BCLIP, BACK WINDOW GLASS, LH

main64828-52030iNCP16#,NHP160,NSP160201409

67005PANEL SUB-ASSY, BACK DOOR

main67005-52472iNCP16#,NHP160,NSP160..DX,DXCOM,U,UL201409-202201

main67005-52472iNCP16#,NHP160,NSP160..DX,DXCOM202201-202404

main67005-52472iNCP16#,NHP160,NSP160..F,GL,TX,ULX201409-202404

main67005-52E40iNCP16#,NHP160,NSP160..DX,DXCOM,U,UL201409-202404

main67005-52F00iNCP16#,NHP160,NSP160..F,GL202404

main67005-52F00iNCP16#,NHP160,NSP160..DX,DXCOM,U,UL201409-202201

main67005-52F00iNCP16#,NHP160,NSP160..F,GL,TX,ULX201409-202404

main67005-52F00iNCP16#,NHP160,NSP160..DX,DXCOM202201-202404

main67005-52F30iNCP16#,NHP160,NSP160..DX,DXCOM,U,UL201409-202404

main67005-52F30iNCP16#,NHP160,NSP160..DX,DXCOM202404

67372AWEIGHT, BACK DOOR

main67049-52010iNCP16#,NHP160,NSP160..DX,DXCOM,U,UL201409

main67049-52010iNCP16#,NHP160..U,UL201409-202103

67881AWEATHERSTRIP, BACK DOOR

main67881-52051iNCP16#,NHP160,NSP160201409

67883BCLIP, BACK DOOR WEATHERSTRIP

main90467-05005iNCP16#,NHP160,NSP160201409

68131GLASS, BACK DOOR

main68105-52190iNCP16#,NSP160..DX,DXCOM,U,UL201409-201711

main68105-52191iNCP16#,NHP160,NSP160..F,GL,TX,ULX201712

main68105-52490iNCP16#,NSP160..DX,DXCOM,U,UL201409-201711

main68105-52491iNCP16#,NHP160,NSP160..DX,DXCOM,U,UL201712

75129CCUSHION, REAR LICENCE PLATE

main75129-13020iNCP16#,NSP160201409-201701

main75129-87502iNCP16#,NHP160,NSP160201702

76831ACOVER, BACK DOOR FINISH PANEL, RH

main76831-52030iNCP16#,NHP160,NSP160201409

76832ACOVER, BACK DOOR FINISH PANEL, LH

main76832-52030iNCP16#,NHP160,NSP160201409

9054109092

main90541-09092

9054109122

main90541-09122

9095006089

main90950-06089

9162160614

main91621-60614

9167180614

main91671-80614

16 parts on this diagram · 2 diagrams in section
