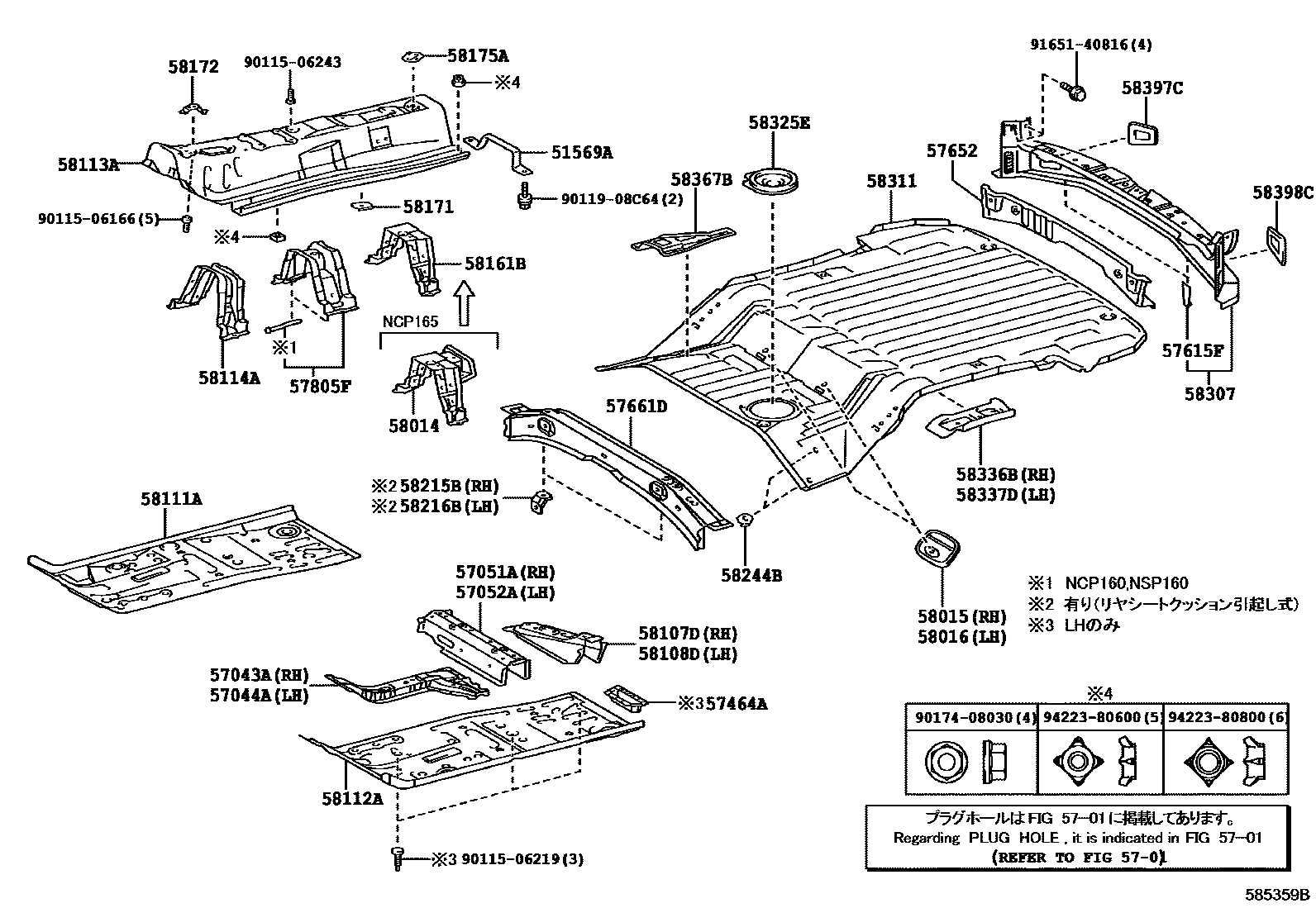

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

51569AGUARD, PROPELLER SHAFT

main51569-52010iNCP165..SUCD201409-202007

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-52030iNCP16#,NSP160201409-201411

sub57043-52031

main57043-52031iNCP16#,NHP160,NSP160201412

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-52030iNCP16#,NSP160201409-201411

sub57044-52031

main57044-52031iNCP16#,NHP160,NSP160201412

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-52050iNCP16#,NSP160201409

main57051-52070iNHP160201812

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-52040iNCP16#,NSP160201409

main57052-52060iNHP160201812

57464AREINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH

main57464-52050iNCP16#,NSP160201409

main57464-52070iNHP160201812

57615FBRACKET, REAR BUMPER MOUNTING

main52185-52050iNCP16#,NHP160,NSP160201409

57652CROSSMEMBER, REAR FLOOR, NO.2

main57659-52050iNCP16#,NHP160,NSP160201409

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57661-52040iNCP16#,NSP160201409

main57661-52170iNHP160201812

57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

main57656-52070iNCP165201409

main57805-52131iNHP160201812

main57805-52160iNCP160,NSP160201409

58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER

main58014-52020iNCP165..PROB201409-202007

58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH

main58015-52030iNCP16#,NSP160201409

main58015-52060iNHP160201812

58016REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH

main58015-52030iNCP16#,NSP160201409

main58015-52060iNHP160201812

58107DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH

main58107-52020iNCP16#,NHP160,NSP160201409

58108DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH

main58108-52020iNCP16#,NHP160,NSP160201409

58111APAN, FRONT FLOOR, RH

main58111-52260iNCP16#,NHP160,NSP160201409

58112APANEL, FRONT FLOOR, LH

main58112-52920iNCP16#,NSP160201409

main58112-52927iNHP160201812

58113APANEL, FRONT FLOOR, CENTER

main58113-52927iNHP160201812

main58113-52930iNCP16#,NSP160201409

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-52071iNHP160201812

main58114-52130iNCP16#,NSP160201409

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-52070iNHP160201812

main58161-52120iNCP160,NSP160201409

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-52090iNHP160201812

main58171-52110iNCP16#,NSP160201409

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-52020iNHP160201812

main58172-52030iNCP16#,NSP160201409

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-52020iNCP16#,NHP160,NSP160201409

58215BBRACKET, REAR SEAT MOUNTING, RH

main58215-52050iNCP16#..TX201409-202007

main58215-52050iNCP16#..UL,ULX201609-202007

58216BBRACKET, REAR SEAT MOUNTING, LH

main58215-52050iNCP16#..TX201409-202007

main58215-52050iNCP16#..UL,ULX201609-202007

58244BBRACKET, REAR SEAT CUSHION MOUNTING

main58244-52060iNCP16#..SUCD201409-202007

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-52162iNCP16#,NSP160201409-201801

sub58307-52163

main58307-52163iNCP16#,NHP160,NSP160201802

58311PAN, REAR FLOOR

main58311-52240iNCP16#,NSP160201409

main58311-52280iNHP160201812

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-52020iNCP16#,NSP160201409

main58325-52110iNHP160201812

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-52010iNCP16#,NHP160,NSP160201409

58337DREINFORCEMENT, REAR FLOOR PAN, LH

main58337-52010iNCP16#,NHP160,NSP160201409

58367BBRACKET, FUEL TUBE

main58367-52060iNCP16#..SUCD201409-202007

58397CCOVER, BODY LOWER BACK, RH

main58397-52030iNCP16#,NHP160,NSP160201409

58398CCOVER, BODY LOWER BACK, LH

main58398-52020iNCP16#,NHP160,NSP160201409

9011506166

main90115-06166

9011506219

main90115-06219

9011506243

main90115-06243

9011908C64

main90119-08C64

9017408030

main90174-08030

9165140816

main91651-40816

9422380600

main94223-80600

9422380800

main94223-80800

43 parts on this diagram · 2 diagrams in section
