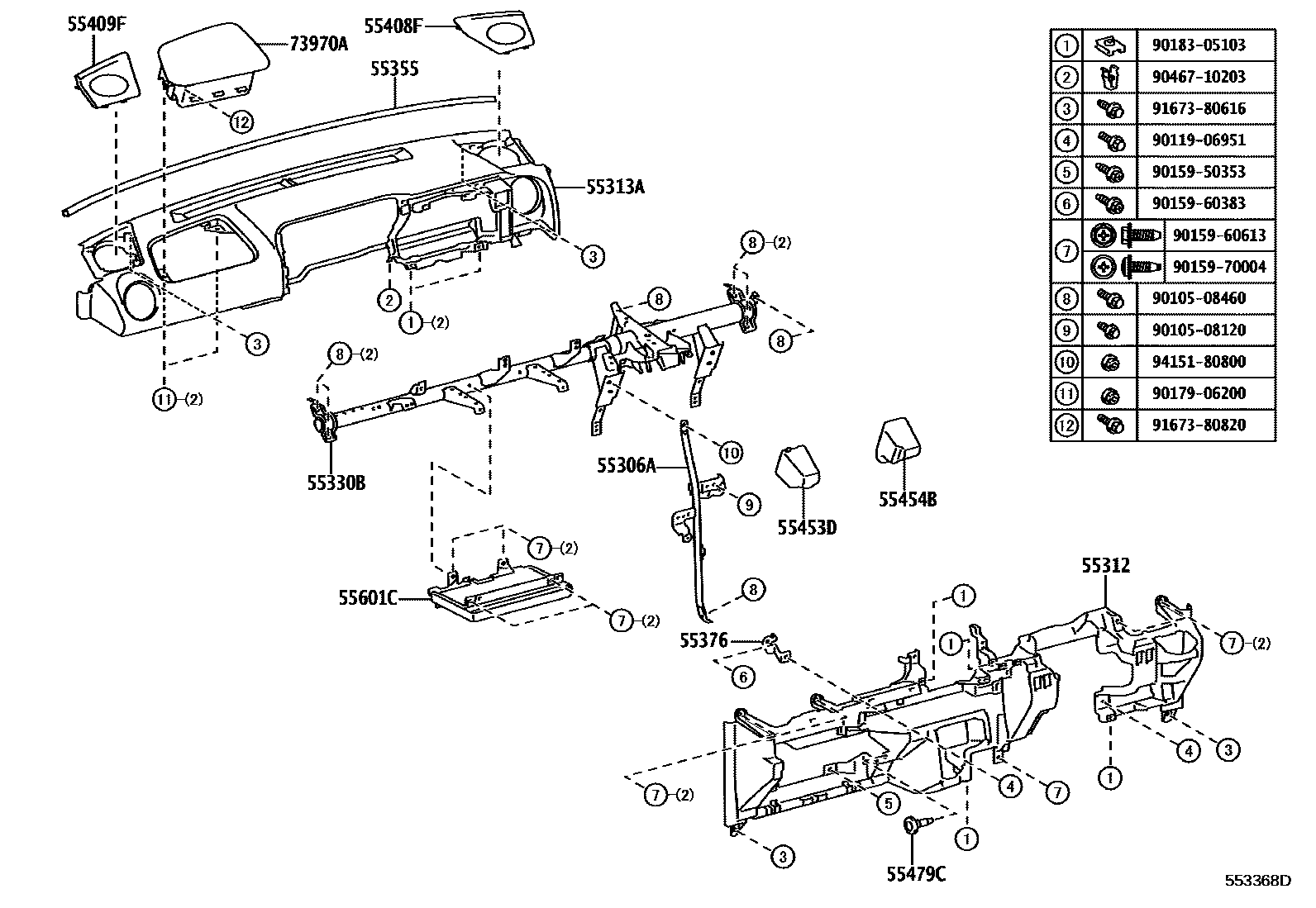

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1��������� 0004 1����� 0005 1����������

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52320iNCP16#,NSP160¥3,720201409-201609

main55306-52321iNCP16#,NSP160¥3,720201609-201612

sub55306-52322¥2,350

main55306-52322iNCP16#..SUCD¥2,350201701-202007

main55306-52400iNHP160..PROB¥2,510201812-202007

55312PANEL, INSTRUMENT, LOWER

main55312-52290-C0iNCP16#,NHP160,NSP160201409

BLACK,TRIM1#

55313APANEL, INSTRUMENT MAIN

main55311-52270-C0iNCP16#,NSP160201409-201609

BLACK,TRIM1#

main55311-52271-C0iNCP16#,NHP160,NSP160201609

BLACK,TRIM1#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-52750iNCP16#,NSP160¥21,800201409-201609

sub55330-52890¥18,100

main55330-52880iNCP160¥18,200201609-201802

sub55330-52881¥13,800

main55330-52881iNCP160,NHP160¥13,800201802

main55330-52890iNCP165,NSP160¥18,100201609-201802

sub55330-52891¥13,600

main55330-52891iNCP165,NSP160¥13,600201802

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52050iNCP16#,NHP160,NSP160¥620201409

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-52140iNCP16#,NHP160,NSP160¥240201409

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-52060-C0iNCP16#,NHP160,NSP160201409

BLACK,TRIM1#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-52060-C0iNCP16#,NHP160,NSP160201409

BLACK,TRIM1#

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-52120iNCP16#,NHP160..SUCD¥1,580201409-202007

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-52160iNCP16#,NHP160,NSP160..PROB¥1,340201409-202007

55479CCLIP(FOR INSTRUMENT LOWER COVER)

main90467-07043-C0iNCP16#,NHP160,NSP160201409

BLACK,TRIM1#

sub90467-07043¥60

55601CTRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55601-52020-C0iNCP16#,NHP160,NSP160201409

BLACK,TRIM1#

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-52140-C0iNCP16#,NSP160201409-201803

BLACK,TRIM1#

sub73970-52330¥109,000

main73970-52141-C0iNCP16#,NHP160,NSP160201805

BLACK,TRIM1#

main73970-52330-C0iNCP16#,NSP160201803-201804

BLACK,TRIM1#

sub73970-52141¥82,100

9010508120

main90105-08120¥90

9010508460

main90105-08460¥80

9011906951

main90119-06951¥80

9015950353

main90159-50353¥60

9015960383

main90159-60383¥70

9015960613

main90159-60613¥60

9015970004

main90159-70004¥60

9017906200

main90179-06200¥70

9018305103

main90183-05103¥90

9046710203

main90467-10203¥60

9167380616

main91673-80616¥60

9167380820

main91673-80820¥80

9415180800

main94151-80800¥80

26 parts on this diagram · 5 diagrams in section
