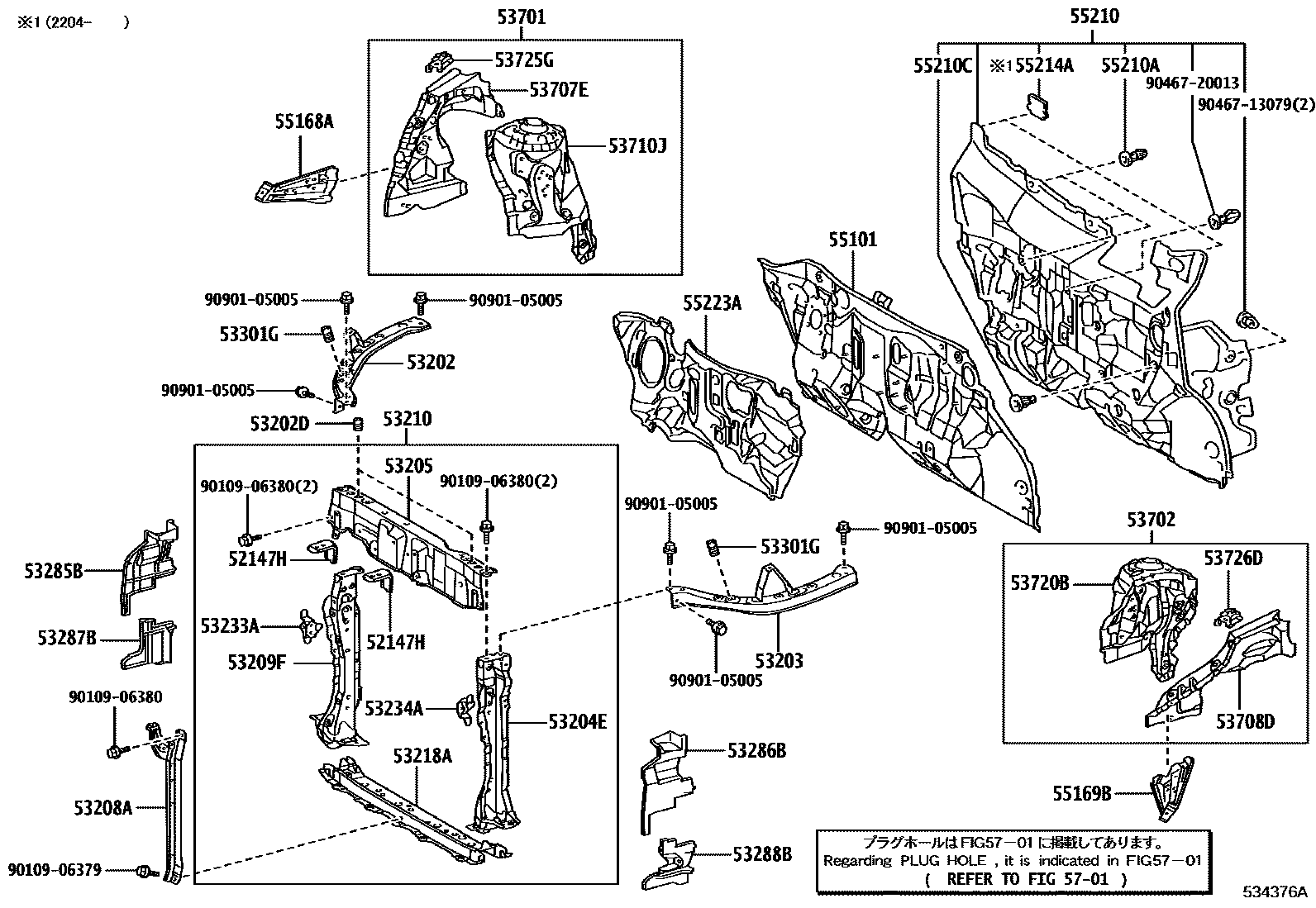

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

52147HBRACKET, FRONT BUMPER MOUNTING

main52147-52120×2iNCP16#,NHP160,NSP160201409

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-52220iNCP16#,NHP160,NSP160201409

53202DCUSHION, RADIATOR SUPPORT

main90541-15111×2iNCP16#,NHP160,NSP160201409

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-52210iNCP16#,NHP160,NSP160201409

53204EBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, LH

main53204-52020iNCP16#,NHP160,NSP160201409

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-52150iNHP160201812

main53205-52170iNCP16#,NSP160201409

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-52150iNCP16#,NSP160201409

main53208-52170iNHP160201812

53209FBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, RH

main53209-52030iNCP16#,NHP160,NSP160201409

53210SUPPORT ASSY, RADIATOR

main53210-52210iNCP16#,NSP160201409

main53210-52270iNHP160201812

53218ASUPPORT, RADIATOR, LOWER

main53028-52091iNCP16#,NHP160,NSP160201409

53233ABRACKET, HEADLAMP, NO.1 RH

main53233-52070iNCP16#,NHP160,NSP160201409

53234ABRACKET, HEADLAMP, NO.1 LH

main53234-52080iNCP16#,NHP160,NSP160201409

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-52480iNCP16#..SUCD201409-202007

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-52400iNCP16#..SUCD201409-202007

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-52240iNCP16#,NHP160,NSP160201409

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-52230iNCP16#,NHP160,NSP160201409

53301GCUSHION, HOOD BUMPER

main90541-15037×2iNCP16#,NHP160,NSP160201409

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-52230iNHP160201812

main53701-52240iNCP16#,NSP160201409

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-52240iNCP16#,NHP160,NSP160201409

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-52070iNCP16#,NHP160,NSP160201409

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-52070iNCP16#,NHP160,NSP160201409

53710JAPRON ASSY, FRONT FENDER, RH

main53710-52020iNCP16#,NSP160201409

main53710-52030iNHP160201812

53720BAPRON ASSY, FRONT FENDER, LH

main53720-52030iNCP16#,NHP160,NSP160201409

53725GAPRON, FRONT FENDER NO.2 SIDE, RH

main53725-52020iNCP16#,NHP160,NSP160201409

53726DAPRON, FRONT FENDER NO.2 SIDE, LH

main53726-52020iNCP16#,NHP160,NSP160201409

55101PANEL SUB-ASSY, DASH

main55101-52630iNCP16#,NSP160201409

main55101-52680iNHP160201812

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-52150iNCP16#,NHP160,NSP160201409

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-52150iNCP16#,NHP160,NSP160201409

55210INSULATOR ASSY, DASH PANEL

main55210-52360iNHP160201812-202202

main55210-52361iNHP160202203

main55210-52410iNCP16#,NSP160201409-202202

main55210-52411iNCP16#,NSP160202203

55210ACLIP

main90467-11122×3iNCP16#,NHP160,NSP160201409

55210CCLIP

main90467-11123iNCP16#,NHP160,NSP160201409

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-52230×2iNCP16#,NHP160,NSP160202203

55223AINSULATOR, DASH PANEL, OUTER

main55223-52101iNCP16#,NSP160201409

main55223-52121iNHP160201812

5701

9010906379

main90109-06379

9010906380

main90109-06380

9046713079

main90467-13079

9046720013

main90467-20013

9090105005

main90901-05005

39 parts on this diagram · 2 diagrams in section
