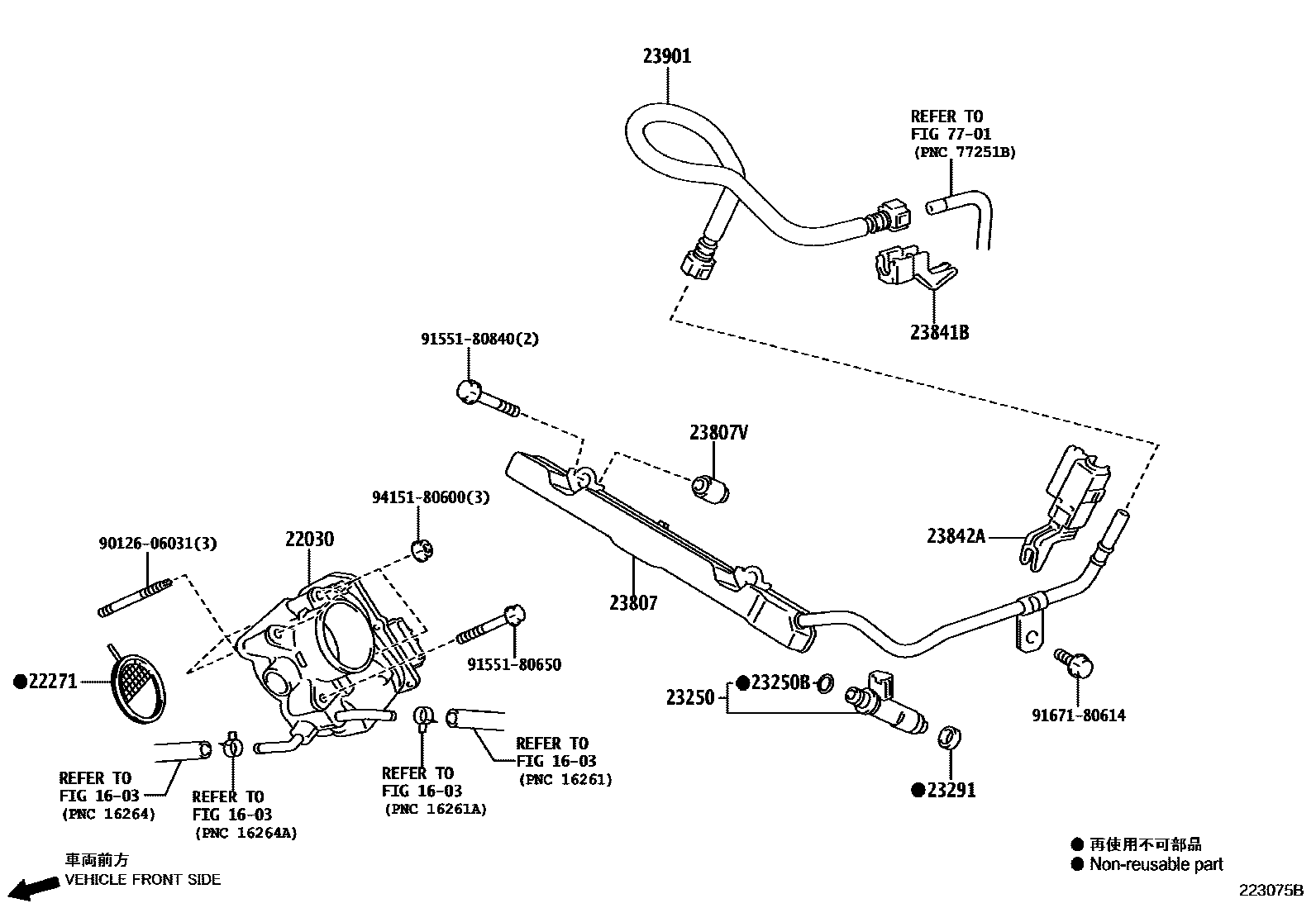

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-21030i1NZFE..NCP165201409

main22030-21040i1NZFE..NCP160201409

main22030-47010i1NRFE..NSP160201409

main22030-47040i1NZFXE..NHP160201812

22271GASKET, THROTTLE BODY

main22271-21060i1NZFE..NCP16#201409

main22271-21070i1NZFXE..NHP160201812

main22271-47010i1NRFE..NSP160201409

23250INJECTOR ASSY, FUEL

main23209-21040×4i1NZFE..NCP165201409-202304

main23209-21100×4i1NZFE..NCP160201409-202304

main23209-21110×4i1NZFXE..NHP160201812

main23209-21120×4i1NZFE..NCP165202305

main23209-21130×4i1NZFE..NCP160202305

main23209-49226×4i1NRFE..NSP160201409

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i1NZFXE..NHP160201409-201908

main90301-C0072×4i1NZFXE..NHP160201908

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i1NZ#,1NRFE..NCP16#,NHP160,NSP160201409

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-21030i1NZFE..NCP16#201409-201410

main23807-21031i1NZFE..NCP16#..PROB201411

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010×2i1NZFE..NCP16#..PROB201409

main23891-47030×2i1NRFE..NSP160201409

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050×2i1NZFE..NCP16#201409

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-37090i1NZFE..NCP16#..SUCD201409-202007

23901TUBE SUB-ASSY, FUEL

main23901-21110i1NZFE..NCP16#201409-202201

main23901-21220i1NZFXE..NHP160201812-202201

main23901-21230i1NZFXE..NHP160202201

main23901-21270i1NZFE..NCP16#202201

main23901-47060i1NRFE..NSP160201409-202201

main23901-47130i1NRFE..NSP160202201

7701

9012606031

main90126-06031

9155180650

main91551-80650

9155180840

main91551-80840

9167180614

main91671-80614

9415180600

main94151-80600

17 parts on this diagram · 3 diagrams in section
