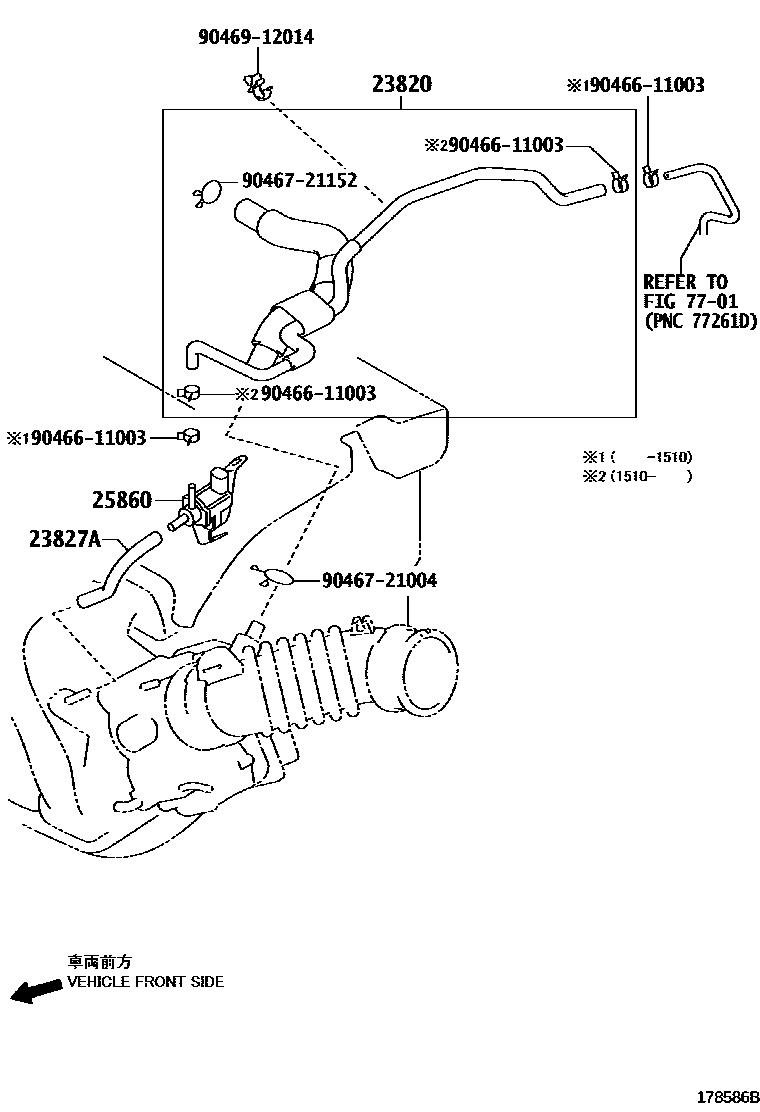

VACUUM PIPING

0001 1 0002 1 0003 1

23820HOSE ASSY, FUEL VAPOR FEED

main23820-21090i1NZFE..NCP16#201409-201509

sub23820-21091

main23820-21091i1NZFE..NCP16#201510

main23820-21160i1NZFXE..NHP160201812

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-21150i1NZFE..NCP16#201409

main23827-21170i1NZFXE..NHP160201812

main23827-47030i1NRFE..NSP160201409

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-21090i1NZFE..NCP16#202201

main25860-21150i1NZFE..NCP16#201409-202201

main25860-47020i1NRFE..NSP160201409

7701

9046611003

main90466-11003

9046721004

main90467-21004

9046721152

main90467-21152

9046912014

main90469-12014

8 parts on this diagram · 3 diagrams in section
