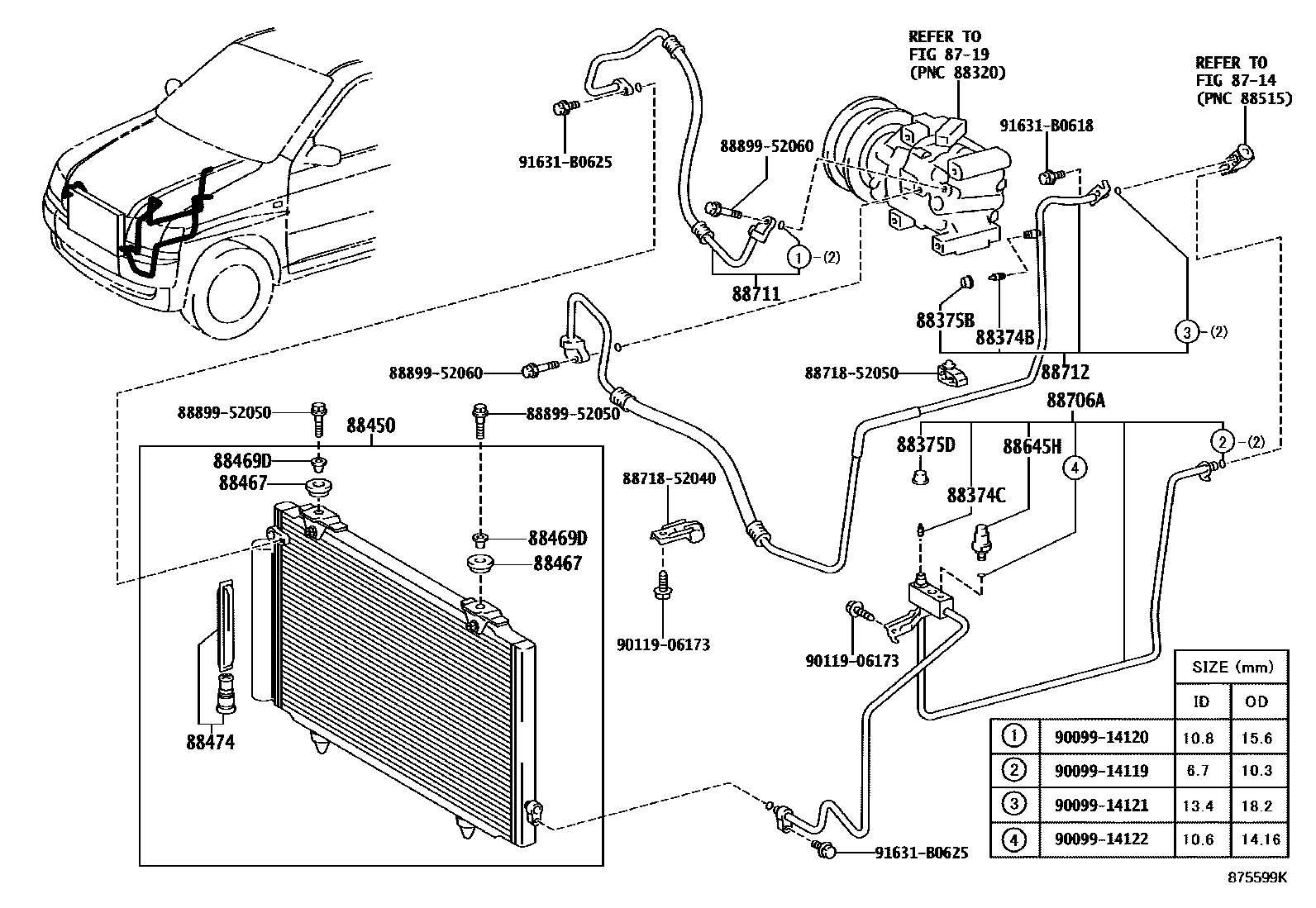

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iNCP5#,NLP51200206-201409

88374CVALVE, SERVICE, NO.2

main88374-30010iNCP5#,NLP51200206-201409

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iNCP5#,NLP51200206-201409

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iNCP5#,NLP51200206-201409

88450CONDENSER ASSY, W/RECEIVER

main88450-52080iNCP51..DX,U;NCP55..4FC..(DX,U)200206-200212

main88450-52081iNCP51..DX,U;NCP55..4FC..(DX,U)200212

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180×2iNCP5#,NLP51200206

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010×2iNCP5#,NLP51200206

88474DRYER, COOLER

main88474-17010iNCP51..DX,U;NCP55..4FC..(DX,U)200206-201409

main88474-52020iNLP51200206-200708

88645HSWITCH, PRESSURE NO.1

main88645-17020iNCP51..DX,U;NCP55..4FC..(DX,U)200206-201305

main88645-60030iNCP51..DX,U;NCP55..4FC..(DX,U)201305-201409

88706ATUBE SUB-ASSY, LIQUID, A

main88706-52140iNCP50,51,55,58,59200206-201108

main88706-52141iNCP51..DX,U;NCP55..4FC..(DX,U)201108

main88706-52350iNCP52200304-200904

main88706-52351iNCP52200905-201108

main88706-52352iNCP52201108

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-52060iNCP50,51,55,58,59..5F200206

main88711-52070iNCP50,51,55,58,59..4FC..(DX,DXJ,F,TX,U)200206

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-52090iNCP50,51,55,58,59..5F200206-201108

main88712-52091iNCP50,51,55,58,59..5F201108

main88712-52120iNCP50,51,55,58,59..4FC..(DX,DXJ,F,TX,U)200206-201108

main88712-52121iNCP51,55..4FC..(DX,U)201108

main88712-52130iNLP51200206-200708

main88712-52230iNCP52200304-200904

main88712-52231iNCP52200905-201108

main88712-52232iNCP52201108

8871852040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52040

8871852050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52050

8889952050COVER, EVAPORATOR

main88899-52050

8889952060COVER, EVAPORATOR

main88899-52060

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009914122

main90099-14122

9011906173

main90119-06173

91631B0618

main91631-B0618

91631B0625

main91631-B0625

25 parts on this diagram · 5 diagrams in section
