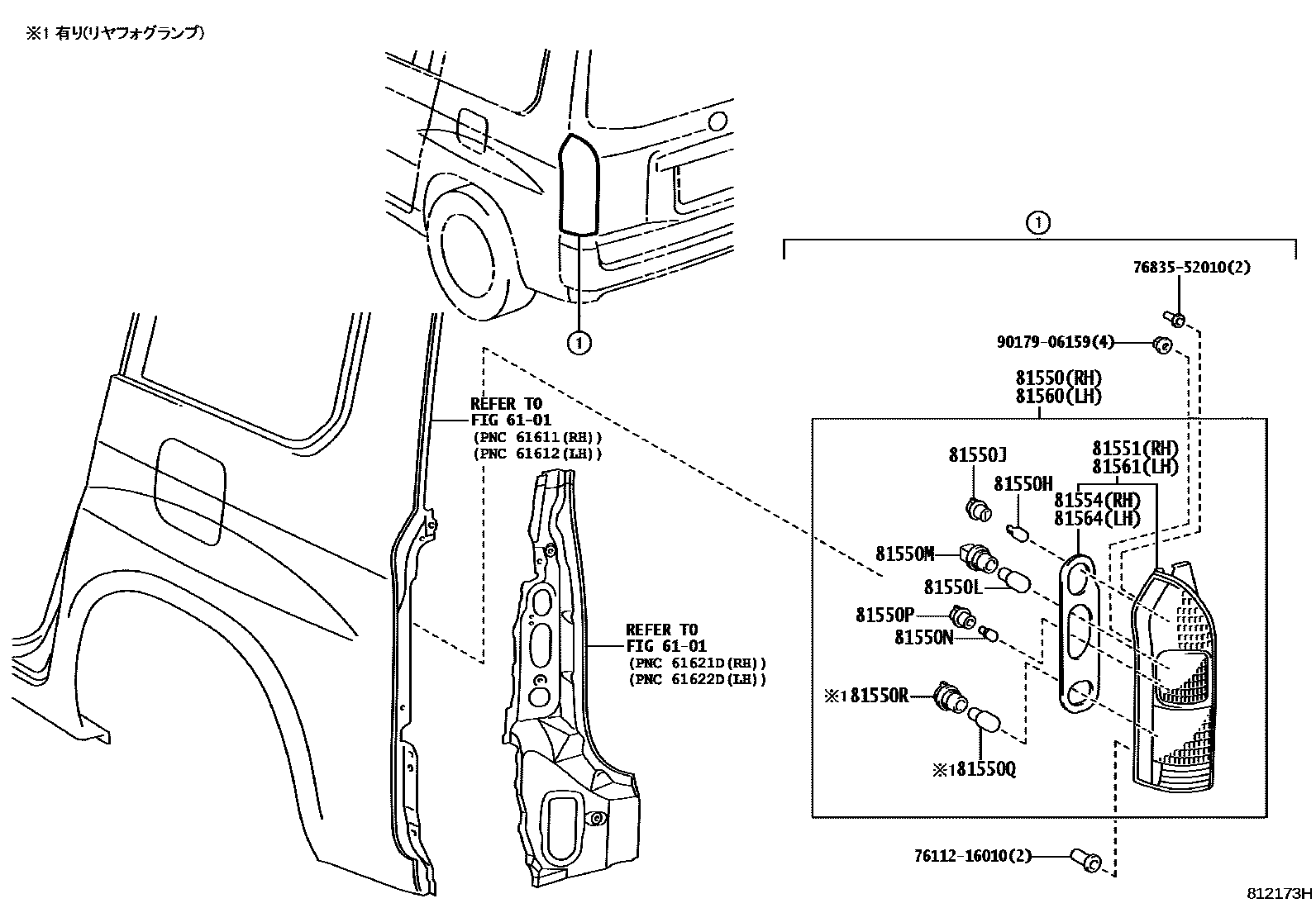

REAR COMBINATION LAMP

0001 1 0002 1

6101SIDE MEMBER

→ Go to FIG 61-01

81550LAMP ASSY, REAR COMBINATION, RH

main81550-52240iNCP5#,NLP51..PROB200206

main81550-52260iNCP51,55,58,59,NLP51..SUCD200206-200507

main81550-52590iNCP51,55,58,59,NLP51..SUCD200508-201006

main81550-52880iNCP51,55,58,59..SUCD201006

81550HBULB, TAIL & STOP LAMP

main90981-11048iNCP51,55,58,59,NLP51..SUCD200206-200508

main90981-13044iNCP5#,NLP51..PROB200206

81550JSOCKET, TAIL & STOP LAMP

main81585-30290iNCP51,55,58,59,NLP51..SUCD200206-200508

main81585-30290iNCP5#,NLP51..PROB200206

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iNCP5#,NLP51200206

81550MSOCKET, REAR TURN SIGNAL LAMP

main81565-52100iNCP5#,NLP51200206

81550NBULB, BACK UP LAMP

main90981-11059iNCP5#,NLP51..PROB200206

81550PSOCKET, BACK UP LAMP

main81555-28240iNCP5#,NLP51..PROB200206

81550QBULB, REAR FOG LAMP, NO.1

81550RSOCKET, REAR FOG LAMP

81551LENS, REAR COMBINATION LAMP, RH

main81551-52240iNCP5#,NLP51..PROB200206

main81551-52260iNCP51,55,58,59,NLP51..SUCD200206-200508

main81551-52590iNCP51,55,58,59,NLP51..SUCD200508-201006

main81551-52880iNCP51,55,58,59..SUCD201006

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-52240iNCP5#,NLP51..PROB200206

main81554-52260iNCP51,55,58,59,NLP51..SUCD200206

81560LAMP ASSY, REAR COMBINATION, LH

main81560-52220iNCP5#,NLP51..PROB200206

main81560-52240iNCP51,55,58,59,NLP51..SUCD200206-200507

main81560-52540iNCP51,55,58,59,NLP51..SUCD200508-201006

main81560-52820iNCP51,55,58,59..SUCD201006

81561LENS, REAR COMBINATION LAMP, LH

main81561-52220iNCP5#,NLP51..PROB200206

main81561-52240iNCP51,55,58,59,NLP51..SUCD200206-200508

main81561-52540iNCP51,55,58,59,NLP51..SUCD200508-201006

main81561-52820iNCP51,55,58,59..SUCD201006

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-52220iNCP5#,NLP51..PROB200206

main81564-52240iNCP51,55,58,59,NLP51..SUCD200206

7611216010

main76112-16010

7683552010RETAINER, REAR SPOILER SIDE, NO.1

main76835-52010

9017906159

main90179-06159

18 parts on this diagram · 2 diagrams in section
