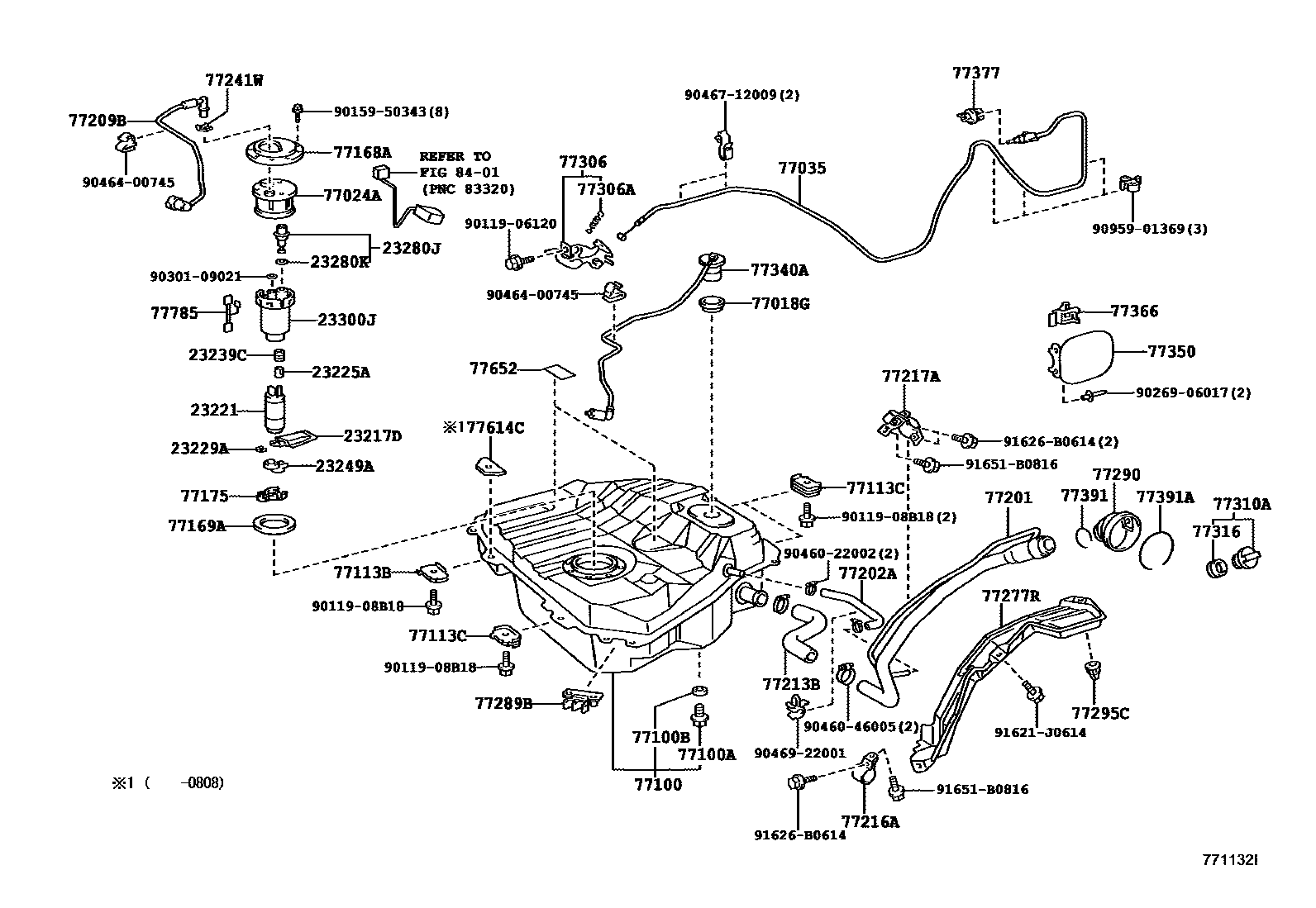

FUEL TANK & TUBE

0001 1��-�� ��� 0002 1��-�� ��� 0003 1��-�� ��� 0004 1��-�� ��-�� 0005 1��-�� ��-�� 0006 1��-�� ��-��

23217DFILTER, FUEL PUMP

main23217-0D070i1NZFE,2NZFE..NCP50,51,55,58,59200501

main23217-74021i1NZFE,2NZFE..NCP50,55..DXJ200206-200304

23221PUMP, FUEL

main23221-22030i1NZFE,2NZFE..NCP50,51,55,58,59..DX,F,GL,TX,U,UL200206-200412

main23221-22140i1NZFE,2NZFE..NCP50,51,55,58,59200612

23225ASPACER, FUEL PUMP

main23225-21010i1NZFE,2NZFE..NCP50,55..DXJ200206-200304

23229ACLIP(FOR FUEL PUMP FILTER)

main23229-16010i1NZFE,2NZFE..NCP50,51,55,58,59..DX,F,GL,TX,U,UL200206-200412

23239CSEAL, FUEL PUMP FILTER

main23239-21010i1NZFE,2NZFE..NCP50,55..DXJ200206-200304

23249ARUBBER, CUSHION(FOR FUEL PUMP)

main23249-74610i1NZFE,2NZFE..NCP50,55..DXJ200206-200304

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-22010i1NZFE,2NZFE..NCP50,55..DXJ200206-200304

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07020i1NZFE,2NZFE..NCP50,55..DXJ200206-200304

23300JFILTER ASSY, FUEL

main23300-23040i1NZFE,2NZFE..NCP50,55..DXJ200206-200304

77018GGASKET, FUEL TANK EVAP/VENT TUBE

main77179-33010iNCP50,55,NLP51..DXJ200206-200304

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-52060iNLP51..DXJ200206-200304

main77024-52070iNCP50,55..DXJ200206-200304

sub77024-52270

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-52110iNCP5#,NLP51200206

77100TANK ASSY, FUEL

main77001-52060iNCP50,55,NLP51..DXJ200206-200304

main77001-52240iNCP50,51,55,58,59200806-201303

main77001-52241iNCP50,51,55,58,59201304

sub77001-52510

main77100-52380iNCP52200304

main77100-52390iNCP52200304

77100APLUG(FOR FUEL TANK)

main90105-12116iNCP50,55,NLP51..DXJ200206-200304

77100BGASKET(FOR FUEL TANK)

main90430-12245iNCP50,51,55,58,59,NLP51..DX,F,GL,TX,U,UL200206

77113BPLATE, FUEL TANK SIDE

main77113-37030iNCP52200304

main77113-52020iNCP50,55,NLP51..DXJ200206-200304

77113CPLATE, FUEL TANK SIDE

main77113-52040×3iNCP50,55,NLP51..DXJ200206-200304

77168APLATE, FUEL TANK VENT TUBE SET

main77168-33050iNCP50,55,NLP51..DXJ200206-200304

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iNCP50,55,NLP51..DXJ200206-200304

77175SUPPORT, FUEL SUCTION, NO.2

main77175-52020iNCP50,55..DXJ200206-200304

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-52100iNCP50,55,NLP51..DXJ200206-200304

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main77269-52030iNCP50,55,NLP51..DXJ200206-200304

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-52060iNCP50,55..DXJ200206-200304

sub77209-52380

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-52060iNCP50,55,NLP51..DXJ200206-200304

sub77213-52300

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-52060iNCP50,55,NLP51..DXJ200206-200304

sub77216-52270

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-32050iNCP50,55,NLP51..DXJ200206-200304

77241WCLIP, TUBE JOINT

main77241-32060iNCP50,51,55,58,59..DX,F,GL,TX,U,UL200206

main77241-60320×2iNLP51..DX,GL,U,UL200206-200708

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-52010iNCP50,55,NLP51..DXJ200206-200304

77289BCLAMP, FUEL TUBE, NO.3

main77289-52010iNCP50,55,NLP51..DXJ200206-200304

main77289-52080iNCP52200304

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-52050iNCP5#,NLP51200206

77295CGROMMET, FUEL TUBE

main77295-52020×2iNCP50,55,NLP51..DXJ200206-200304

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-13020iNCP5#,NLP51200206

77306ASPRING, FUEL LID OPEN LEVER

main90506-09004iNCP5#,NLP51200206

77310ACAP ASSY, FUEL TANK

main77300-52030iNCP50,51,55,58,59201006

main77310-12150iNLP51..DXJ200206-200304

main77310-48010iNCP50,55..DXJ200206-200304

77316GASKET, FUEL TANK CAP

main77316-16010iNCP50,55,NLP51..DXJ200206-200304

main77316-52040iNCP50,51,55,58,59201006

77340AVALVE ASSY, FUEL CUT OFF W/TUBE

main77340-52020iNCP50,51,55,58,59..DX,F,GL,TX,U,UL200206

sub77340-52040

main77340-52030iNLP51..DX,GL,U,UL200206-200708

77350LID ASSY, FUEL FILLER OPENING

main77350-52080iNCP5#,NLP51200206-201409

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30080iNCP5#,NLP51200206

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iNCP5#,NLP51200206

77391RING, FUEL INLET BOX

main77391-12020iNCP5#,NLP51200206

77391ARING, FUEL INLET BOX

main77391-12040iNCP5#,NLP51200206

77614CSEAL, FUEL TANK COVER

main77614-52010×8iNCP50,51,55,58,59,NLP51..DX,F,GL,TX,U,UL200206-200806

77652CUSHION, FUEL TANK, NO.1

main77651-52010×2iNCP52200304

main77652-12100×2iNCP50,51,55,58,59,NLP51..DX,F,GL,TX,U,UL200206

77785HARNESS, FUEL PUMP

main77785-32010iNCP50,55..DXJ200206-200304

8401

9011906120

main90119-06120

9011908B18

main90119-08B18

9015950343

main90159-50343

9026906017

main90269-06017

9030109021

main90301-09021

9046022002

main90460-22002

9046046005

main90460-46005

9046400745

main90464-00745

9046712009

main90467-12009

9046922001

main90469-22001

9095901369

main90959-01369

91621J0614

main91621-J0614

91626B0614

main91626-B0614

91651B0816

main91651-B0816

59 parts on this diagram · 6 diagrams in section
