FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-52060iNCP5#,NLP51200206

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-52060iNCP5#,NLP51200206

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67771-12060×2iNCP5#,NLP51200206

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67650-52320-B0iNCP50,51,55,58,59,NLP51..DX,DXJ,F200206-201409

DK.GRAY,TRIM1#

main67650-52340-B0iNCP52;NCP50,51,55,NLP51..GL200206-201409

main67650-52370-B0iNCP51,55,58,59,NLP51..TX,UL200206-201409

DK.GRAY,TRIM1#

main67610-52B10-B0iNCP58,59..F200305-201310

main67610-5C570-B0iNCP58,59..TX200206

main67610-5C570-B1iNCP58,59..TX200305-201310

main67650-52350-B0iNCP58,59..F200206-201310

main67650-52360-B0supersedes 67650-52330-B1iNCP51,55,NLP51..U200206-201409

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67660-52270-B0iNCP50,51,55,NLP51..GL200206-201409

DK.GRAY,TRIM1#

main67660-52330-B0iNCP52;NCP50,51,55,NLP51..GL200206-201409

main67660-52360-B0iNCP51,55,58,59,NLP51..TX,UL200206-201409

DK.GRAY,TRIM1#

main67620-52B00-B0iNCP58,59..F200305-201310

main67620-5C580-B0iNCP58,59..TX200206

main67620-5C580-B1iNCP58,59..TX200305-201310

main67660-52340-B0iNCP58,59..F200206-201310

main67660-52350-B0supersedes 67660-52320-B0iNCP51,55,NLP51..U200206-201409

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-52100iNCP5#,NLP51200206-201409

sub68171-52101

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-52040iNCP5#,NLP51200206-201409

sub68172-52041

7401

9016450032

main90164-50032

9016460018

main90164-60018

9018905003

main90189-05003

9046707190B2

main90467-07190B2

9046709206

main90467-09206

9046710161

main90467-10161

9090189022

main90901-89022

9356055020

main93560-55020

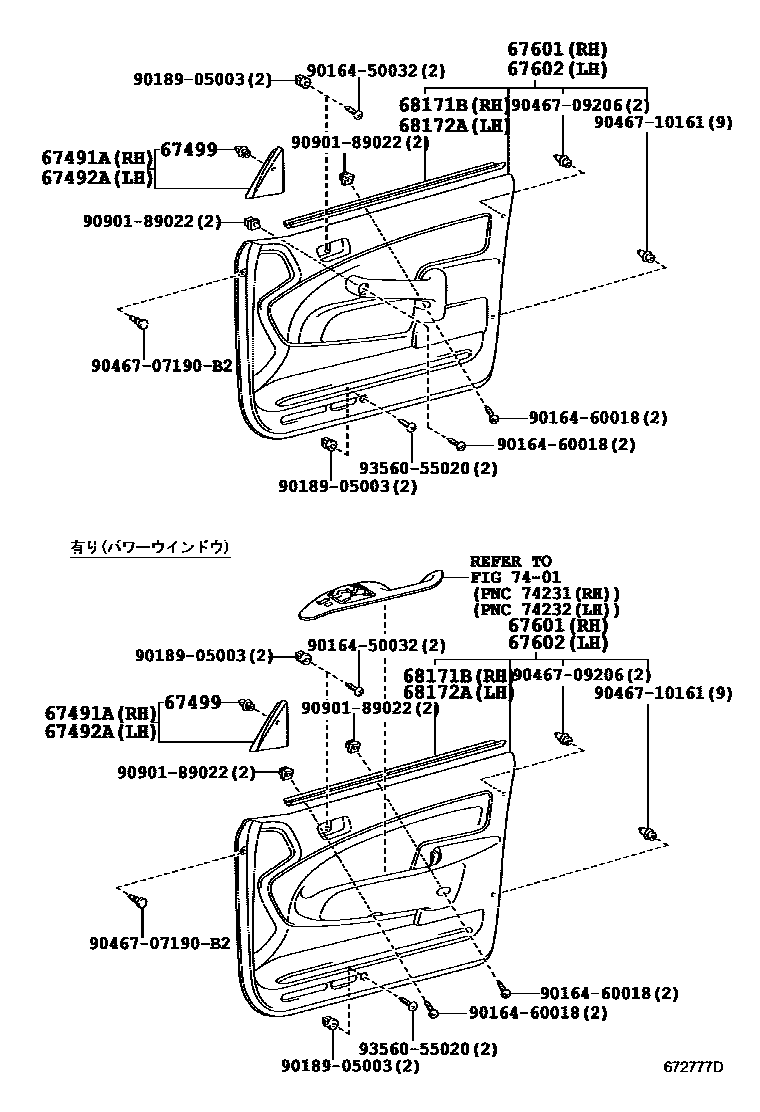

16 parts on this diagram · 3 diagrams in section
