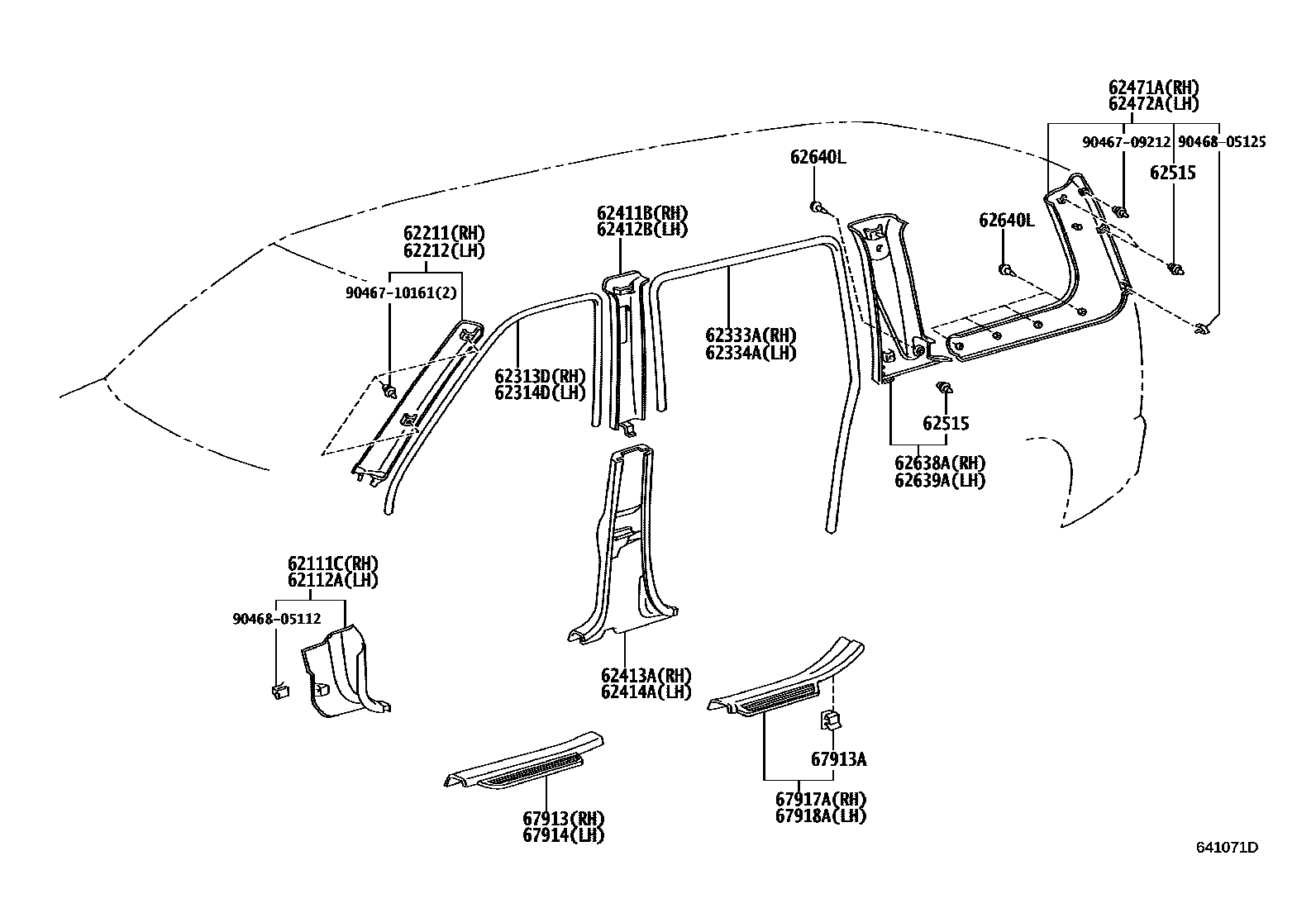

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111CBOARD, COWL SIDE TRIM, RH
62112ATRIM SUB-ASSY, COWL SIDE, LH
62211GARNISH, FRONT PILLAR, RH
LT.GRAY,TRIM1#
62212GARNISH, FRONT PILLAR, LH
LT.GRAY,TRIM1#
62313DTRIM, FRONT DOOR OPENING, RH
62314DTRIM, FRONT DOOR OPENING, LH
62333ATRIM, REAR DOOR OPENING, RH
62334ATRIM, REAR DOOR OPENING, LH
62411BGARNISH, CENTER PILLAR, UPPER RH
LT.GRAY,TRIM1#
62412BGARNISH, CENTER PILLAR, UPPER LH
LT.GRAY,TRIM1#
62413AGARNISH, CENTER PILLAR, LOWER RH
DK.GRAY,TRIM1#
62414AGARNISH, CENTER PILLAR, LOWER LH
DK.GRAY,TRIM1#
62471AGARNISH, ROOF SIDE, INNER RH
LT.GRAY,TRIM1#
62472AGARNISH, ROOF SIDE, INNER LH
LT.GRAY,TRIM1#
62515CLIP, QUARTER INSIDE TRIM
62638AGARNISH, QUARTER PILLAR, RH
LT.GRAY,TRIM1#
62639AGARNISH, QUARTER PILLAR, LH
LT.GRAY,TRIM1#
62640LCLIP(FOR QUARTER TRIM)
67913PLATE, FRONT DOOR SCUFF, RH
DK.GRAY,TRIM1#
67913ACLIP(FOR SCUFF PLATE)
67914PLATE, FRONT DOOR SCUFF, LH
DK.GRAY,TRIM1#
67917APLATE, REAR DOOR SCUFF, RH
DK.GRAY,TRIM1#
67918APLATE, REAR DOOR SCUFF, LH
DK.GRAY,TRIM1#
9046709212
main90467-09212
9046710161
main90467-10161
9046805112
main90468-05112
9046805125
main90468-05125
27 parts on this diagram · 1 diagram in section
