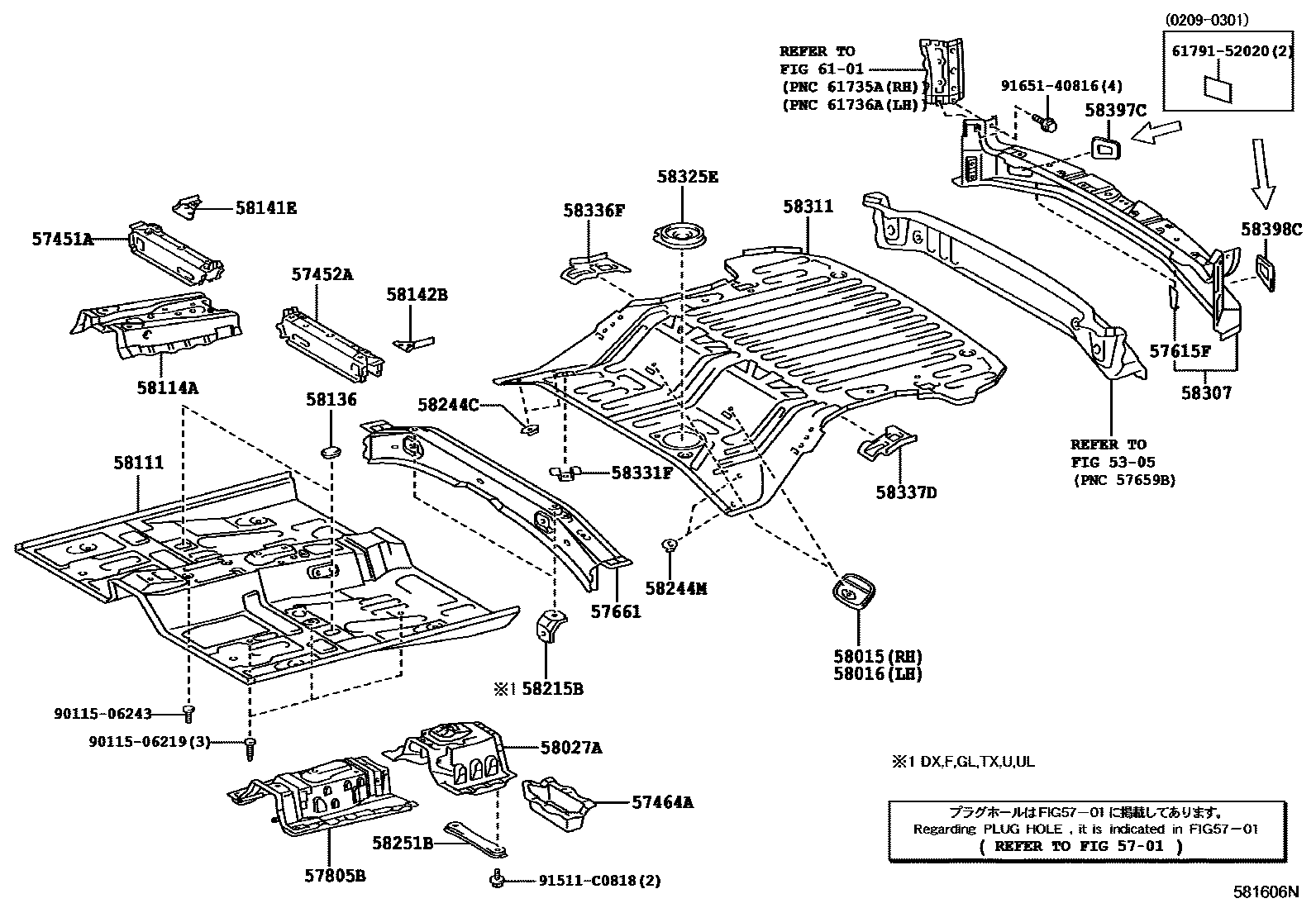

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1

5305

5701

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-52021iNCP55,59200206

main57451-52031iNCP50,51,52,58,NLP51200206

57452AMEMBER, FRONT FLOOR CROSS, NO.2

main57452-52030iNCP55,59200206

main57452-52070iNCP50,51,58,NLP51200206-200211

main57452-52110iNCP50,51,52,58,NLP51200211

sub57452-52022

57464AREINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH

main57464-52010iNCP50,51,52,58,NLP51200206

main57464-52020iNCP55,59200206

57615FBRACKET, REAR BUMPER MOUNTING

main52185-52050×2supersedes 52185-52050iNCP52,55;NCP51,58,59,NLP51..F,TX,U,UL200206-201409

57661PANEL, REAR FLOOR SIDE, FRONT RH

main57661-52040iNCP5#,NLP51200206

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-52030iNCP55,59200206

main57805-52060iNCP50,51,52,58,NLP51200206

58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH

main58015-52030iNCP50,51,55,58,59,NLP51200206

58016REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH

main58015-52030iNCP50,51,55,58,59,NLP51200206

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-52010iNCP50,51,52,58,NLP51200206

58111PAN, FRONT FLOOR

main58111-52901iNCP55,59200206-201006

main58111-52906iNCP50,51,52,58,NLP51200206

main58111-52930iNCP55,59201006

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-52010iNCP50,51,52,58,NLP51200206-200605

main58114-52011iNCP50,51,52,58,NLP51200606

main58114-52020iNCP55,59200206-200605

main58114-52021iNCP55,59200606

58136COVER, FRONT FLOOR HOLE

main58136-52010×2iNCP5#,NLP51200206

58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH

main58141-52010iNCP5#,NLP51200206

58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH

main58142-52010iNCP5#,NLP51200206

58215BBRACKET, REAR SEAT MOUNTING, RH

main58215-52050×2iNCP50,51,55,NLP51..DX,GL200206

58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH

main58244-52060×2iNCP5#,NLP51200206

58244MBRACKET, REAR SEAT CUSHION MOUNTING, LH

main58244-52060×2iNCP5#,NLP51200206

58251BBRACE, FLOOR PANEL, FRONT

main58251-52010iNCP50,51,52,58,NLP51200206

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-52160supersedes 58307-52160iNCP52,55,58,59..PROB200206-201210

main58307-52161iNCP5#..PROB201211

sub58307-52162

main58307-52170iNCP51,55,58,59,NLP51..SUCD200206-201210

main58307-52171iNCP51,55,58,59..SUCD201211

58311PAN, REAR FLOOR

main58032-52010iNCP52200304-201409

main58311-52100iNCP50,51,55,58,59,NLP51200206-201308

sub58309-52150

main58311-52270iNCP50,51,55,58,59201308-201409

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-52020iNCP50,51,55,58,59,NLP51200206

58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58331-10010iNCP50,51,55,58,59,NLP51200206

58336FREINFORCEMENT, REAR FLOOR PAN, RH

main58336-52010iNCP5#,NLP51200206

58337DREINFORCEMENT, REAR FLOOR PAN, LH

main58337-52010iNCP5#,NLP51200206

58397CCOVER, BODY LOWER BACK, RH

main58397-52030iNCP5#,NLP51200301

58398CCOVER, BODY LOWER BACK, LH

main58398-52020iNCP5#,NLP51200301

6101

6179152020BRACE, QUARTER INNER PANEL

main61791-52020

9011506219

main90115-06219

9011506243

main90115-06243

91511C0818

main91511-C0818

9165140816

main91651-40816

34 parts on this diagram · 3 diagrams in section
