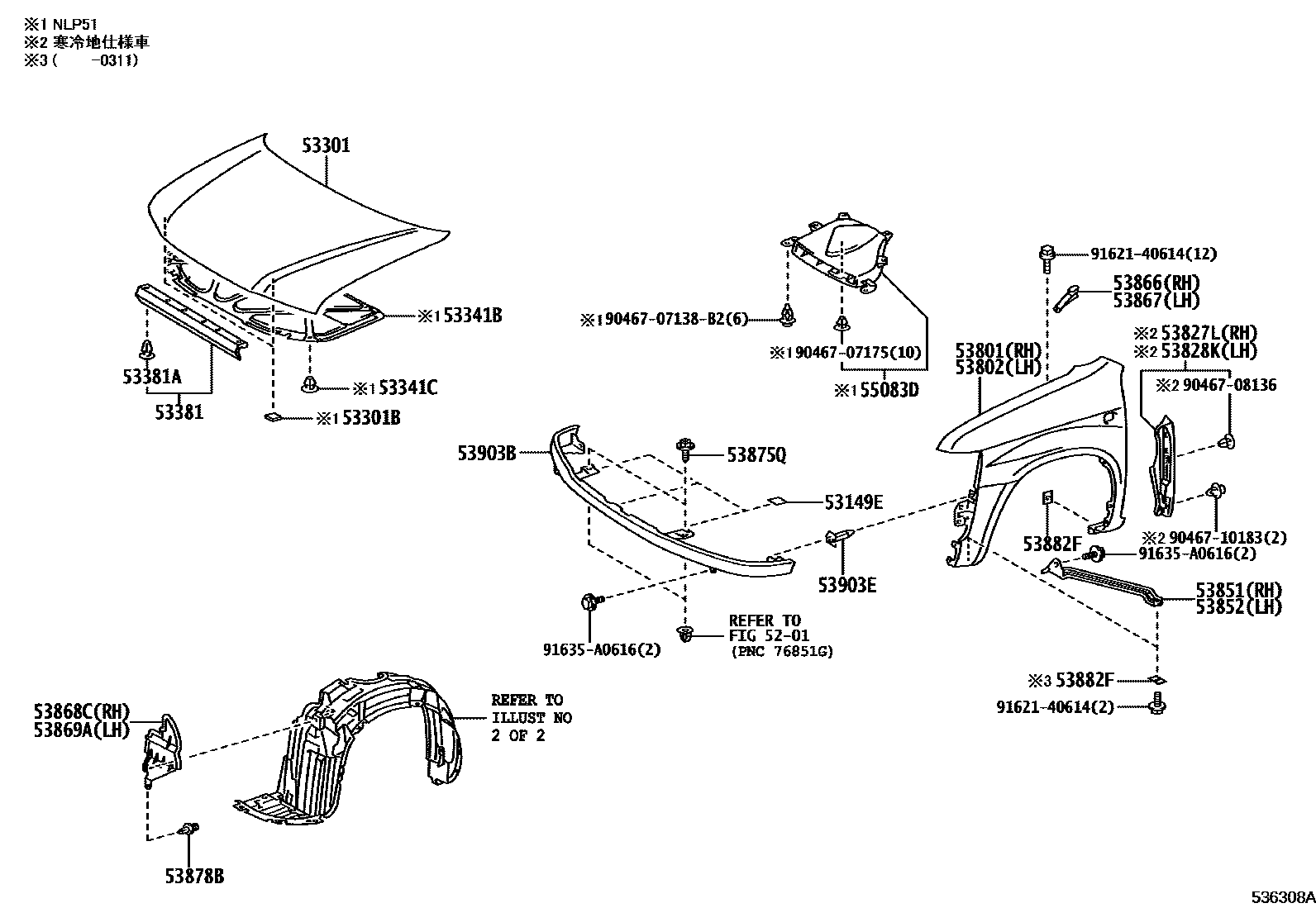

HOOD & FRONT FENDER

0001 1 0002 1�������� 0003 1 0004 1��������

5201

53149EPROTECTOR, RADIATOR GRILLE

main53149-46010×3iNCP5#,NLP51..PROB200206-200208

main53149-52020×3iNCP5#,NLP51..PROB200208

53301HOOD SUB-ASSY

main53301-52100iNCP5#,NLP51200206-201409

53301BCUSHION, HOOD BUMPER

main53388-52010×2iNLP51200206-200708

53341BINSULATOR, HOOD

main53341-52070iNLP51200206-200708

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×4iNLP51200206-200708

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-52030iNCP5#200206

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×6iNCP5#200206

53801FENDER SUB-ASSY, FRONT RH

main53811-52110iNCP5#,NLP51..PROB200206-201409

main53811-52120iNCP51,55,58,59,NLP51..SUCD200206-201409

53802FENDER SUB-ASSY, FRONT LH

main53812-52110iNCP5#,NLP51..PROB200206-201409

main53812-52120iNCP51,55,58,59,NLP51..SUCD200206-201409

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52060iNCP5#,NLP51200206

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52060iNCP5#,NLP51200206

53851BRACE, FRONT FENDER TO RADIATOR SUPPORT, RH

main53851-52040iNCP5#,NLP51..PROB200206

53852BRACE, FRONT FENDER TO RADIATOR SUPPORT, LH

main53852-52040iNCP5#,NLP51..PROB200206

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52030iNCP5#,NLP51200206

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52030iNCP5#,NLP51200206

53868CSEAL, FRONT FENDER TO COWL SIDE, NO.2 RH

53869ASEAL, FRONT FENDER TO COWL SIDE, NO.2 LH

main53869-52010iNCP5#,NLP51..PROB200305

main53869-52020iNCP51,55,58,59,NLP51..SUCD200305

53875QSCREW, NO.2

main90159-50311×2iNCP5#,NLP51..PROB200206-201409

53878BPROTECTOR, FRONT FENDER LINER

53882FSEAL, FRONT FENDER

main53882-16030×4iNCP5#,NLP51..PROB200206-200311

53903BPANEL SUB-ASSY, FRONT END

main53903-52900iNCP5#,NLP51..PROB200206

53903ECLIP, FRONT END PANEL

main53145-52030×2iNCP5#,NLP51..PROB200206

55083DDUCT SUB-ASSY, FRONT VENTILATOR

main55083-52030iNLP51200206-200708

9046707138B2

main90467-07138B2

9046707175

main90467-07175

9046708136

main90467-08136

9046710183

main90467-10183

9162140614

main91621-40614

91635A0616

main91635-A0616

30 parts on this diagram · 4 diagrams in section
