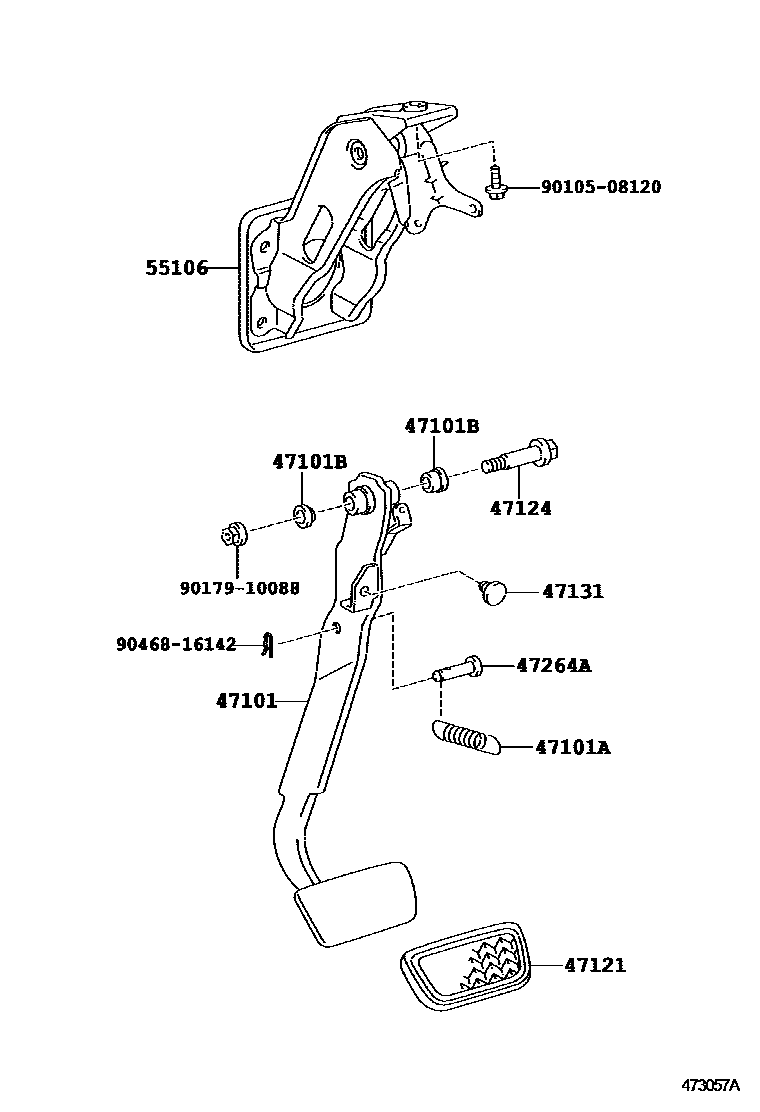

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-52100iNCP50,55,NLP51..5F..DXJ200206-200305

main47101-52110iNCP50,55..4FC..DXJ200206-200305

main47101-52150iNCP50,51,55,58,59..5F200808

main47101-52160iNCP5#..4FC200808

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iNCP50,55,NLP51..DXJ200206-200305

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iNCP50,55,NLP51..DXJ200206-200305

47121PAD, BRAKE PEDAL

main31321-52010iNCP50,55,NLP51..5F..DXJ200206-200305

main47121-52010iNCP50,55..4FC..DXJ200206-200305

47124SHAFT, BRAKE PEDAL

main90109-10167iNCP50,55,NLP51..DXJ200206-200305

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iNCP50,55,NLP51..DXJ200206-200305

47264APIN(FOR PUSH ROD)

main90249-08297iNCP50,55,NLP51..DXJ200206-200305

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-52090iNCP5#,NLP51200206-201409

9010508120

main90105-08120

9017910088

main90179-10088

9046816142

main90468-16142

11 parts on this diagram · 1 diagram in section
