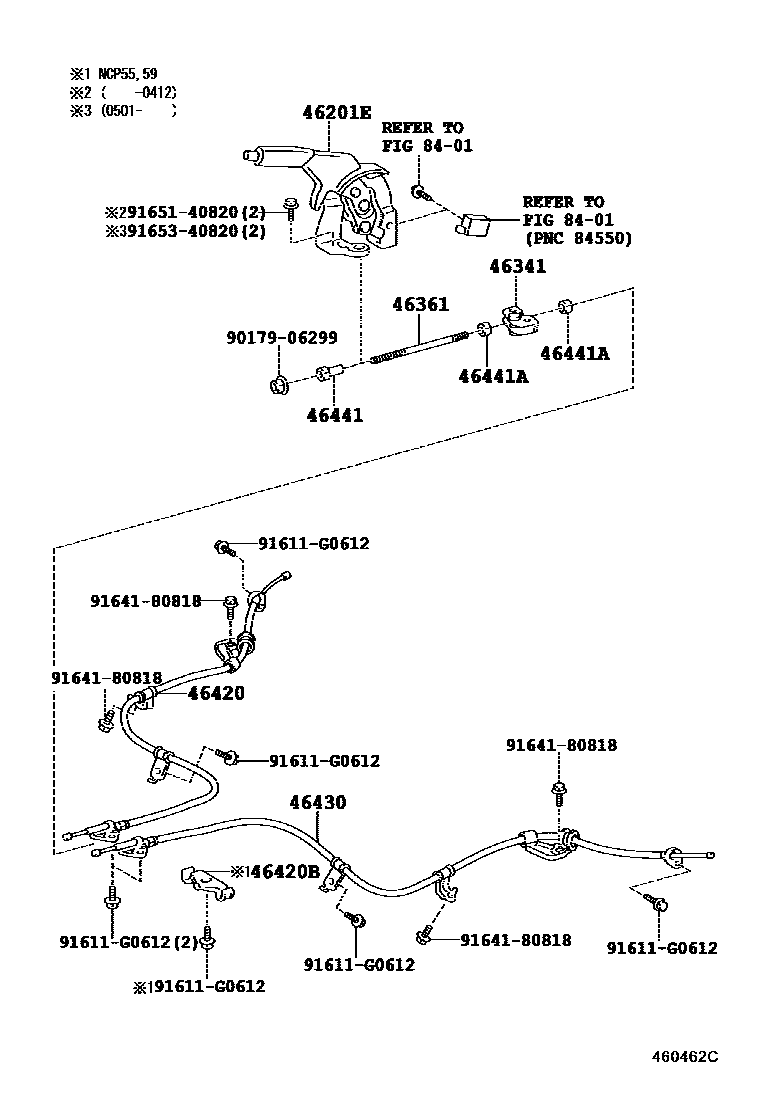

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-52010-B3iNCP5#,NLP51..DX,F,GL,TX,U,UL200206-201409

DK.GRAY,TRIM1#

sub46201-52010

46341EQUALIZER, PARKING BRAKE

main46341-52010iNCP50,55,NLP51..DXJ200206-200304

46361ROD, PARKING BRAKE PULL

main46361-52010iNCP50,55,NLP51..DXJ200206-200304

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52110iNCP5#,NLP51200206-200304

sub46420-52111

main46420-52111iNCP5#,NLP51..DX,F,GL,TX,U,UL200304

sub46420-52112

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46451-52010iNCP55,59200501

main90949-01B84iNCP55..DXJ200206-200412

sub46451-52010

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52110iNCP50,55,NLP51..DXJ200206-200304

sub46430-52111

46441NUT, WIRE ADJUSTING, NO.1

main46441-52010iNCP50,55,NLP51..DXJ200206-200304

46441ANUT, WIRE ADJUSTING, NO.2

main90170-06014iNCP50,55,NLP51..DXJ200206-200304

8401

9017906299

main90179-06299

91611G0612

main91611-G0612

9164180818

main91641-80818

9165140820

main91651-40820

9165340820

main91653-40820

14 parts on this diagram · 1 diagram in section
