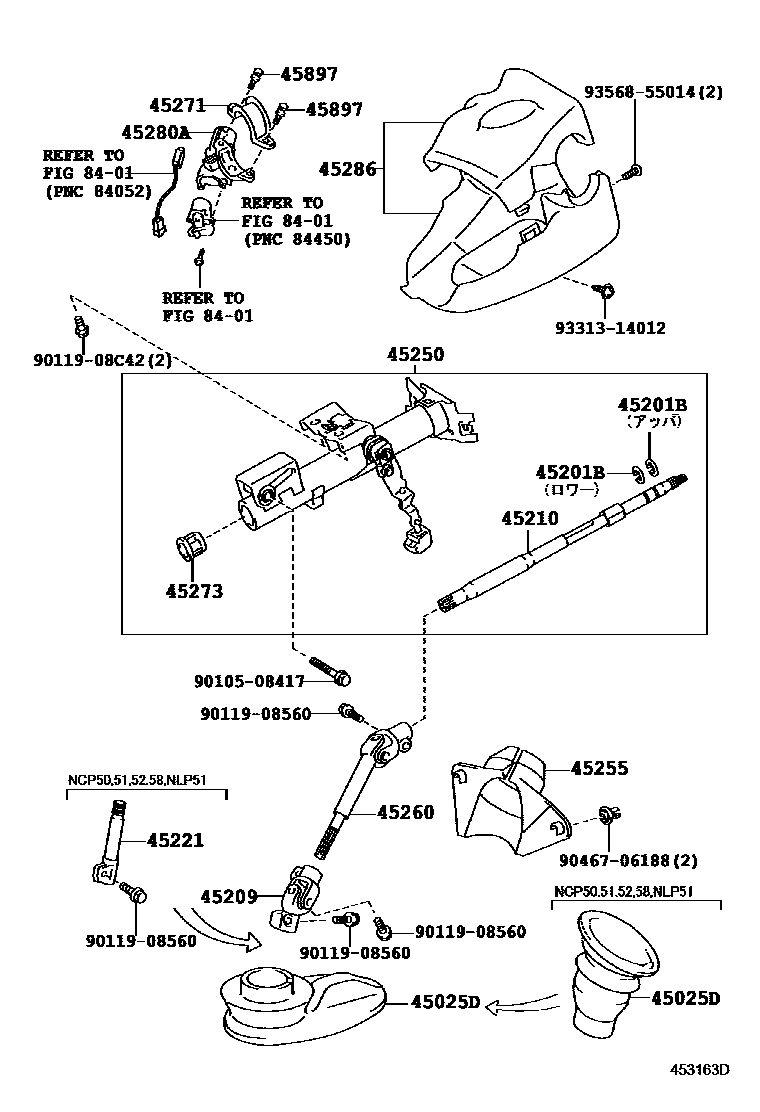

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-52010iNCP50,51,58,NLP51200206-200207

sub45025-52011

main45025-52011iNCP50,NLP51..DXJ200207-200304

main45025-52050iNCP55,59..DX,F,GL,TX,U,UL200206-200304

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iNCP50,55,NLP51..DXJ200206-200304

main90520-17269iNCP50,55,NLP51..DXJ200206-200304

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-52020iNCP50,55,NLP51..DXJ200206-200304

45210SHAFT ASSY, STEERING MAIN

main45210-52010iNCP50,55,NLP51..DXJ200206-200304

45221SHAFT, STEERING INTERMEDIATE

main45297-52010iNCP50,NLP51..DXJ200206-200304

45250COLUMN ASSY, STEERING

main45250-52010iNCP50,55,NLP51..DXJ200206-200304

45255PLATE, STEERING COLUMN HOLE COVER

main45255-52010iNCP50,NLP51..DXJ200206-200304

main45255-52030iNCP55..DXJ200206-200304

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-52010iNCP50,NLP51..DXJ200206-200304

main45260-52020iNCP55..DXJ200206-200304

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iNCP50,55,NLP51..DXJ200206-200304

45273BUSH, STEERING MAIN SHAFT

main45273-33030iNCP50,55,NLP51..DXJ200206-200304

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-52020iNCP50,55,NLP51..5F..DXJ200206-201409

sub45280-52030

main45280-52030iNCP5#..4FC..(DX,F,GL,TX,U,UL)200206-201409

45286COVER, STEERING COLUMN

main45286-52900-B3iNCP50,55,NLP51..DXJ200206-200304

DK.GRAY,TRIM1#

sub45286-52900

45897BOLT, STEERING LOCK SET

main45897-12020iNCP5#,NLP51..DX,F,GL,TX,U,UL200206-200304

8401

9010508417

main90105-08417

9011908560

main90119-08560

9011908C42

main90119-08C42

9046706188

main90467-06188

9331314012

main93313-14012

9356855014

main93568-55014

20 parts on this diagram · 1 diagram in section
