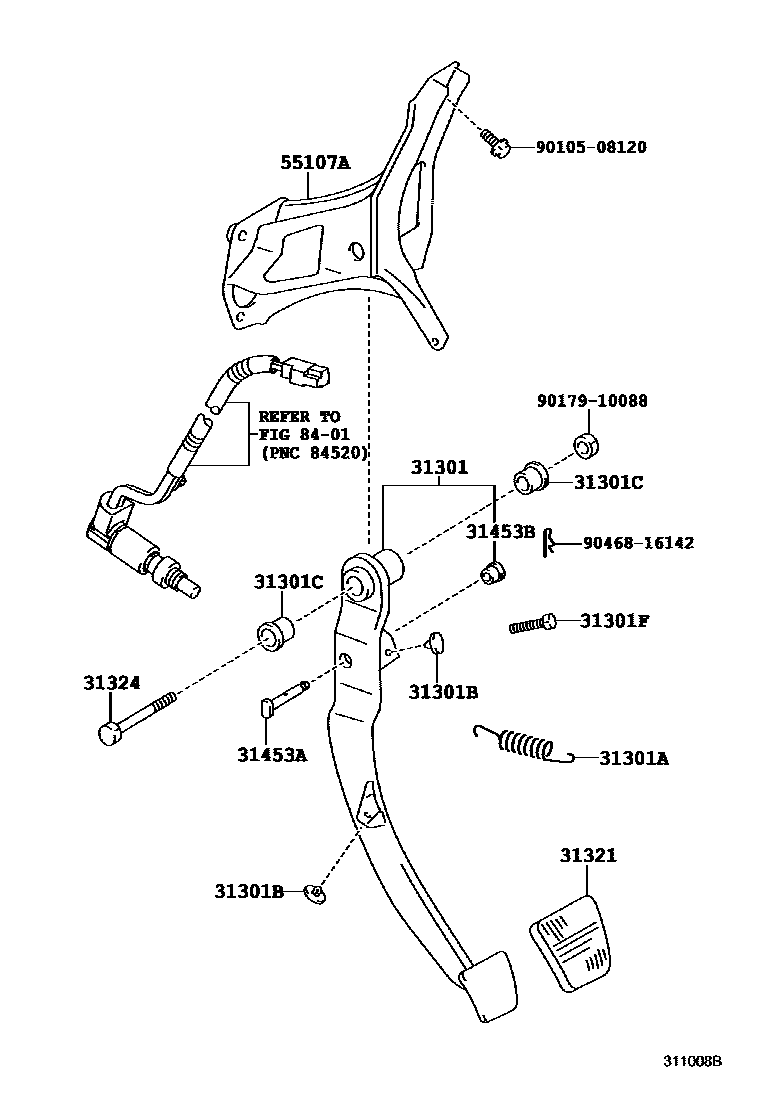

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-52030iNCP50,55..5F..DXJ200206-200304

main31301-52090iNLP51..DXJ200206-200304

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iNCP50,51,55,58,59,NLP51..5F..(DX,F,GL,U,UL)200206

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036×2iNCP50,55,NLP51..5F..DXJ200206-200304

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iNCP50,55,NLP51..5F..DXJ200206-200304

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iNCP50,51,55,58,59,NLP51..5F..(DX,F,GL,U,UL)200206

31321PAD, CLUTCH PEDAL

main31321-52010iNCP50,55,NLP51..5F..DXJ200206-200304

31324SHAFT, CLUTCH PEDAL

main90109-10167iNCP50,55,NLP51..5F..DXJ200206-200304

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08243iNCP50,55,NLP51..5F..DXJ200206-200304

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iNCP50,55,NLP51..5F..DXJ200206-200304

main90386-08033iNCP50,51,55,58,59,NLP51..5F200701

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-52090iNCP50,51,55,58,59..5F200206-201409

main55107-52100iNLP51200206-200708

8401

9010508120

main90105-08120

9017910088

main90179-10088

9046816142

main90468-16142

14 parts on this diagram · 3 diagrams in section
