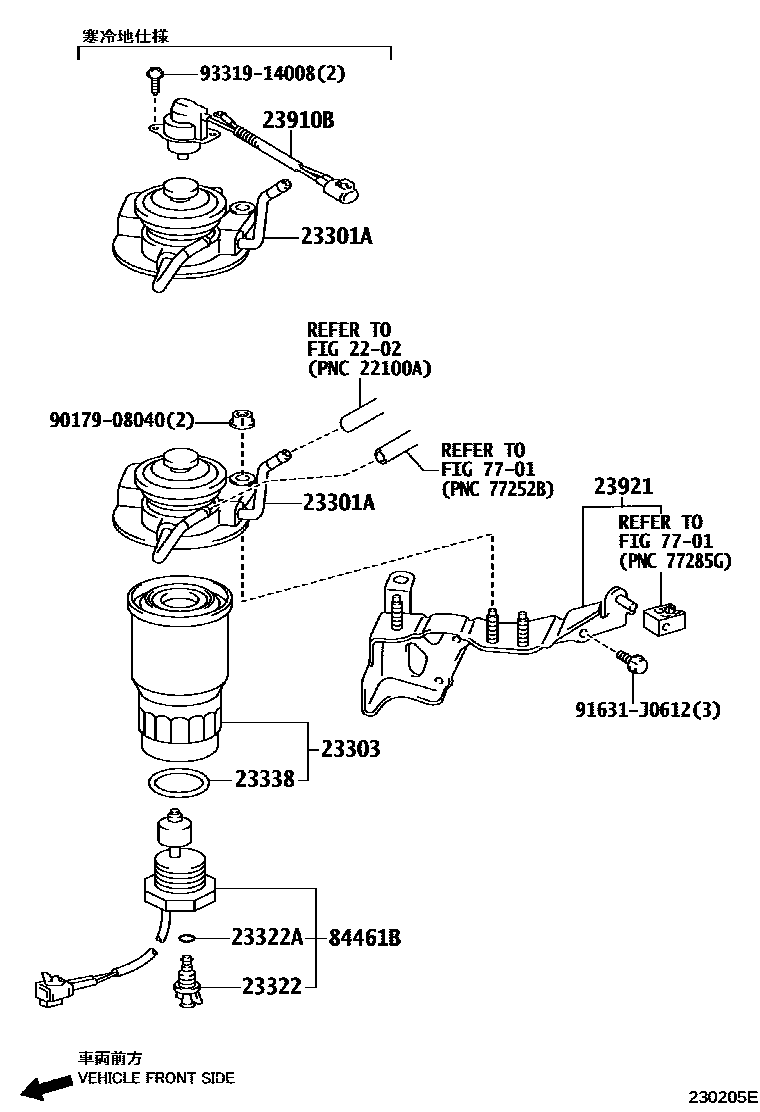

FUEL FILTER

2202

23301ACAP ASSY, FUEL FILTER

main23380-33020i1NDTV..NLP51..DX,GL,U,UL200206-200708

sub23380-33021

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-33010i1NDTV..NLP51..DXJ200206-200708

sub23390-33030

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i1NDTV..NLP51200206-200708

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1NDTV..NLP51200206-200708

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1NDTV..NLP51..DXJ200206-200708

23910BHEATER ASSY, FUEL

main23910-54100i1NDTV..NLP51..DXJ200206-200304

23921SUPPORT, FUEL FILTER

main23904-33010i1NDTV..NLP51..DXJ200206-200708

7701

84461BSWITCH, LEVEL WARNING

main84461-28040iNLP51200206-200708

sub84461-28041

9017908040

main90179-08040

91631J0612

main91631-J0612

9331914008

main93319-14008

13 parts on this diagram · 1 diagram in section
