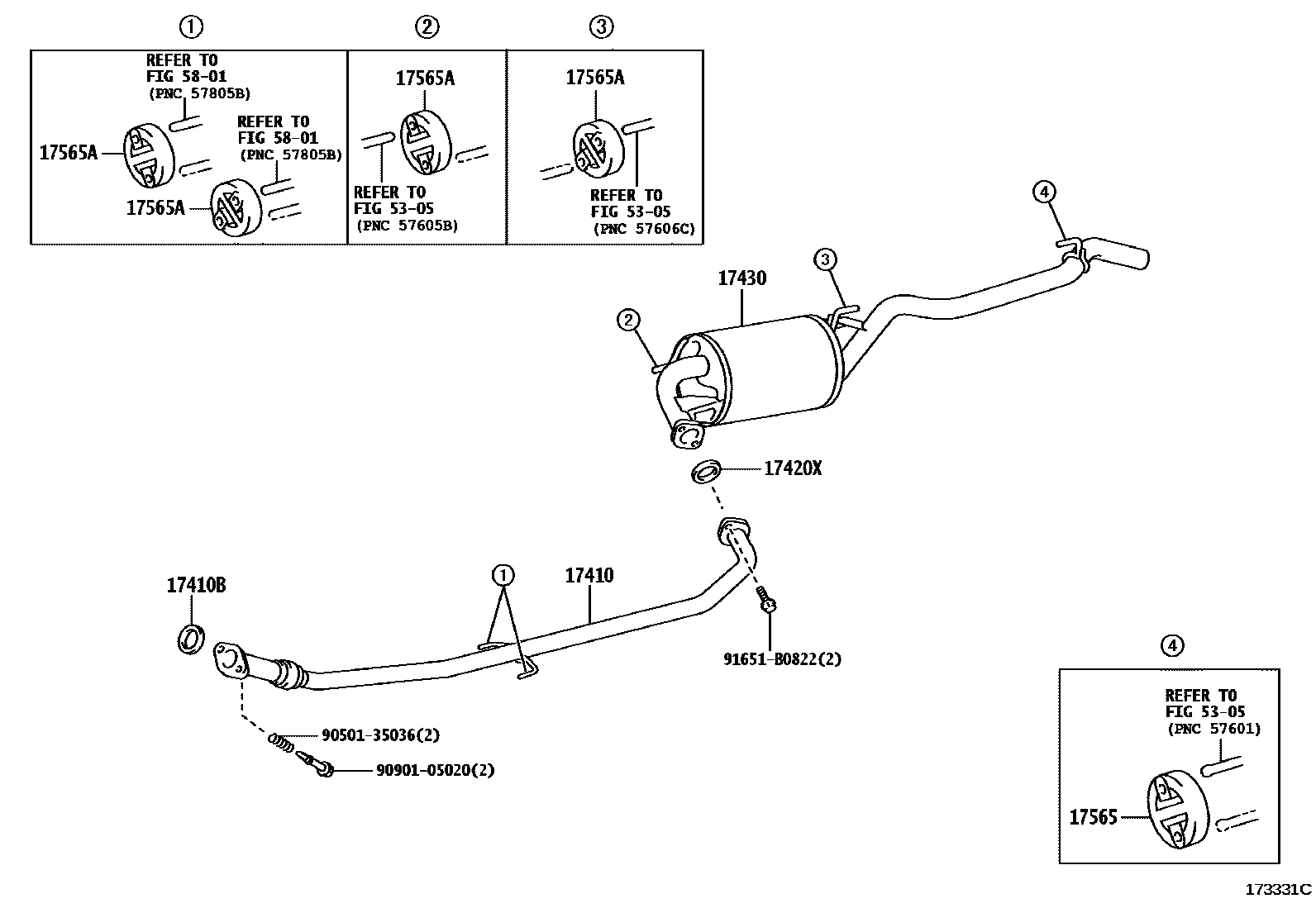

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-21390i1NZFE,2NZFE..NCP50,51,58200206-201003

sub17410-21B50

main17410-21400i1NZFE..NCP55,59200206-200611

sub17410-21401

main17410-21401i1NZFE..NCP55,59200612-201006

main17410-21460i1NZFNE..NCP52200304-201002

sub17410-21461

main17410-21461i1NZFNE..NCP52201003

main17410-21A30i1NZFE,2NZFE..NCP50,51,58201006-201205

main17410-21A31i1NZFE,2NZFE..NCP50,51,58201205

main17410-21A40i1NZFE..NCP55,59201006-201007

sub17410-21B90

main17410-21B50i1NZFE,2NZFE..NCP50,51,58201003-201006

main17410-21B90i1NZFE..NCP55,59201008

main17410-33110i1NDTV..NLP51200206-200708

17410BGASKET, EXHAUST PIPE

main17451-21030i1NZ#,1NDTV,2NZFE..NCP5#,NLP51200206

17420PIPE ASSY, EXHAUST, CENTER

main17420-21100i1NZFE..NCP55,59200206-201006

main17420-21140i1NZFNE..NCP52200304-200611

sub17420-21141

main17420-21141i1NZFNE..NCP52200612

main17420-21230i1NZFE..NCP55,59201006

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06039i1NZ#,1NDTV..NCP52,55,59,NLP51200206

17430PIPE ASSY, EXHAUST, TAIL

main17430-21290i1NZFE,2NZFE..NCP50,51,58..PROB200206-201002

sub17430-21291

main17430-21291i1NZFE,2NZFE..NCP50,51,58..PROB201003

main17430-21300i1NZFE..NCP55,59..PROB200206-201002

sub17430-21301

main17430-21301i1NZFE..NCP55,59..PROB201003

main17430-21310i1NZFE..NCP51,58..SUCD200206-201002

sub17430-21311

main17430-21311i1NZFE..NCP51,58..SUCD201003

main17430-21320i1NZFE..NCP55,59..SUCD200206-201002

sub17430-21321

main17430-21321i1NZFE..NCP55,59..SUCD201003

main17430-21390i1NZFNE..NCP52200304-201002

sub17430-21391

main17430-21391i1NZFNE..NCP52201003

main17430-33050i1NDTV..NLP51..PROB200206-200708

main17430-33060i1NDTV..NLP51..SUCD200206-200708

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-31040i1NZFE,2NZFE..NCP50,51,55,58,59201006

main17565-74290i1NZFE,1NDTV,2NZFE..NCP50,51,55,58,59,NLP51200206-201005

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-11160i1NZFE,1NDTV,2NZFE..NCP50,51,55,58,59,NLP51200206-201005

main17565-22030i1NZFE,2NZFE..NCP50,51,55,58,59201006

main17565-74280i1NZFNE..NCP52200304

main17565-74320i1NZFNE..NCP52200304

5305

5801

9050135036

main90501-35036

9090105020

main90901-05020

91651B0822

main91651-B0822

12 parts on this diagram · 4 diagrams in section
