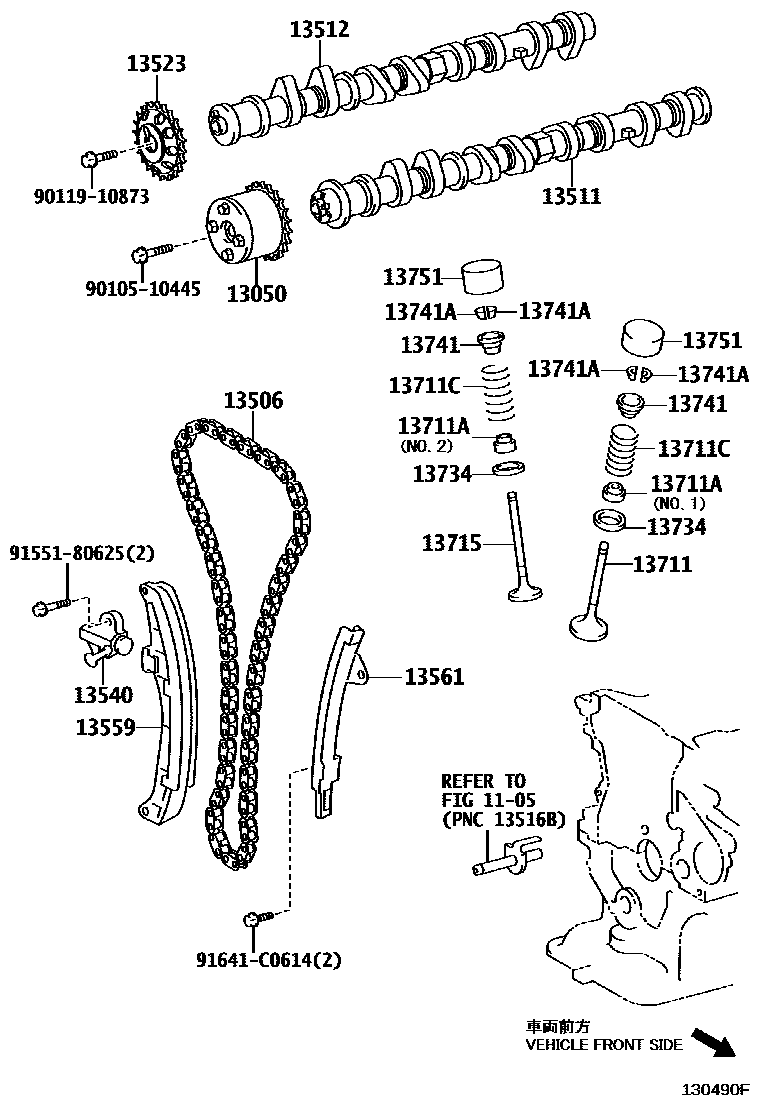

CAMSHAFT & VALVE

0001 1 0002 1

1105

13050GEAR ASSY, CAMSHAFT TIMING

main13050-21040i1NZ#,2NZFE..NCP5#200206-200602

main13050-21041i1NZ#,2NZFE..NCP5#200602

13506CHAIN SUB-ASSY

main13506-21020i1NZ#..NCP51,52,55,58,59200206-201110

sub13506-40010

main13506-21030i2NZFE..NCP50200206

main13506-21050i1NZ#..NCP51,52,55,58,59201110

main13506-33020i1NDTV..NLP51200206-200708

13511CAMSHAFT

main13501-21030i1NZ#,2NZFE..NCP5#200206

main13501-33010i1NDTV..NLP51200206-200708

13512CAMSHAFT, NO.2

main13502-21020i2NZFE..NCP50200206-200401

main13502-21021i2NZFE..NCP50200401

main13502-21030i1NZ#..NCP51,52,55,58,59200206-200401

main13502-21031i1NZ#..NCP51,52,55,58,59200401

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-21020i1NZ#,2NZFE..NCP5#200206-200401

main13523-22020i1NZ#,2NZFE..NCP5#200401

main13523-33020i1NDTV..NLP51200206-200410

sub90105-08434

main13523-33021i1NDTV..NLP51200410-200708

13540TENSIONER ASSY, CHAIN, NO.1

main13540-21010i1NZ#,2NZFE..NCP5#200206-200308

main13540-21020i1NZ#,2NZFE..NCP5#200308

main13540-33020i1NDTV..NLP51200206-200708

13559SLIPPER, CHAIN TENSIONER

main13559-21010i1NZ#,2NZFE..NCP5#200206-201311

main13559-21030i1NZ#,2NZFE..NCP5#201311

sub13559-21031

main13559-33010i1NDTV..NLP51200206-200708

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-21010i1NZ#,2NZFE..NCP5#200206-201311

main13561-21040i1NZ#,2NZFE..NCP5#201311

main13561-33020i1NDTV..NLP51200206-200708

13711VALVE, INTAKE

main13711-21010×8i1NZFE,2NZFE..NCP50,51,55,58,59200206

main13711-21030×8i1NZFNE..NCP52200304

main13711-33030×4i1NDTV..NLP51200206-200708

sub13711-33031

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02092×8i1NZ#,2NZFE..NCP5#200206-201409

sub90913-02128

main90913-02093×8i1NZ#,2NZFE..NCP5#200206-201409

main90913-02121×8i1NDTV..NLP51200206-200708

13711CSPRING, COMPRESSION(FOR OUTER)

main90501-27040×16i1NZ#,2NZFE..NCP5#201207

main90501-36006×8i1NDTV..NLP51200206-200708

main90905-01049×16i1NZ#,2NZFE..NCP5#200206-201207

13715VALVE, EXHAUST

main13715-21010×8i1NZFE,2NZFE..NCP50,51,55,58,59200206

main13715-21030×8i1NZFNE..NCP52200304

main13715-33040×4i1NDTV..NLP51200206-200708

sub13715-33041

13734SEAT, VALVE SPRING

main13734-74010×16i1NZ#,2NZFE..NCP5#200206

13741RETAINER, VALVE SPRING

main13741-10020×8i1NDTV..NLP51200206-200708

main13741-22021×16i1NZ#,2NZFE..NCP5#200206

13741ALOCK, VALVE SPRING RETAINER

main90913-03021×16i1NDTV..NLP51200206-200708

main90913-03031×32i1NZ#,2NZFE..NCP5#200206

13751LIFTER, VALVE

main13751-46030i1NZ#,2NZFE..NCP5#200206

main13751-46040i1NZ#,2NZFE..NCP5#200206

main13751-46050i1NZ#,2NZFE..NCP5#200206

main13751-46060i1NZ#,2NZFE..NCP5#200206

main13751-46070i1NZ#,2NZFE..NCP5#200206

main13751-46080i1NZ#,2NZFE..NCP5#200206

main13751-46090i1NZ#,2NZFE..NCP5#200206

main13751-46100i1NZ#,2NZFE..NCP5#200206

main13751-46110i1NZ#,2NZFE..NCP5#200206

main13751-46120i1NZ#,2NZFE..NCP5#200206

main13751-46130i1NZ#,2NZFE..NCP5#200206

main13751-46140i1NZ#,2NZFE..NCP5#200206

main13751-46150i1NZ#,2NZFE..NCP5#200206

main13751-46160i1NZ#,2NZFE..NCP5#200206

main13751-46170i1NZ#,2NZFE..NCP5#200206

main13751-46180i1NZ#,2NZFE..NCP5#200206

main13751-46190i1NZ#,2NZFE..NCP5#200206

main13751-46200i1NZ#,2NZFE..NCP5#200206

main13751-46210i1NZ#,2NZFE..NCP5#200206

main13751-46220i1NZ#,2NZFE..NCP5#200206

main13751-46230i1NZ#,2NZFE..NCP5#200206

main13751-46240i1NZ#,2NZFE..NCP5#200206

main13751-46250i1NZ#,2NZFE..NCP5#200206

main13751-46260i1NZ#,2NZFE..NCP5#200206

main13751-46270i1NZ#,2NZFE..NCP5#200206

main13751-46280i1NZ#,2NZFE..NCP5#200206

main13751-46290i1NZ#,2NZFE..NCP5#200206

main13751-46300i1NZ#,2NZFE..NCP5#200206

main13751-46310i1NZ#,2NZFE..NCP5#200206

main13751-46320i1NZ#,2NZFE..NCP5#200206

main13751-46330i1NZ#,2NZFE..NCP5#200206

main13751-46340i1NZ#,2NZFE..NCP5#200206

main13751-46350i1NZ#,2NZFE..NCP5#200206

main13751-46360i1NZ#,2NZFE..NCP5#200206

main13751-46370i1NZ#,2NZFE..NCP5#200206

9010510445

main90105-10445

9011910873

main90119-10873

9155180625

main91551-80625

91641C0614

main91641-C0614

21 parts on this diagram · 2 diagrams in section
